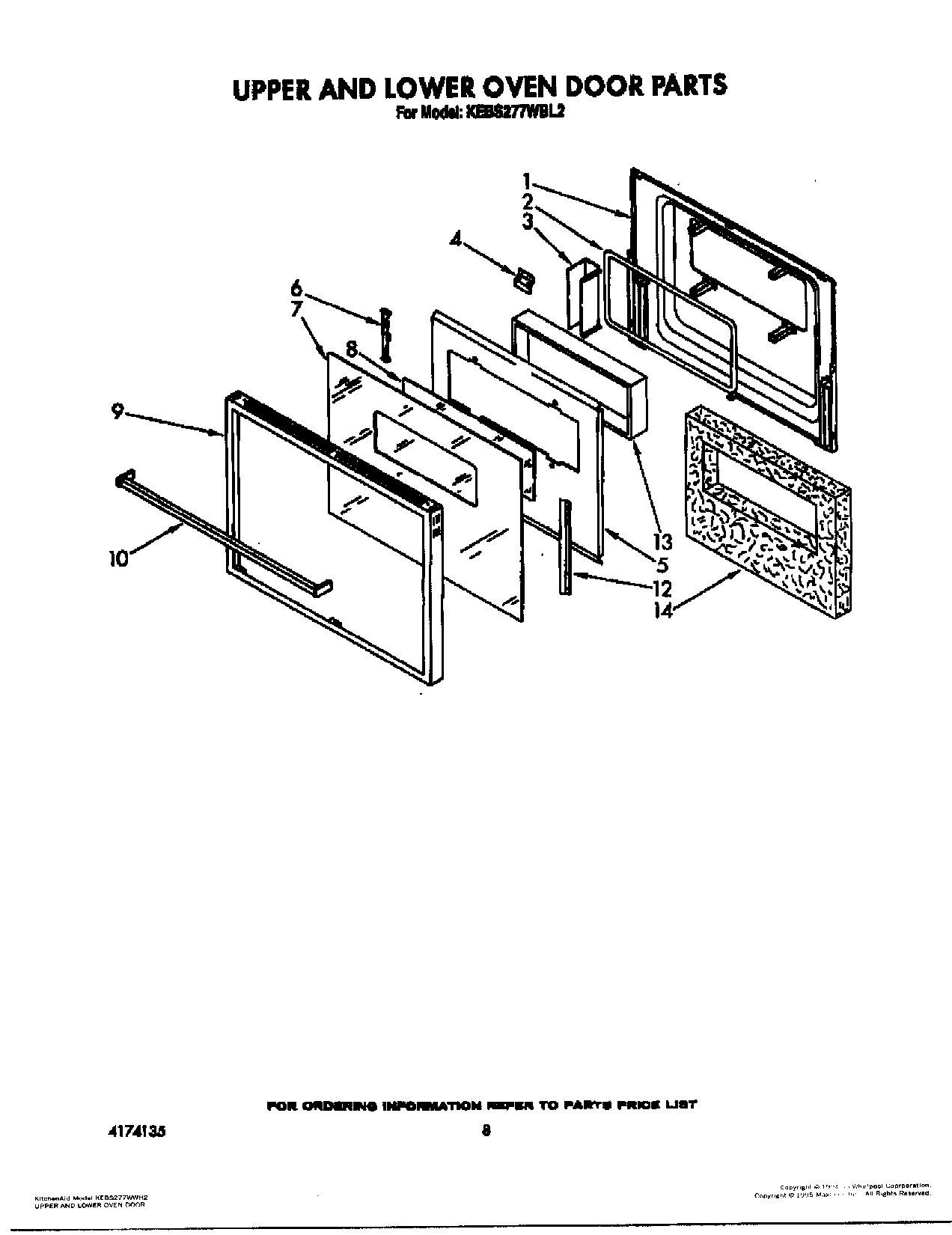

KEBS277WBL2 06 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Vent, Lower Trim (Screw (2))
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door (Almond)
7	Glass, Door (White)
7	Glass, Door
8	Glass, Reflective
9	Frame, Door (White)
9	Frame, Door (Almond)
9	Frame, Door
10	Handle, Door (White)
10	Handle, Door
10	Handle, Door (Screw)
10	Handle, Door (Almond)
12	Retainer, Glass
12	Screw (4)
13	Window Package
14	Insulation, Door
