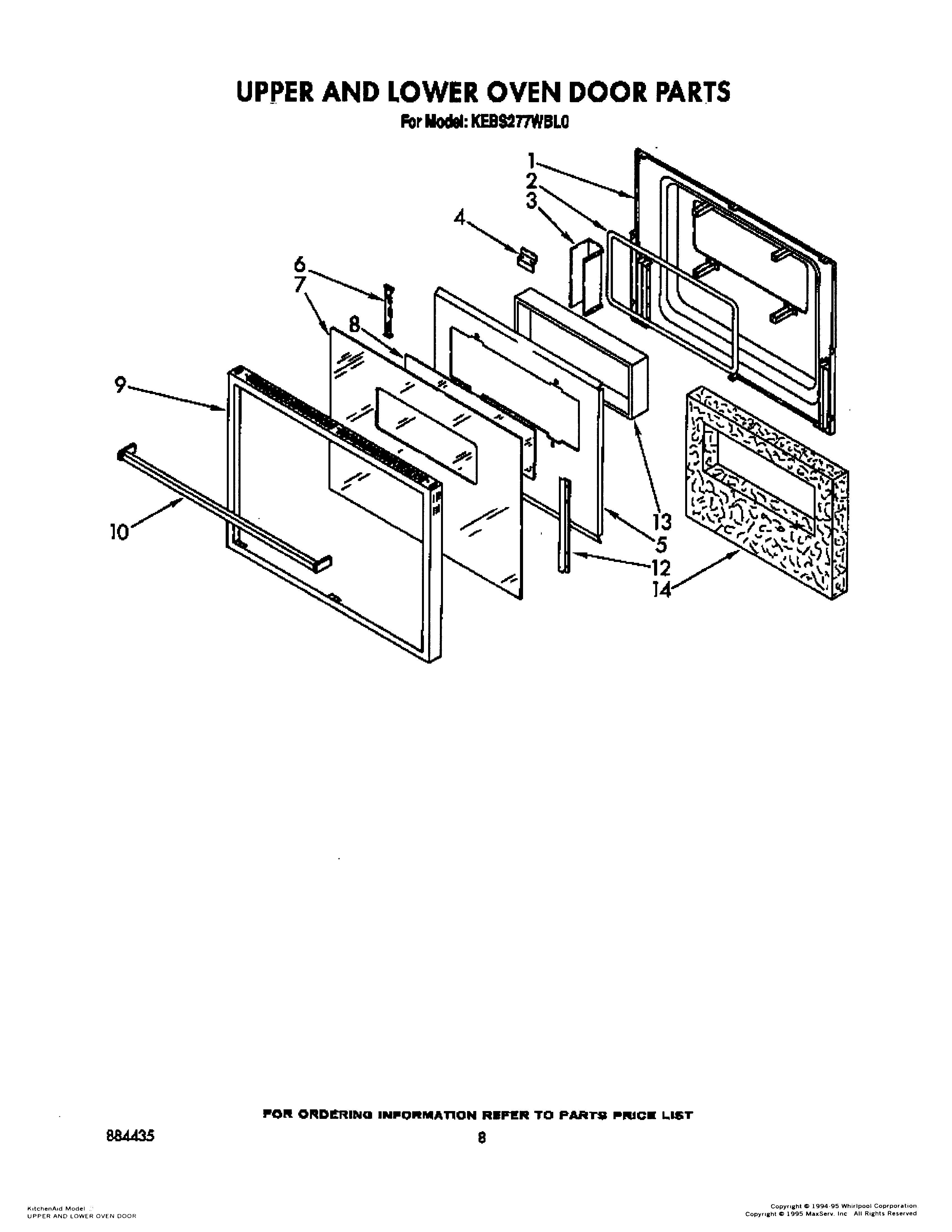

KEBS277WWH0 06 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door (Almond)
7Glass, Door
7Glass, Door (White)
8Glass, Reflective
9Frame, Door (Almond)
9Frame, Door (White)
9Frame, Door
10Handle, Door (White)
10Handle, Door (Almond)
10Handle, Door
10Handle, Door (Screw)
12Retainer, Glass
12Screw (6)
13Window Package
14Insulation, Door
