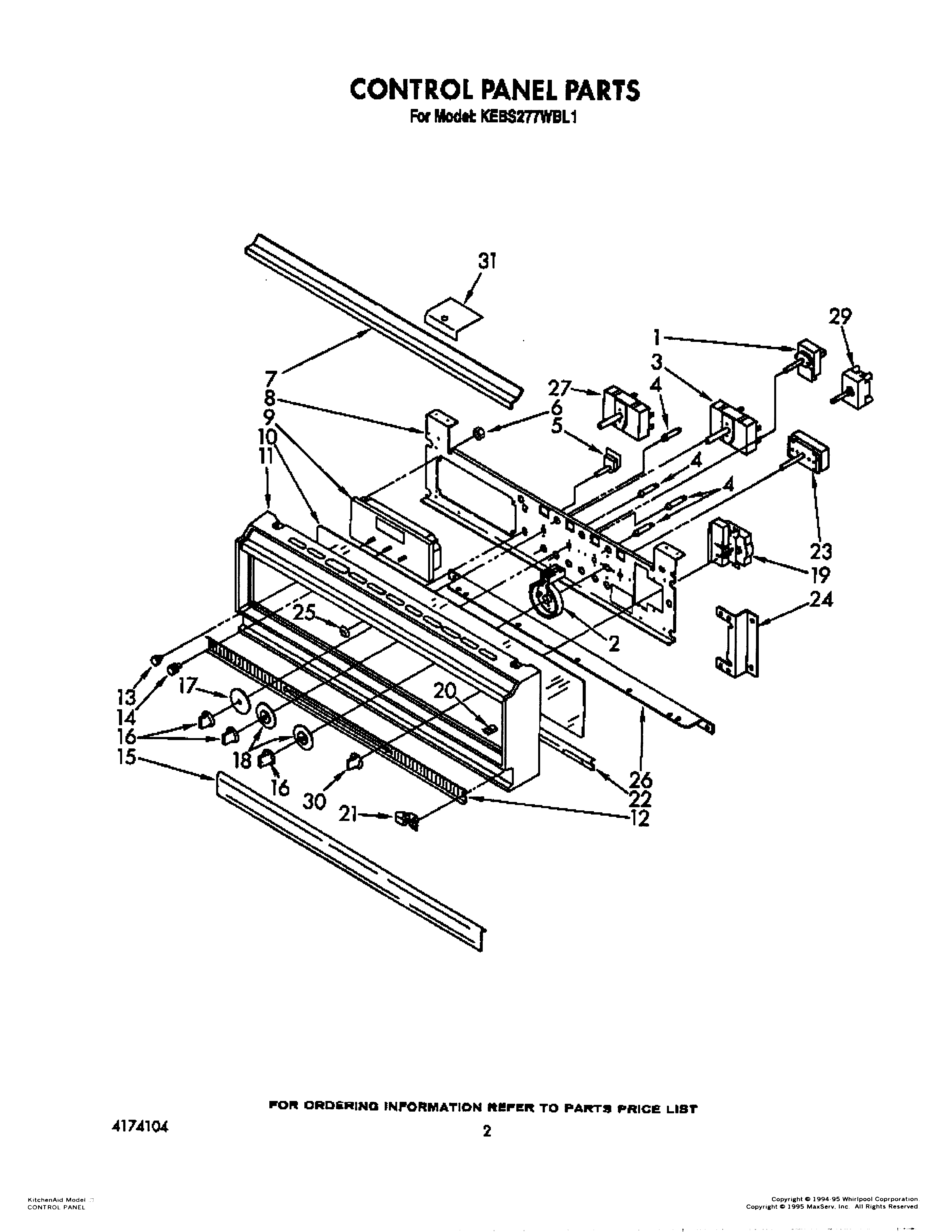

KEBS277WWH1 02 – CONTROL PANEL

Products

Position	Product
	WPL LIT3177060
	WPL LIT4174104
	WPL LIT3178195
	WPL LIT3178200
1	Thermostat, upper
2	Backlight (2)
3	Switch, Selector
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
5	Switch, Oven Light (White)
6	Nut, Timer (4)
7	Insert, Top (Almond)
7	Insert, Top (White)
7	Insert, Top (Black)
8	Bracket, Control
9	Clock
10	Glass, Control Panel (White)
10	Glass, Control Panel (Almond)
10	Glass, Control Panel (Black)
11	Frame, Control Panel
11	Frame, Control Panel (Almond)
11	Frame, Control Panel (White)
12	Insert, Vent
13	Knob, Clock
13	Knob, Timer (2)
14	Knob, Clock (2)
14	Knob, Timer
15	Door, Latch Handle (Almond)
15	Screw (5)
15	Handle (Black)
15	White
16	Knob, Control
17	Disc, Selector (Lower)
17	Disc, Selector (Upper)
18	Disc, Thermostat (Self Clean) (2)
19	Meat Probe Indicator Assy.
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Screw (6)
22	Retainer
23	Thermostat, Upper
24	Bracket, Control Panel
25	Bezel, Switch (White)
25	Bezel, Oven Light Switch
26	WP3177991 Whirlpool Screw
26	Support, Frame
27	Screw,
27	Switch, Selector
27	WP486579 Whirlpool Air Conditioner Screw
29	Switch, Rotory
30	Knob
31	Clip, Spacer
31	WP90767 Whirlpool Screw
