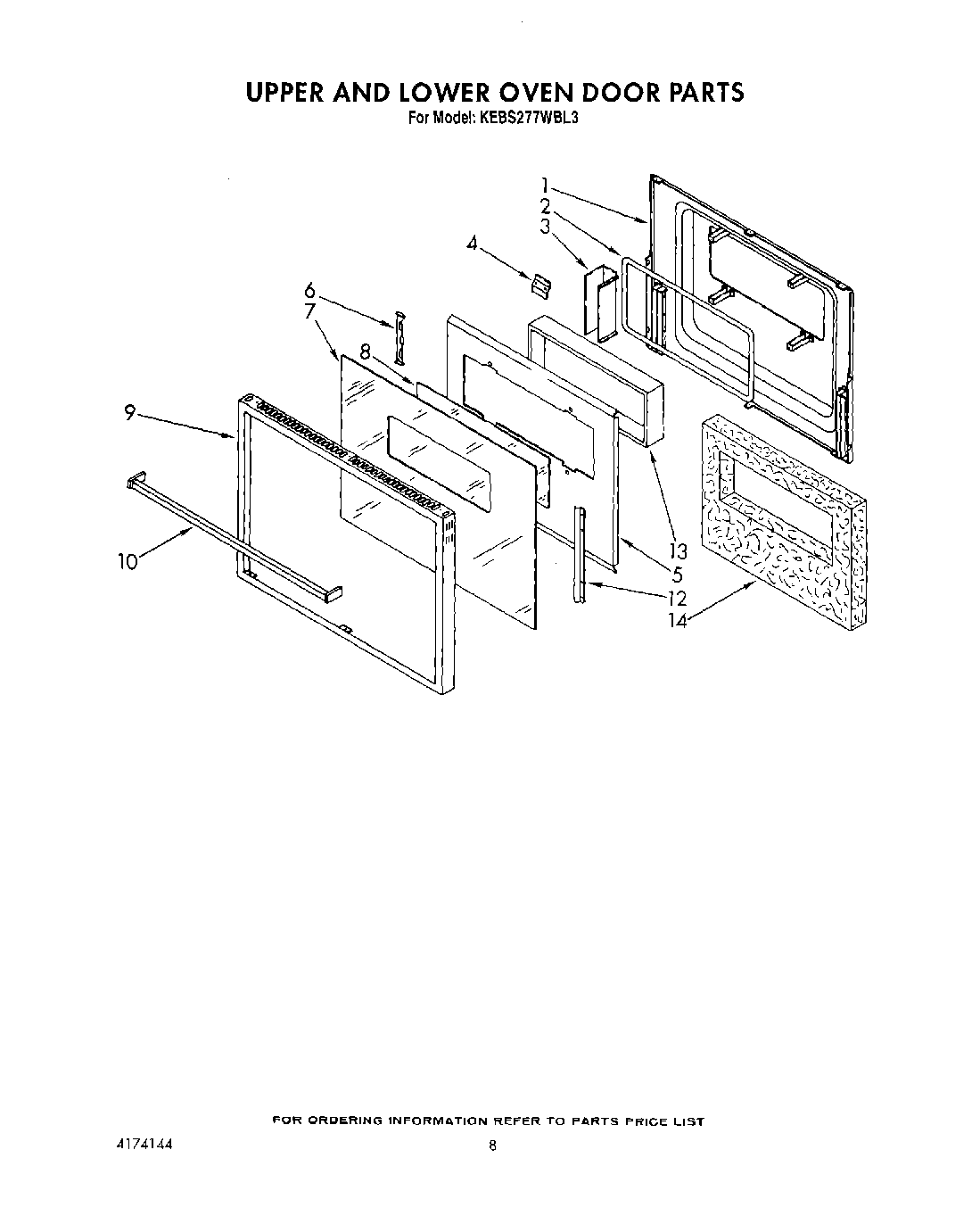

KEBS277WWH3 06 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Vent, Lower Trim (Screw (2))
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door (Almond)
7Glass, Door (White)
7Glass, Door
8Glass, Reflective
9Frame, Door (White)
9Frame, Door (Almond)
9Frame, Door
10Handle, Door (White)
10Handle, Door
10Handle, Door (Screw)
10Handle, Door (Almond)
12Screw (6)
12Retainer, Glass
13Window Package
14Insulation, Door
