KEBS277XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

KEBS277XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBS277XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	WPL 591014
	WPL 832985
	WPL LIT3178195
	Cookbook T/C Oven
	WPL LIT3178200
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	WPL 350806
	1
	Wire (14 Ga. 200 c Brown)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Orange)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 150 c Yellow)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT3181352
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	WPL LIT4174162
	WPL 799832
	350942 Whirlpool Spray Paint
	WPL 72112
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	350930 Whirlpool White Spray Paint

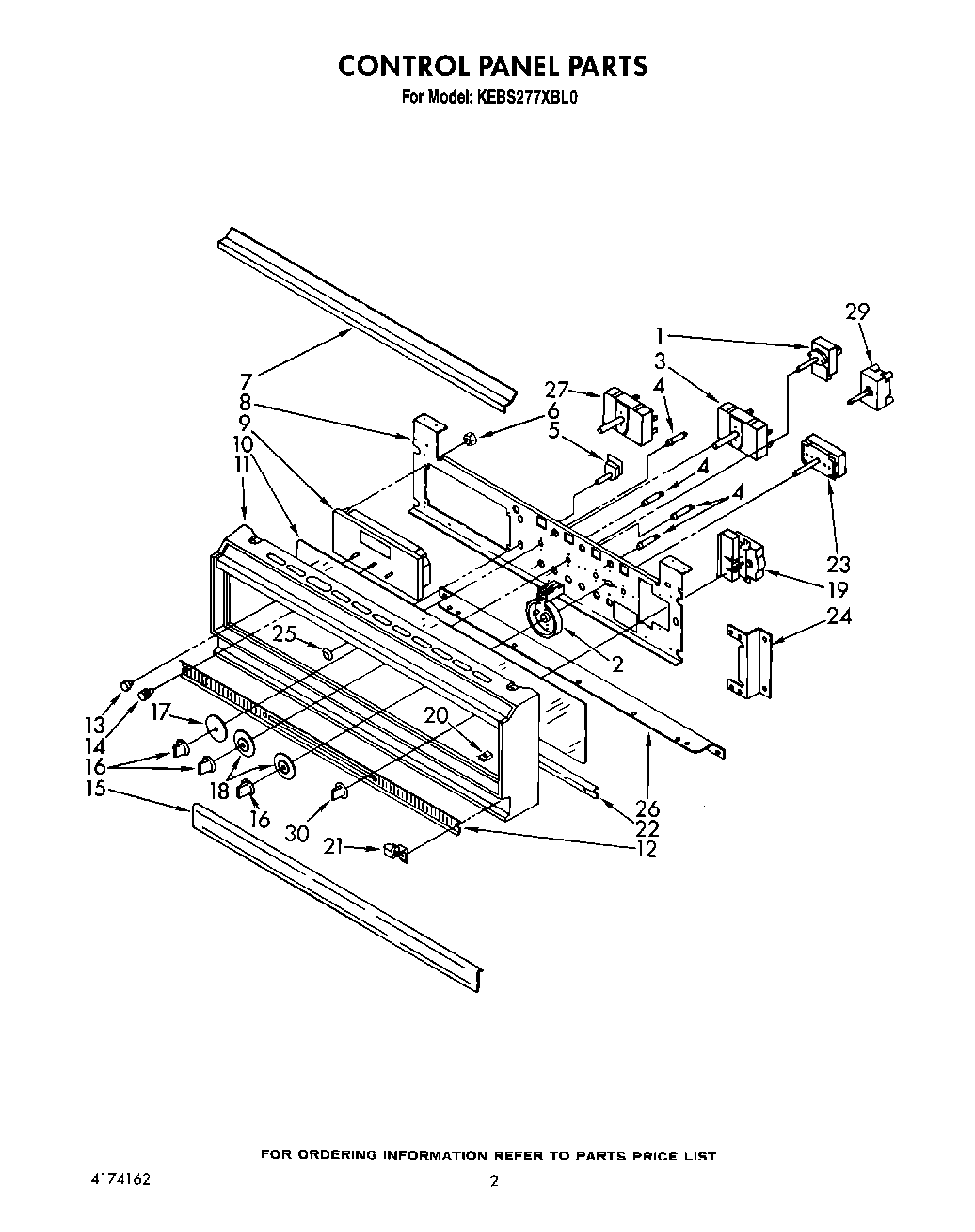

1	Thermostat, upper
2	Backlight (2)
3	Switch, Selector
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
5	Switch, Oven Light (White)
6	Nut, Timer (4)
7	Insert, Top (Black)
7	Insert, Top (Almond)
7	Insert, Top (White)
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel (Almond)
10	Glass, Control Panel (Black)
10	Glass, Control Panel (White)
11	Frame, Control Panel (Black)
11	Frame, Control Panel (White)
11	Frame, Control Panel (Almond)
12	Insert, Vent
13	Knob, Timer (2)
14	Knob, Timer
15	Door, Latch Handle (Almond)
15	Handle (Black)
15	White
15	Screw (5)
16	Knob, Control
17	Disc, Selector (Lower)
17	Disc, Selector
18	Disc, Thermostat (Self Clean) (2)
19	Indicator, Light Meat Probe
20	nut (3)
21	Hinge, Door (2)
21	Door, Latch Handle (Screw (2))
22	Screw (6)
22	Retainer
23	Thermostat, Upper
24	Bracket, Control Panel
25	Bezel, Switch (White)
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
27	WP486579 Whirlpool Air Conditioner Screw
27	Switch, Selector
27	Screw,
29	Switch, Rotory
30	Knob
30	Clip, Spacer
