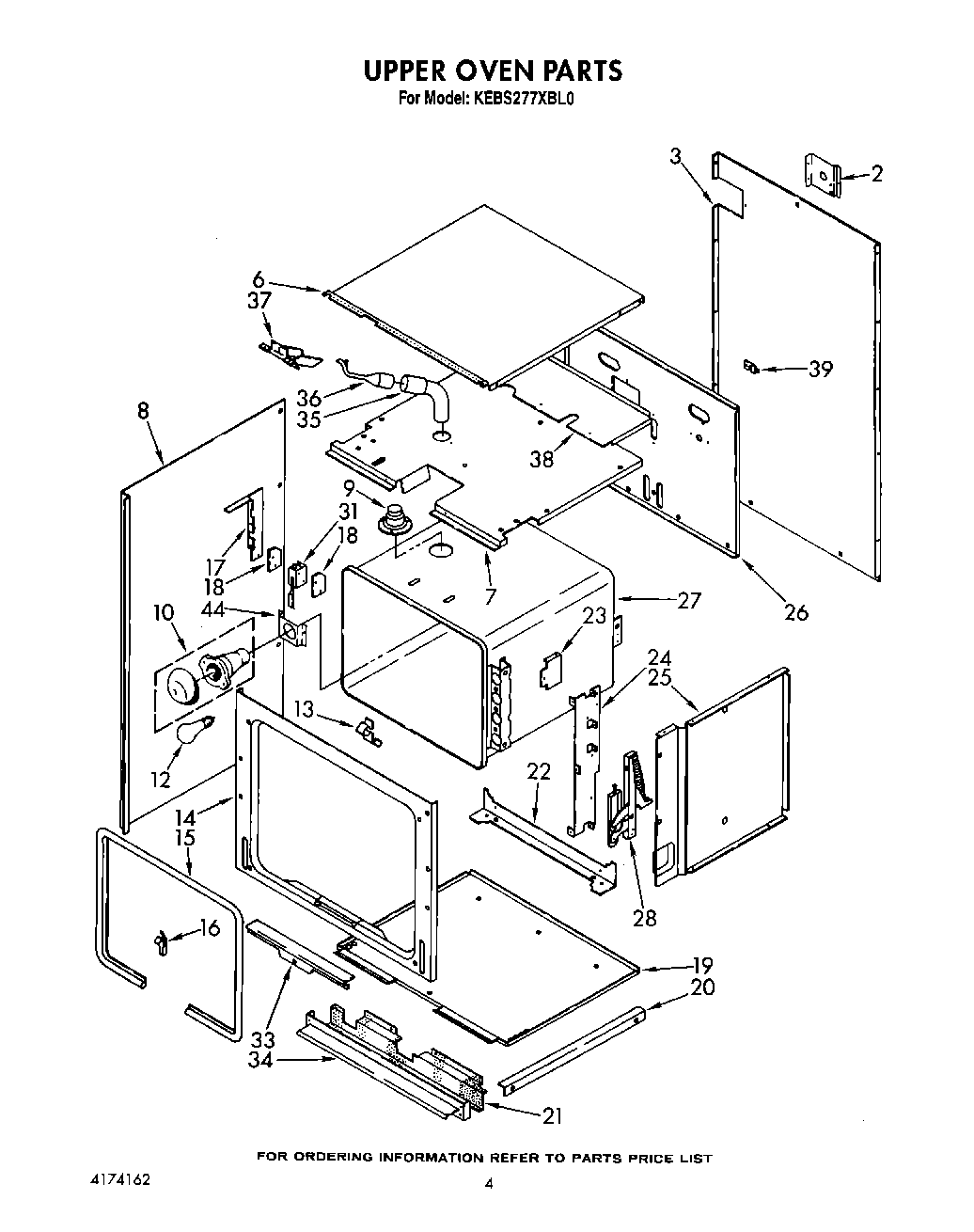

KEBS277XBL0 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screen, Wire Mesh
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	SCREW
33	Retainer, Seal
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (White or Almond Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
38	WP3177991 Whirlpool Screw
38	Extension, Shelf
39	Shoulder Screw
39	Cover, Cap Tube
39	Screw
44	Insulation, Oven
44	WP90767 Whirlpool Screw
44	Retainer, Insulation
