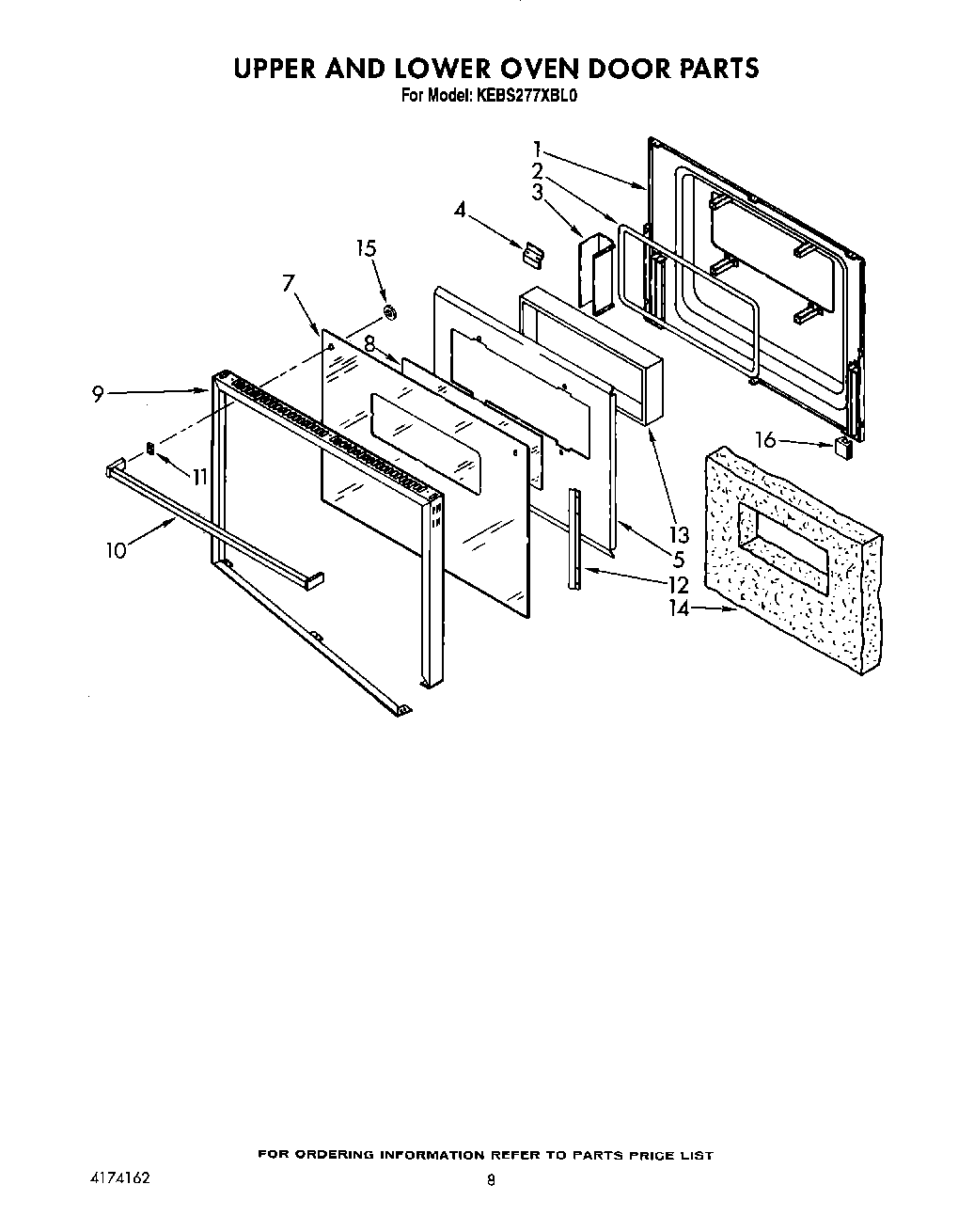

KEBS277XBL0 06 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
7Glass, Door (Black)
7Glass, Door (Almond)
7Glass, Door (White)
8Glass, Reflective
9Frame, Door
10Handle, Door (White)
10Handle, Door (Black)
10Handle, Door (Almond)
11Screw
11Spacer (2)
11Spacer (2) (Almond)
11Spacer (2) (White)
12Bracket, Glass Mtg.
12WP90767 Whirlpool Screw
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
