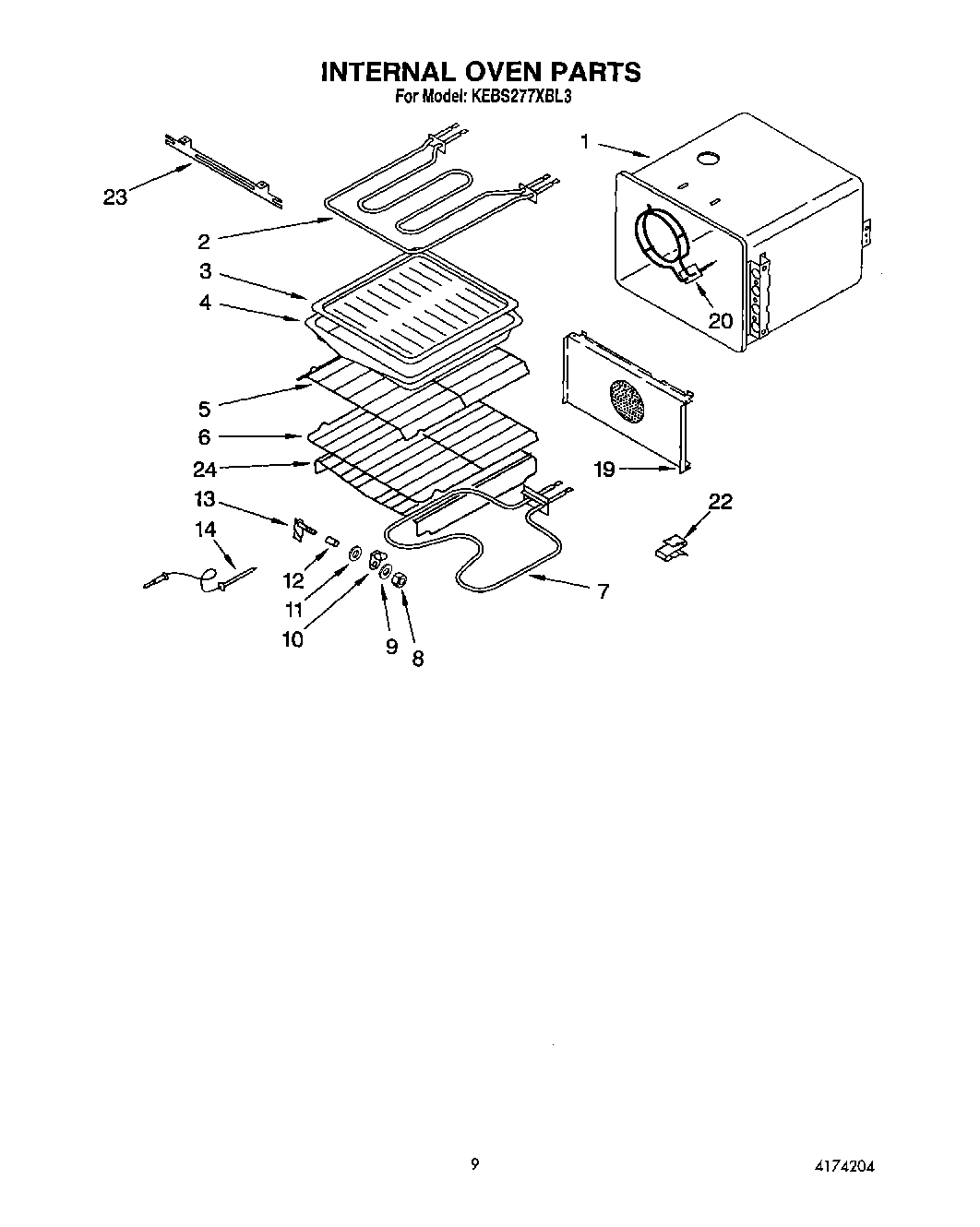

KEBS277XWH3 07 – INTERNAL OVEN

Products

Position	Product
1	Liner, Oven
1	Liner, Oven
2	Element, Broil
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Offset
6	Rack, Oven
7	WP661416 Whirlpool Bake Element
8	Lock-Nut, Cvr.Jack
9	Gasket, Meat Probe
10	Jack Cover
11	Washer
12	Spacer - Tubing
13	Receptacle, Lighted Probe
14	Meat Probe
19	Cover, Fan
20	Element, Convection
22	Clip, Tube
23	Bracket, Element
23	Screw (3)
24	Rack, Roasting
