KEBS277YAL0 03 – UPPER OVEN

KEBS277YAL0 03 – UPPER OVEN

Written by

in

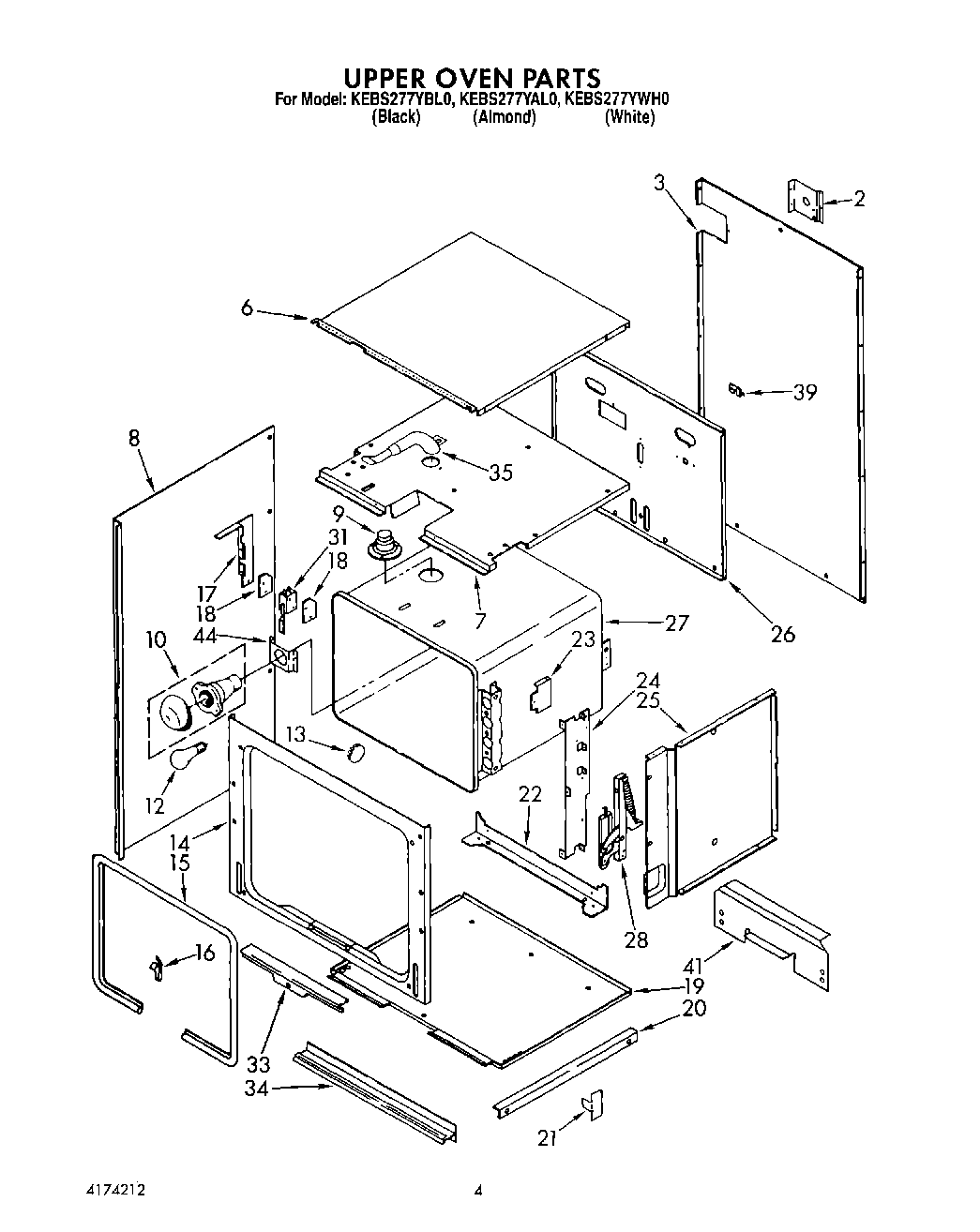

KEBS277YAL0 03 – UPPER OVEN

Products

PositionProduct
2Bracket, Conduit
3Cabinet, Back
6Cabinet, Top
7Module, Top
8Side, Cabinet (Left Hand)
8Side, Cabinet (R.H. & L.H.)
9Screw (3)
9Tube, Vent
10W11594027 Whirlpool Range Oven Light Socket
12RANGE ONLY 40W 120V APPL BULB
13Button, Plug
14Frame, Front
15Seal, Door
16Clip, Oven Seal
17Bracket, Switch
18Insulator, Switch
19Bottom, Modual
20Rail, Support (2)
21Screw
21Insert, Middle Vent Trim
22Support, Oven
23Screw (6)
23Shield, Radiation
24Bracket, Hinge
25Side, Module (R.H. & L.H.)
26Back, Module
27Liner, Oven
28Screw (4)
28Hinge, Door
31Switch, Door
31Nut (2)
31Screw (2)
33SCREW
33Retainer, Seal
34Vent, Lower Trim (Screw (4))
34Vent, Middle Trim (Black Model)
34Vent, Middle Trim (White or Almond Model)
34Vent, Lower Trim (Screw (2))
35Tube, Vent
35Screw
39Shoulder Screw
39Cover, Cap Tube
39Screw
41WPL 3183752
41WP3177991 Whirlpool Screw
44WP90767 Whirlpool Screw
44Insulation, Oven
44Insulation, Back
44Retainer, Insulation
