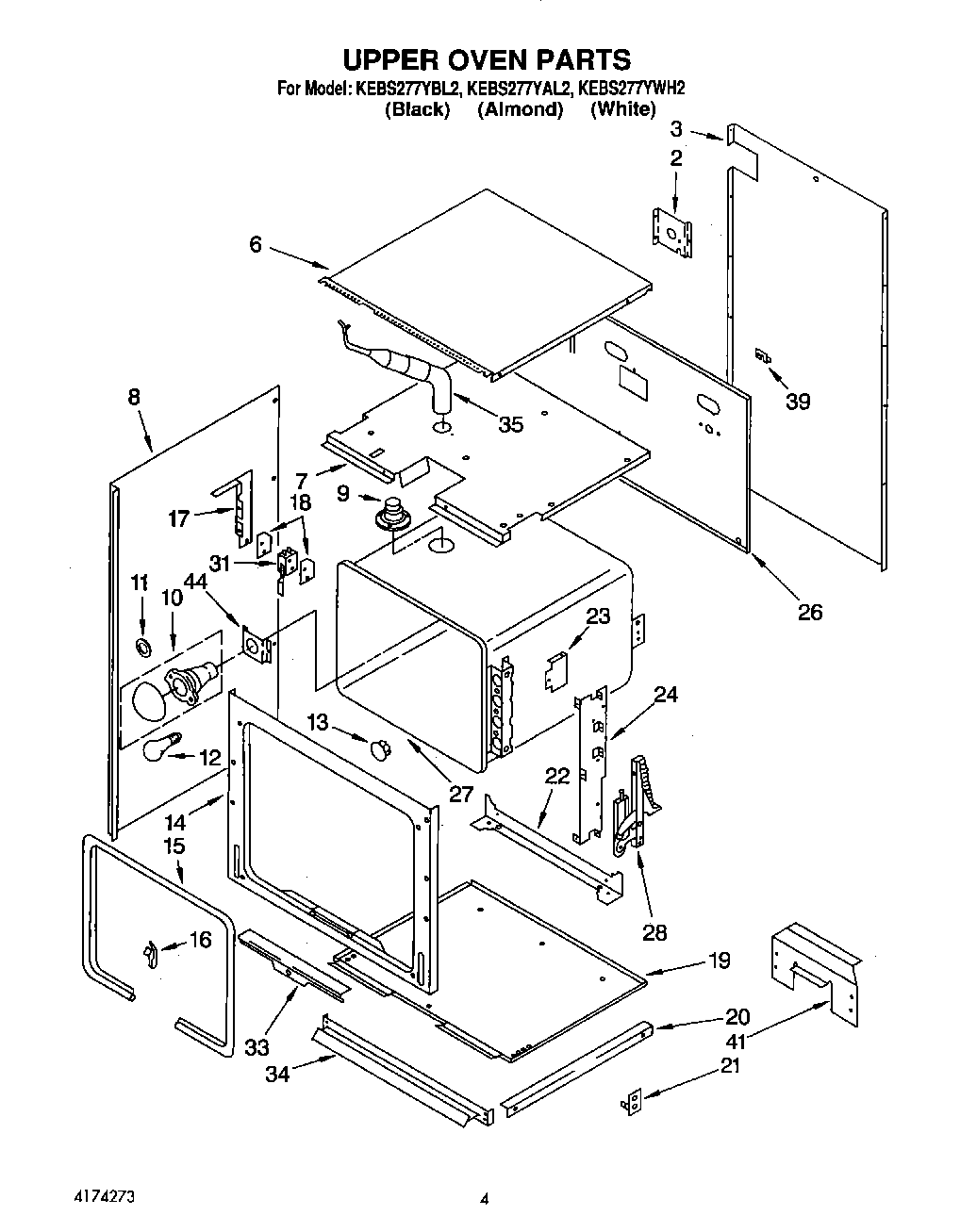

KEBS277YAL2 02 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	Button, Plug
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Insert, Middle Vent Trim
21	Screw
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	SCREW
33	Retainer, Seal
34	Vent, Middle Trim (Black Model)
34	Vent, Middle Trim (White or Almond Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
35	Tube, Vent
35	Screw
39	Cover, Cap Tube
39	Screw
39	Shoulder Screw
41	WPL 3183752
41	WP3177991 Whirlpool Screw
44	Insulation, Back
44	Screw
44	Insulation, Oven
44	Retainer, Insulation
