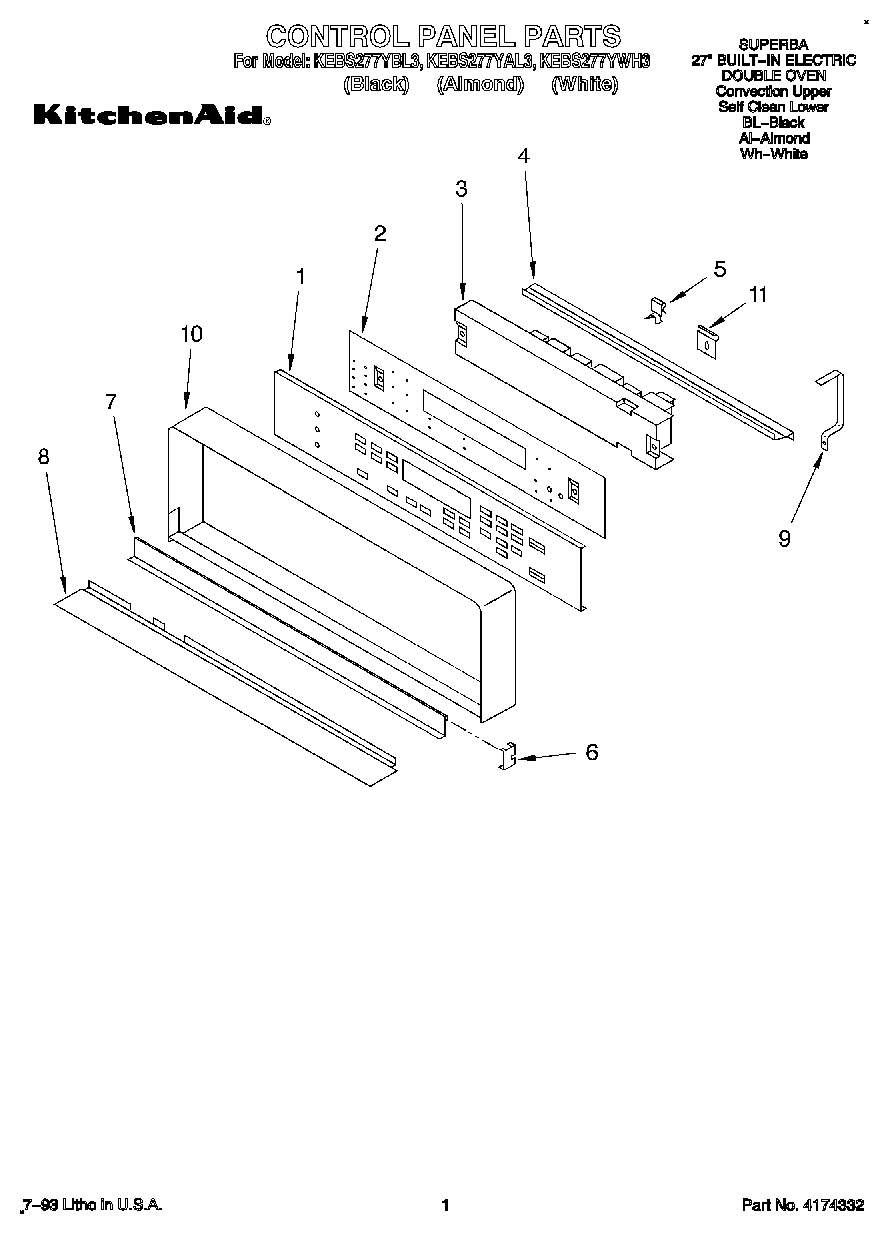

KEBS277YBL3 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Use & Care Guide
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	Installation Instructions
	WP482338 Whirlpool Refrigerator Adhesive
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Tech Sheet
	WPL 3171507
	Guide, Auto Set
	Cookbook T/C Oven
	WPL 591014
	WPL 350806
	1
	Wire (14 Ga. 200 c Brown)
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	WPL 72112
	Wire, 25“ Roll (White 14 GA.)
	350942 Whirlpool Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
1	Membrane, Switch (Almond)
1	Membrane, Switch (White)
1	Membrane, Switch (Black)
2	Bracket, Mounting Switch Membrane
3	Screw (2)
3	Microcomputer
4	Retainer, Bracket
5	Clip, Retainer (3)
6	Trim, Door (2)
7	Door, Latch Handle (White)
7	Door, Latch Handle (Screw (2))
7	Door, Latch Handle (Almond)
7	Door, Latch Handle (Black)
8	Trim, Panel
8	Screw
9	Bracket (2)
9	Screw (2)
10	Frame, Control Panel
11	Clip, Control Frame
