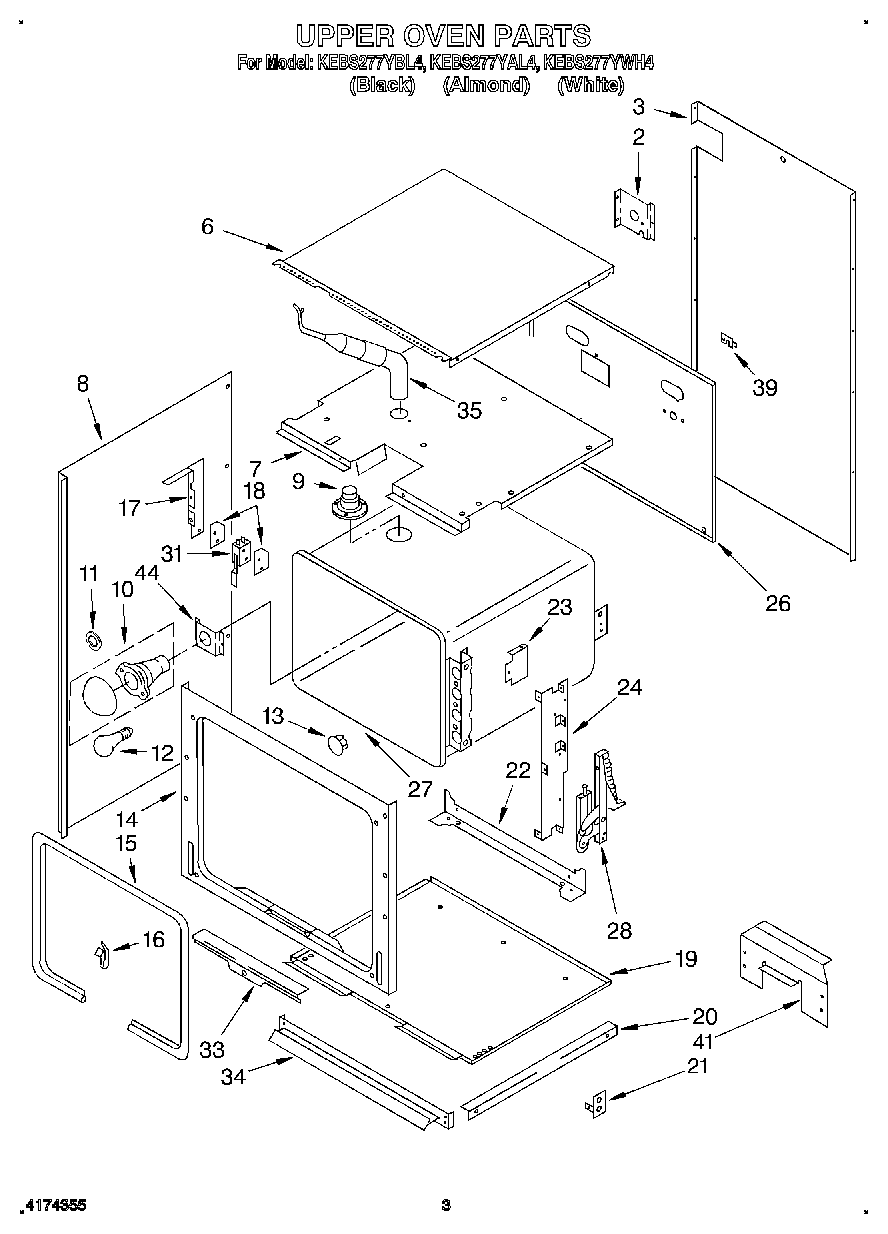

KEBS277YBL4 02 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	Button, Plug
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw
21	Insert, Middle Vent Trim
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	SCREW
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (White or Almond Model)
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
35	Screw
39	Cover, Cap Tube
39	Screw
41	WP3177991 Whirlpool Screw
41	WPL 3183752
44	Insulation, Back
44	Screw
44	Insulation, Oven
44	Retainer, Insulation
