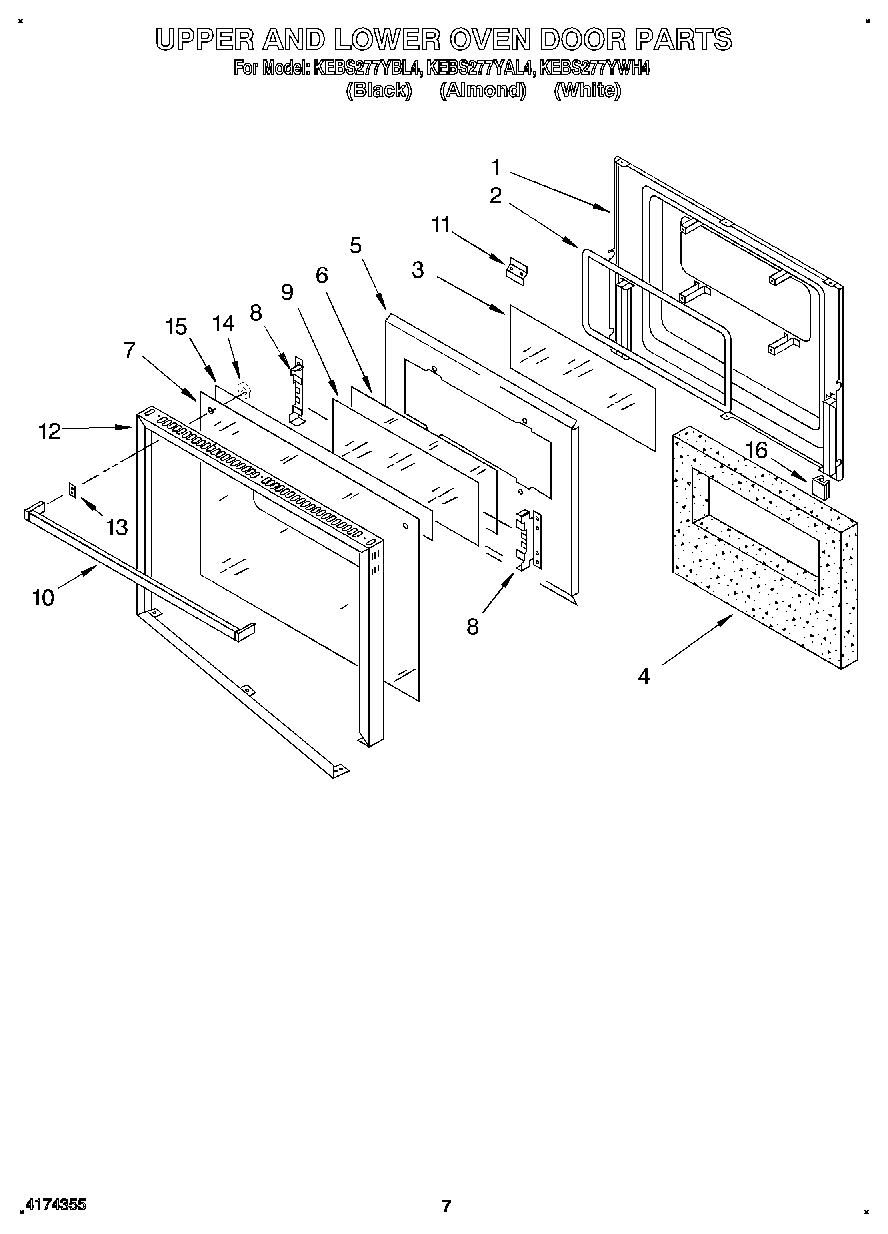

KEBS277YBL4 05 – UPPER AND LOWER OVEN DOOR

KEBS277YBL4 05 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS277YBL4 05 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
6	Glass, Reflective
7	Glass, Door (Black Model)
7	Glass, Door (White Model)
7	Glass, Door (Almond Model)
8	Retainer, Glass
9	Glass, Clear
10	Handle, Door (Almond Model)
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
11	Latch, Strike
12	Frame, Door
13	Spacer, Door Handle
14	Screw, 10-32 x 1/2
14	Screw
14	Bushing, Door Handle
15	Foil-Adhesive Backed
16	Bumper, Door Glass
