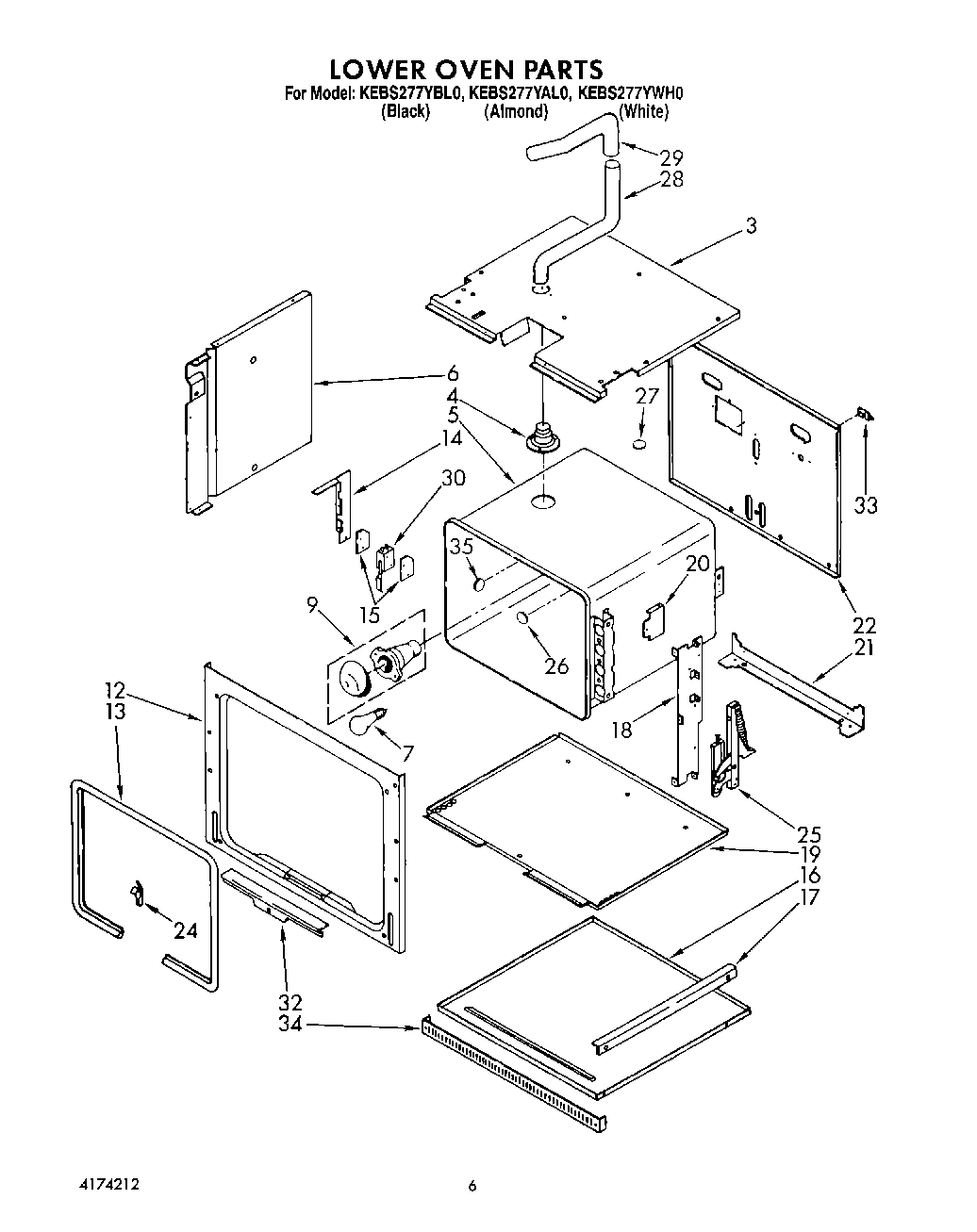

KEBS277YWH0 05 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Tube, Vent
4	Screw (3)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
12	Frame, Front
13	Seal, Door
13	Screw (4)
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Screw (6)
20	Shield, Radiation
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Screw (4)
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	WP90767 Whirlpool Screw
28	Tube, Vent Male
29	Tube, Vent Female
30	Screw (2)
30	Switch, Door
30	Nut (2)
32	SCREW
32	Retainer, Seal
33	Cover, Cap Tube
33	Screw
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (White)
35	Insulation, Back
35	Probe Cover
35	Insulation, Oven
