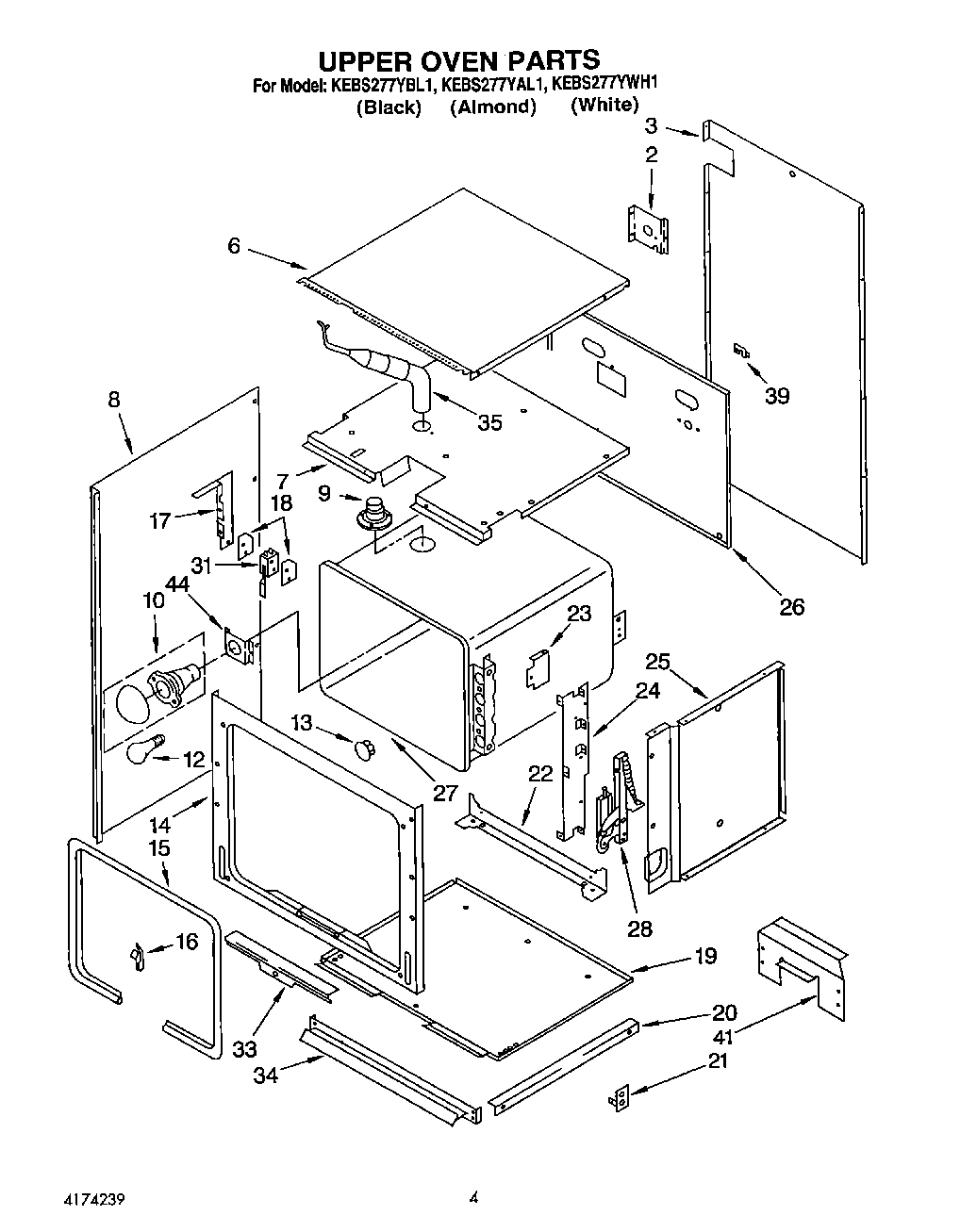

KEBS277YWH1 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	Button, Plug
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw
21	Insert, Middle Vent Trim
22	Support, Oven
23	Screw (6)
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	SCREW
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (Black Model)
34	Vent, Middle Trim (White or Almond Model)
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
35	Screw
39	Shoulder Screw
39	Cover, Cap Tube
39	Screw
41	WPL 3183752
41	WP3177991 Whirlpool Screw
44	WP90767 Whirlpool Screw
44	Insulation, Oven
44	Insulation, Back
44	Retainer, Insulation
