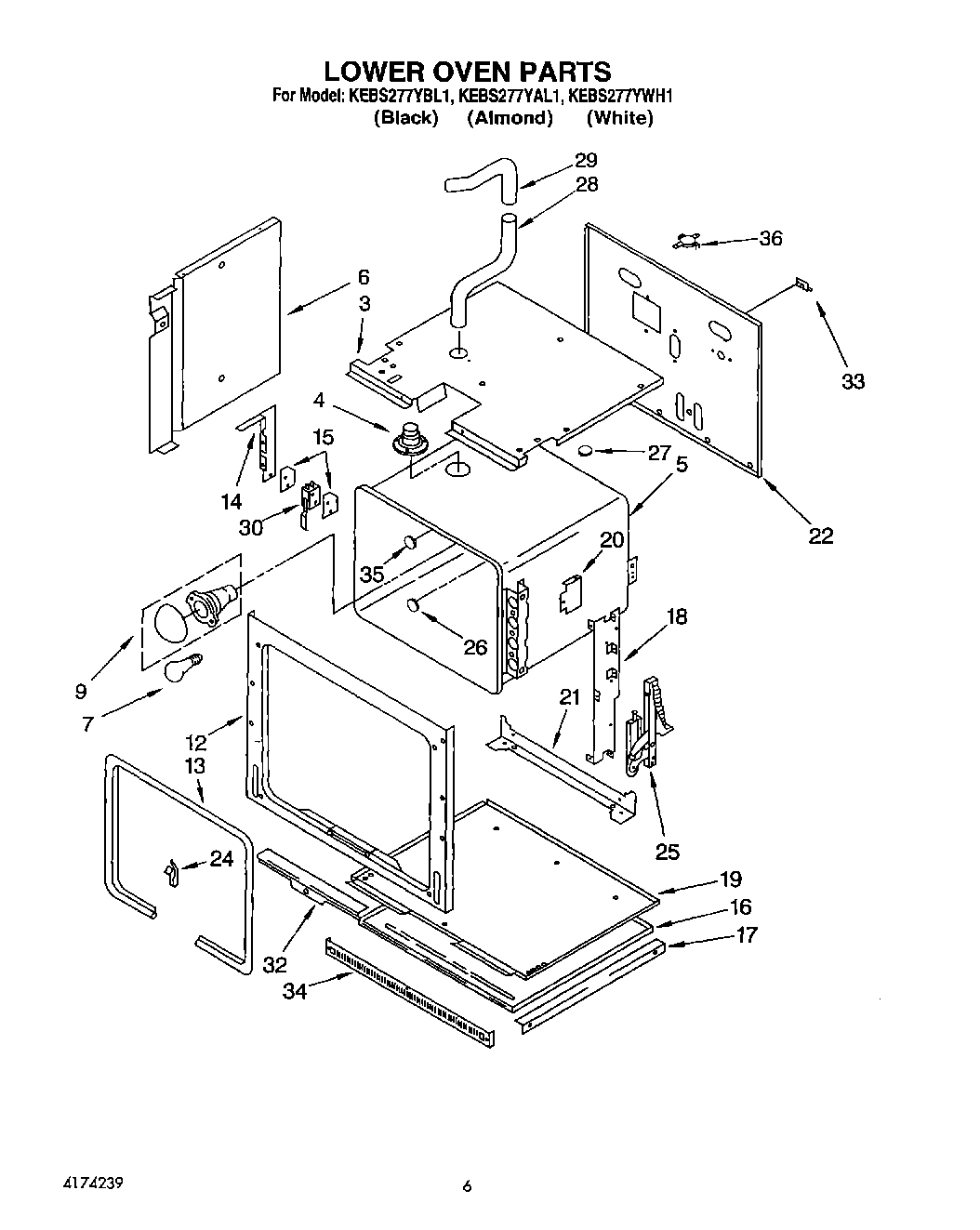

KEBS277YWH1 05 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Tube, Vent
4	Screw (3)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
12	Frame, Front
13	Seal, Door
13	Screw (4)
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
20	Screw (6)
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Hinge, Door
25	Screw (4)
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
29	Tube, Vent Female
30	Switch, Door
30	Nut (2)
30	Screw (2)
32	Retainer, Seal
32	SCREW
33	Screw
33	Cover, Cap Tube
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
35	Probe Cover
36	Fuse, Safety
36	WP90767 Whirlpool Screw
36	Insulation, Oven
36	Insulation, Back
