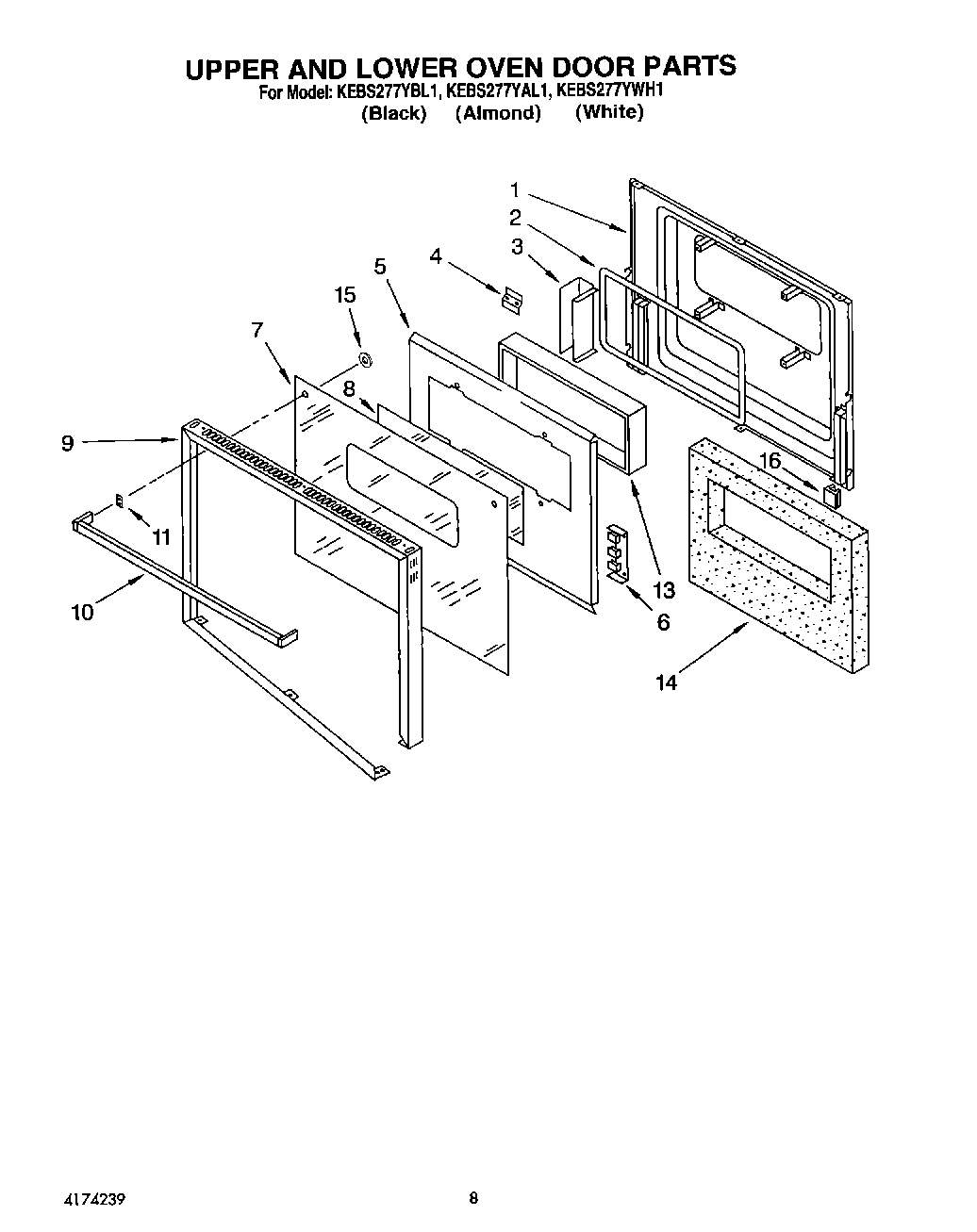

KEBS277YWH1 06 – UPPER AND LOWER OVEN DOOR

KEBS277YWH1 06 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS277YWH1 06 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door (Black)
7	Glass, Door (Almond)
7	Glass, Door (White)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door (Almond Model)
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
11	Screw
11	Spacer, Door Handle
13	Window Package
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
