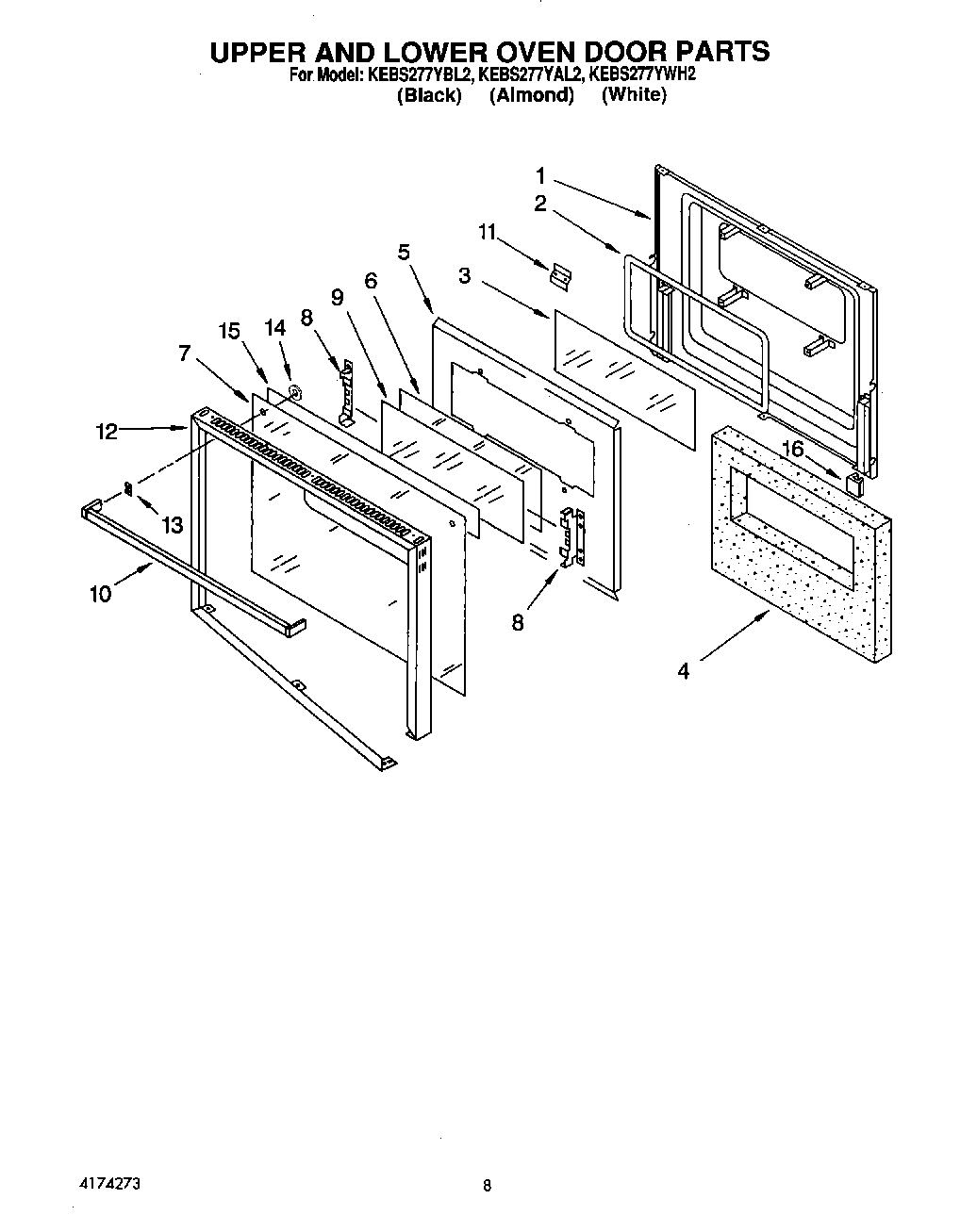

KEBS277YWH2 05 – UPPER AND LOWER OVEN DOOR

KEBS277YWH2 05 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS277YWH2 05 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
6	Glass, Reflective
7	Glass, Door (Almond Model)
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
8	Retainer, Glass
9	Glass, Clear
10	Handle, Door (Almond Model)
10	Handle, Door (White Model)
10	Handle, Door (Black Model)
11	Latch, Strike
12	Frame, Door
13	Spacer, Door Handle
14	Bushing, Door Handle
15	Foil-Adhesive Backed
16	Bumper, Door Glass
