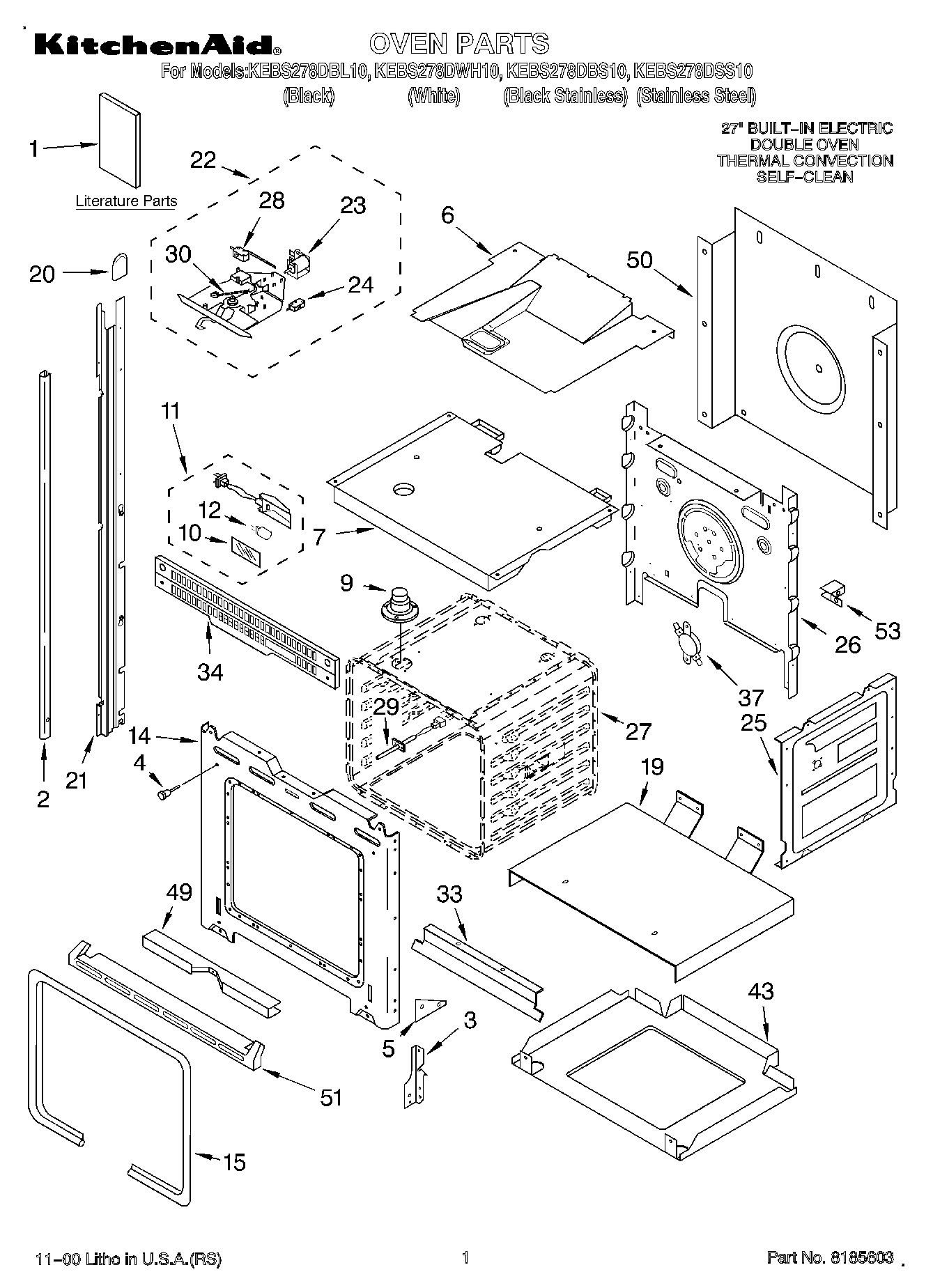

KEBS278DBL10 01 – OVEN

Products

PositionProduct
2Trim, Side (Right Hand) (White Model)
2Trim, Side (LH Black)
2Trim, Side (Stainless Steel)
2Trim, Side (RH Black)
2Trim, Side (Left Hand)) (White Model)
2Trim, Side (Stainless Steel)
2Trim, Side (White)
2WP8281236 Whirlpool Screw
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
124449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814373 Whirlpool Oven Rail Mount
21814374 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
33Deflector, Vent
33W10145009 Whirlpool Vent Deflector
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4448476
51WPL 4452480
514452152 Whirlpool Oven Mounting Bracket
51Tri
51Screw, (2)
53WPL 4450364
53WPL 4449845
53WP4449809 Whirlpool Screw
53Insulation, Bottom Vent
53WPL 4449315
