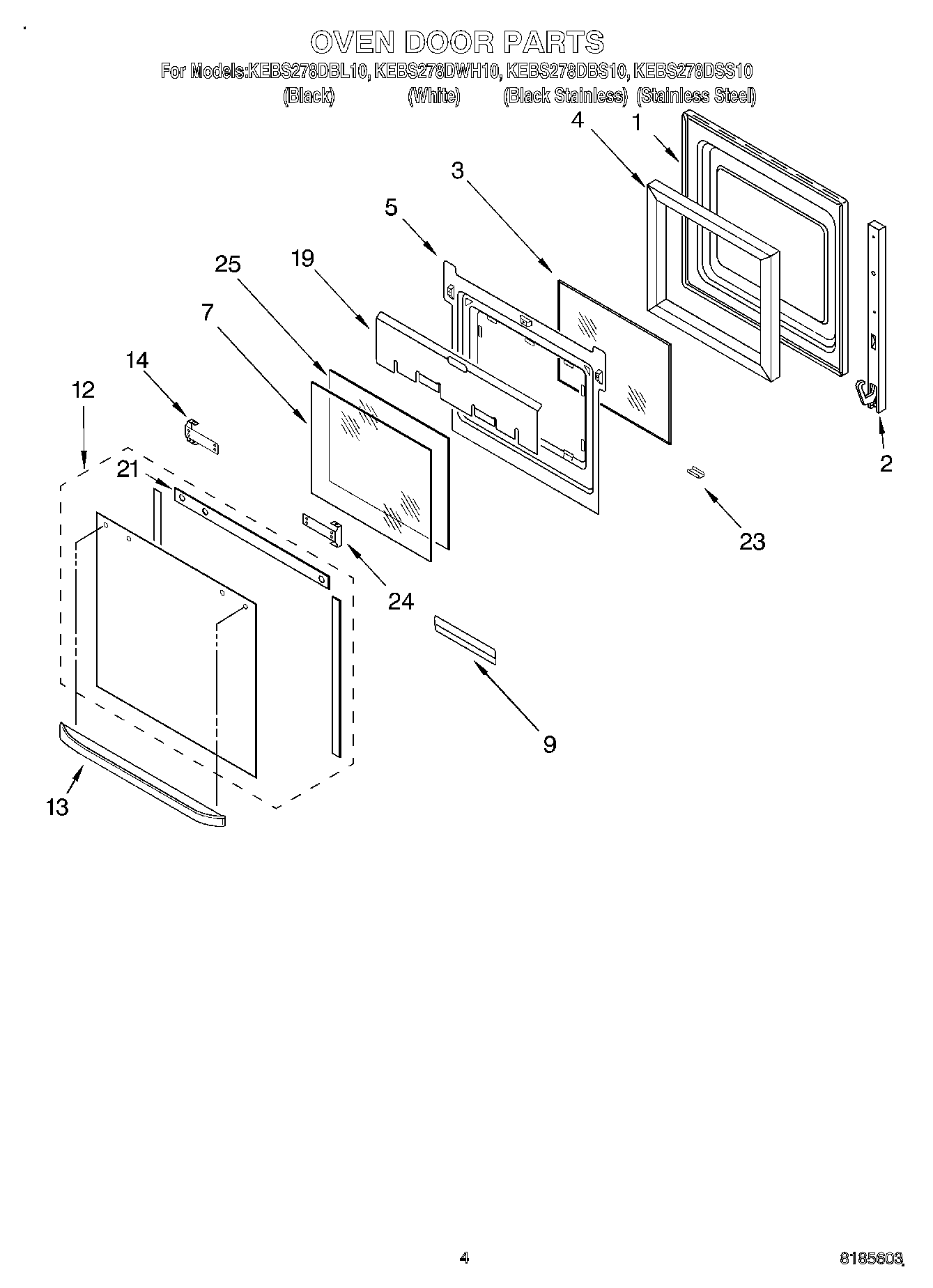

KEBS278DBL10 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455524 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
9	Retainer, Glass
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (Black-Stainless)
12	WP4452315 Whirlpool Door Glass
13	Door Handle (Stainless Steel)
13	Handle (White Model)
13	Handle (Black Model)
14	Screw
14	Bracket, Handle
19	WP4449809 Whirlpool Screw
19	Shield, Heat
21	Seal, Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	4455803 Whirlpool Oven Bracket
24	Bracket, Handle (Left Hand)
25	Glass, Inner
