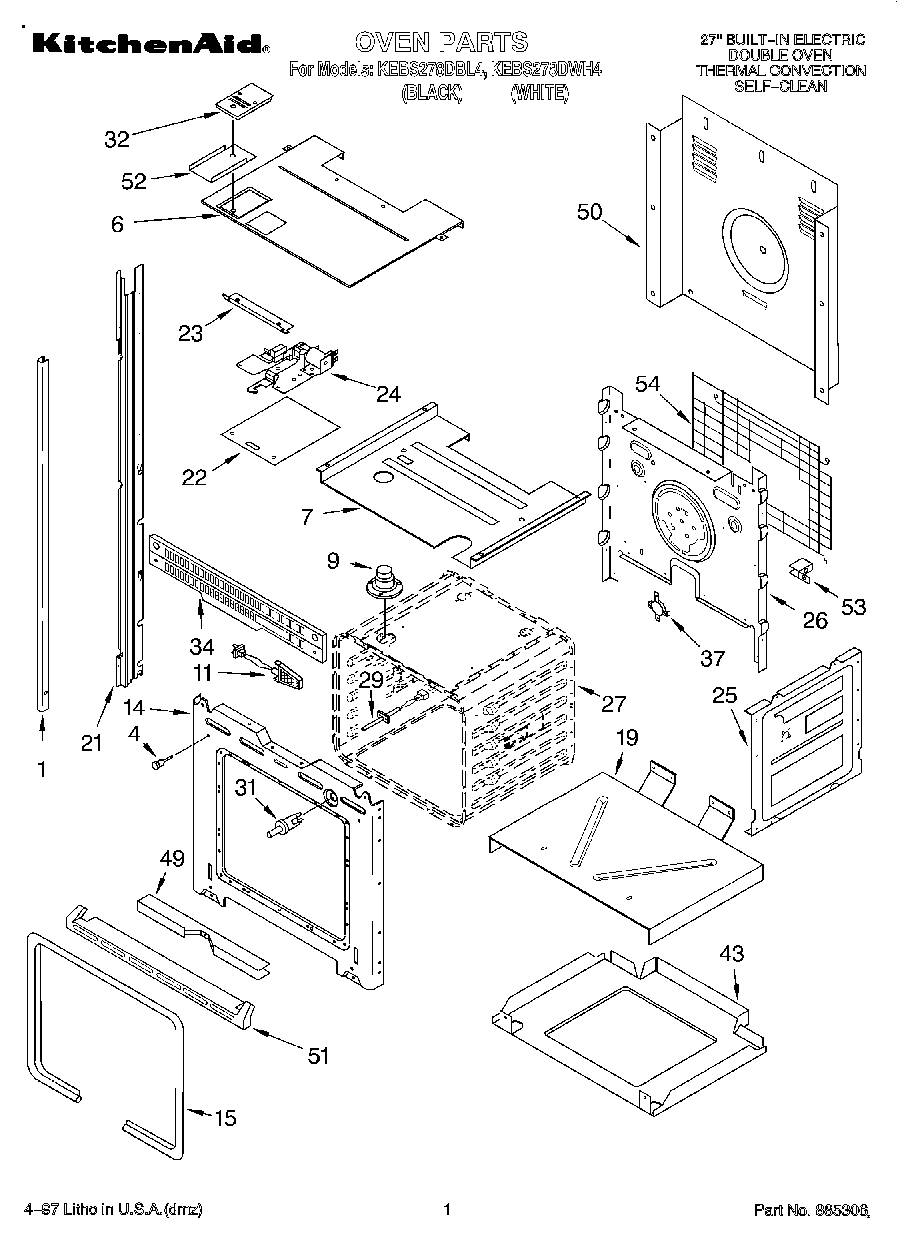

KEBS278DBL4 01 – OVEN
Written by
in
KEBS278DBL4 01 – OVEN
Products
Position
Product
1
Trim, Side (RH Black)
1
Trim, Side (Right Hand) (White Model)
1
Trim, Side (Left Hand)) (White Model)
1
Trim, Side (LH Black)
1
Trim, Side (White)
1
WP8281236 Whirlpool Screw
4
4448520 Whirlpool Oven Bumper
6
Divider, Vent
7
Partition
9
Tube, Vent
11
WP4448972 Whirlpool Oven Light
11
4449748 Whirlpool Oven Screw
14
Screw
14
WP4450118 Whirlpool Nut
14
Frame, Front
15
WP4455381 Whirlpool Door Gasket
19
Support, Insulation
21
814373 Whirlpool Oven Rail Mount
21
WP4448444 Whirlpool Grommet
21
814374 Whirlpool Oven Rail Mount
22
Trim, Bottom (Screw)
22
Shield, Latch
23
Deflector, Latch
24
Latch Assy
25
Side, Chassis (R.H. & L.H.)
26
Back, Chassis
27
Liner, Oven (Not a Serviceable Part)
29
Sensor
31
Switch, Door
32
Vent Box Assy
34
Vent, Center
37
WP4450249 Whirlpool Thermostat
37
WP4450934 Whirlpool Thermostat Assembly
43
Base, Chassis
49
WP4448933 Whirlpool Retainer
49
WP4449154 Whirlpool Screw
50
Cover, Back
51
Trim, Bottom (Black Model)
51
Trim, Bottom (White Model)
51
Screw, (2)
52
Extension, Vent (Lower Oven)
52
Vent Extension
53
WPL 4449845
54
WPL 4449315
54
WP4449809 Whirlpool Screw
54
WPL 4450364
54
Spacer, Harness
←
