KEBS278DBL6 01 – OVEN

KEBS278DBL6 01 – OVEN

Written by

in

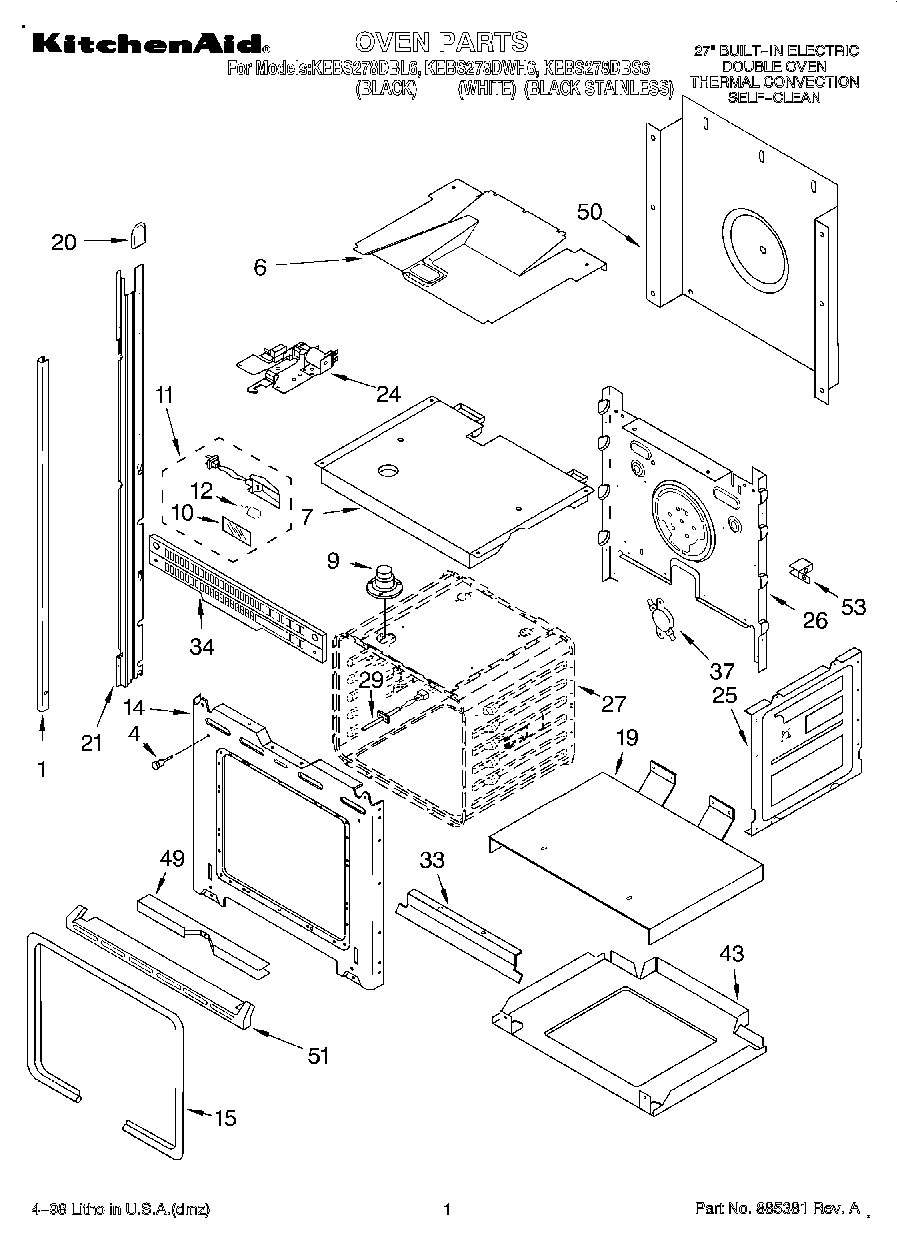

KEBS278DBL6 01 – OVEN

Products

PositionProduct
1Trim, Side (RH Black)
1Trim, Side (Left Hand)) (White Model)
1Trim, Side (LH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (White)
1WP8281236 Whirlpool Screw
44448520 Whirlpool Oven Bumper
6Divider, Vent
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
124449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
24Micro Switch N.C.
24Microswitch
24Latch Assembly
24Solenoid
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
33Deflector, Vent
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (White Model)
51Screw, (2)
51Trim, Bottom (Black Model)
53WP4449809 Whirlpool Screw
53WPL 4450364
53WPL 4449315
53WPL 4449845
