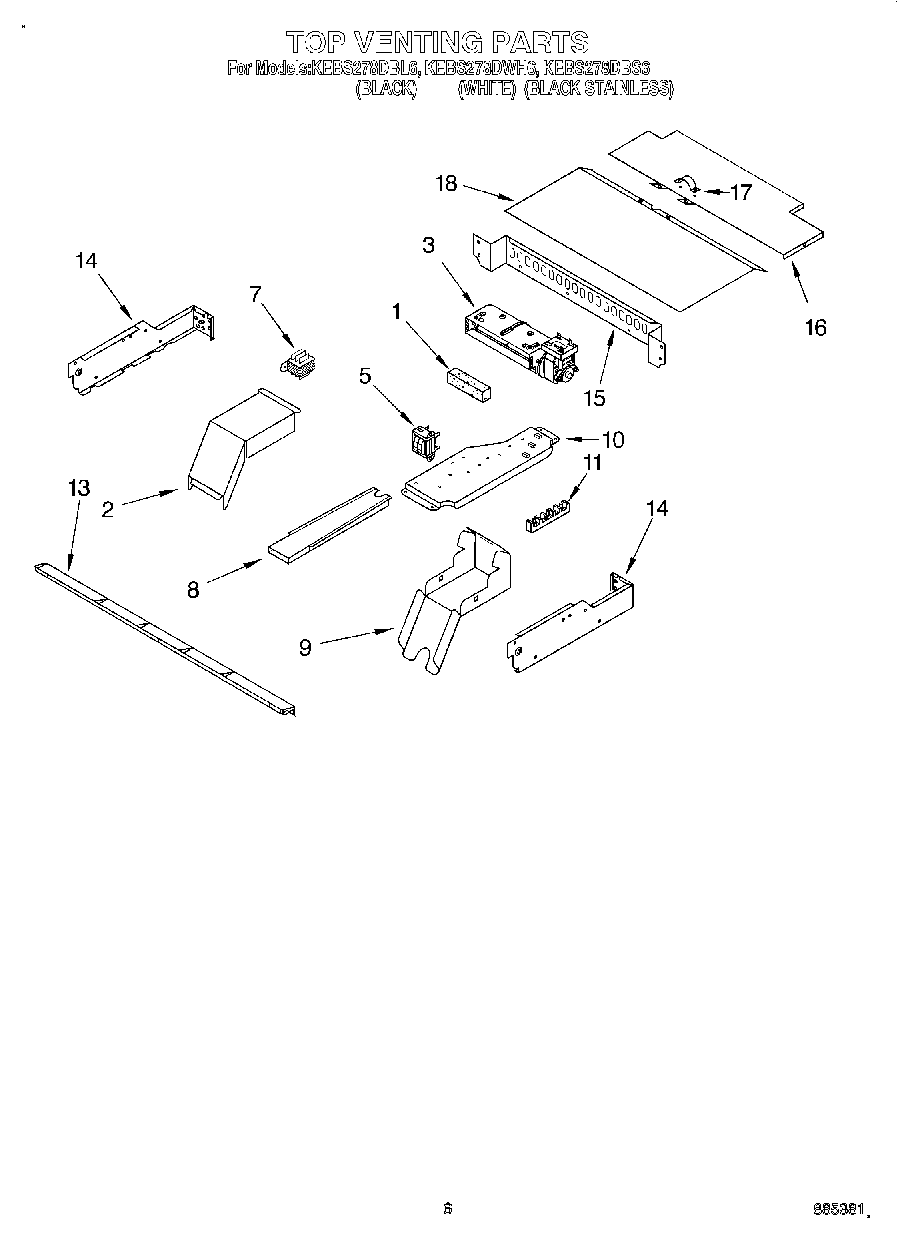

KEBS278DBL6 05 – TOP VENTING

KEBS278DBL6 05 – TOP VENTING

Written by

in

KEBS278DBL6 05 – TOP VENTING

Products

PositionProduct
1W10491987 Whirlpool Foam Seal
24455178 Whirlpool Oven Top Elbow
3WPW10016550 Whirlpool Blower Cooling Fan
5WP9760588 Whirlpool Transformer
7Transformer
84451759 Whirlpool Oven Exhaust Vent
94455177 Whirlpool Oven Bottom Elbow
10Plate, Mounting
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
18261900 Whirlpool Microwave Spray
184451761 Whirlpool Oven Support Bracket
18WPL 591014
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Cover, Top Front
18Wire (14 Ga. 200 c Brown)
181
18Harness, Wire (Main)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WPW10339879 Whirlpool Wire Tie
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
18285006 Whirlpool Spray
1872032 Whirlpool Touch Up Paint Black
18WP482338 Whirlpool Refrigerator Adhesive
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18WP4456654 Whirlpool Thermal Fuse
18Spacer, Harness
1816515 Whirlpool Clip
18Conduit, Double
18WPL 4452239
18WP4448950 Whirlpool Screw
18814381 Whirlpool Pin
18350930 Whirlpool White Spray Paint
