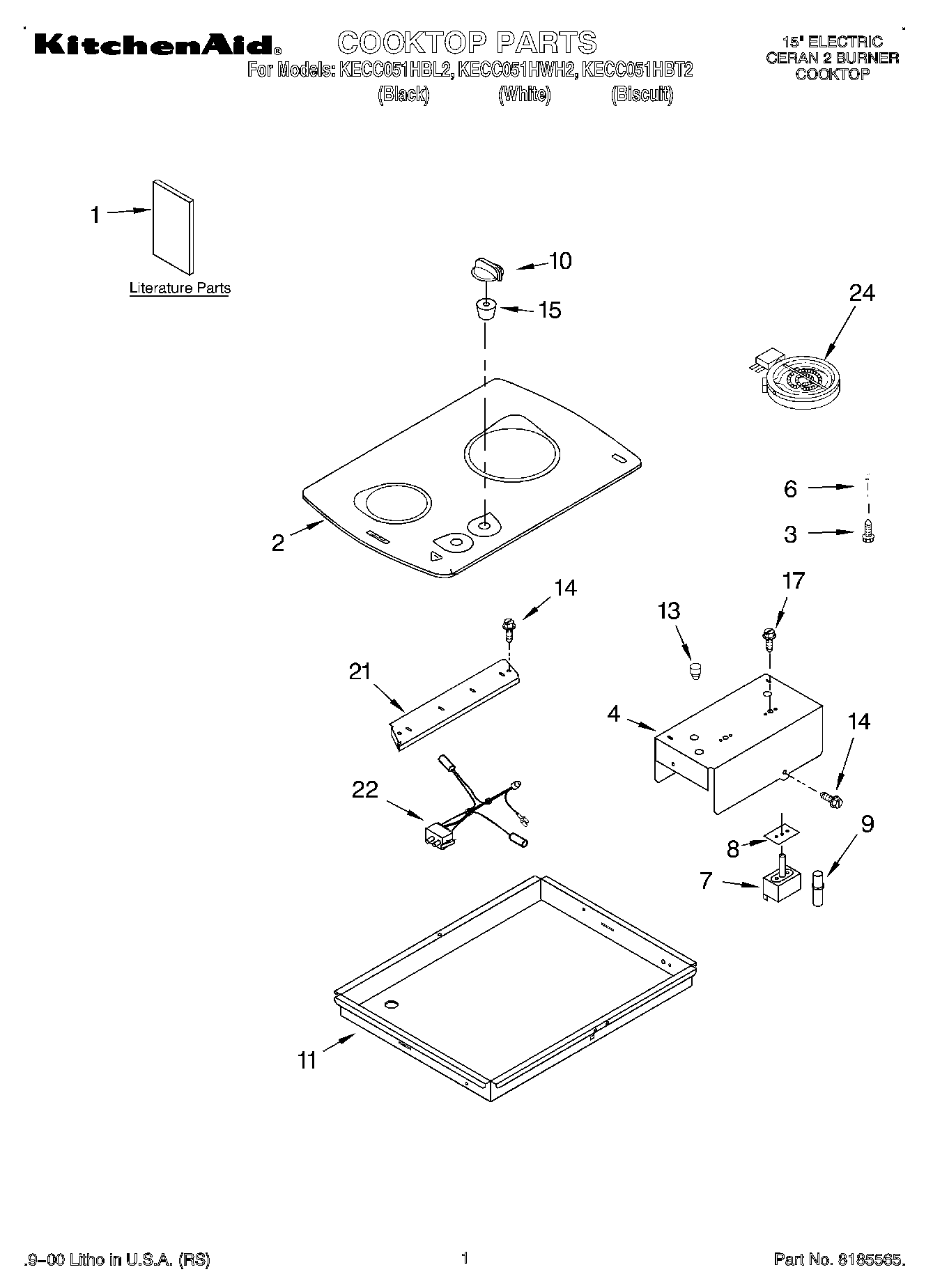

KECC051HBT2 01 – SECTION

KECC051HBT2 01 – SECTION

Written by

in

KECC051HBT2 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2Cooktop, Glass (Black)
2Cooktop, Glass (White)
2Cooktop, Glass (Biscuit)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
6Spring, Locator
7WP3191050 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
8W10491984 Whirlpool Switch Seal
93193012 Whirlpool Oven Indicator Light
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FF Whirlpool Knob
10Knobs, Control (4) (Almond)
11Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
213192721 Whirlpool Support
22Lamp, Hot Surface Indicator
24Conduit
244455364 Whirlpool Oven Support Bracket
24Hardware Asm.
24Wiring Harness Surface Unit
24Bracket, Support (2)
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24Wire, 25` Roll (Black 14 Ga.)
24Wire, 25` Roll (Red 14 Ga.)
248528351 Whirlpool Clip
243183956 Whirlpool Oven Seal Switch
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24Wire, 25“ Roll (White 14 GA.)
24242831 Whirlpool Oven Wire
24Wire (14 Ga. 150 c Brown)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Yellow)
2418 Ga. 80~c Rating (Red)
24Wire (14 Ga. 200 c Brown)
241
24Wire (12 Ga. 150 c Black)
24W10823698 Whirlpool Surface Element Right Rear
24WP3400015 Whirlpool Screw
