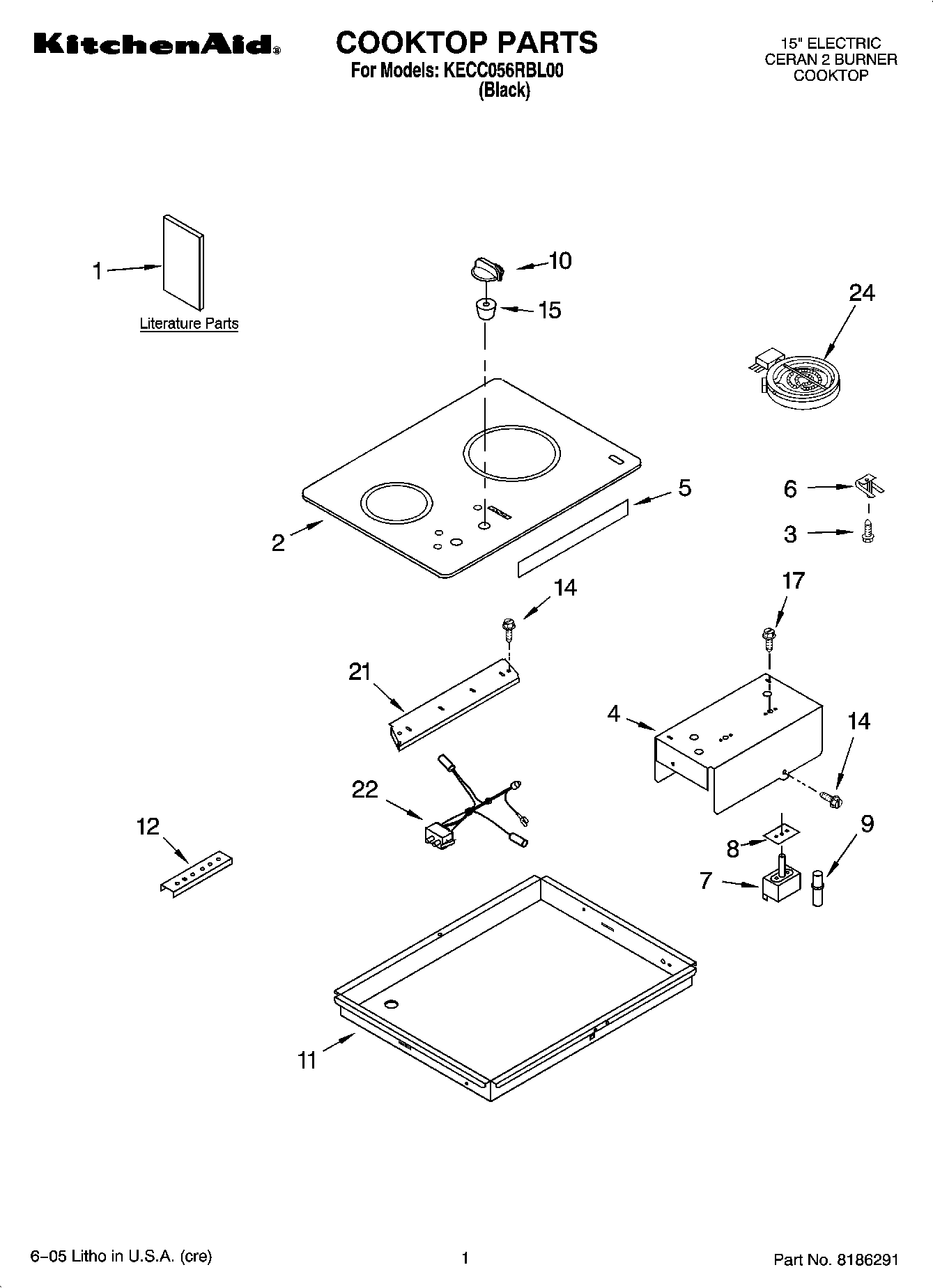

KECC056RBL00 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Conduit
	WPL ARI83778A8
	Harness, Main
	WPL ARI83779A3
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	8528351 Whirlpool Clip
	WPL ARI83780A5
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
1	INSTALLATION INSTRUCTIONS
1	Wiring Diagram
1	COOKTOP PARTS
1	Safe Cooking Tips
1	Energuide Label
1	Use & Care Guide
2	W10665724 Whirlpool Cooktop
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	Foam, Seal
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP3191050 Whirlpool Infinite Switch
8	W10491984 Whirlpool Switch Seal
9	3193012 Whirlpool Oven Indicator Light
10	WP9750372FF Whirlpool Knob
11	Box, Burner
12	WP3400093 Whirlpool Screw
12	8186533 Whirlpool Hardware
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
21	3192721 Whirlpool Support
22	Lamp, Hot Surface Indicator
24	3183956 Whirlpool Oven Seal Switch
24	W10823698 Whirlpool Surface Element Right Rear
24	W10823711 Whirlpool Surface Element Left Front and Right Rear
24	Hardware Asm.
24	Bracket, Support (2)
