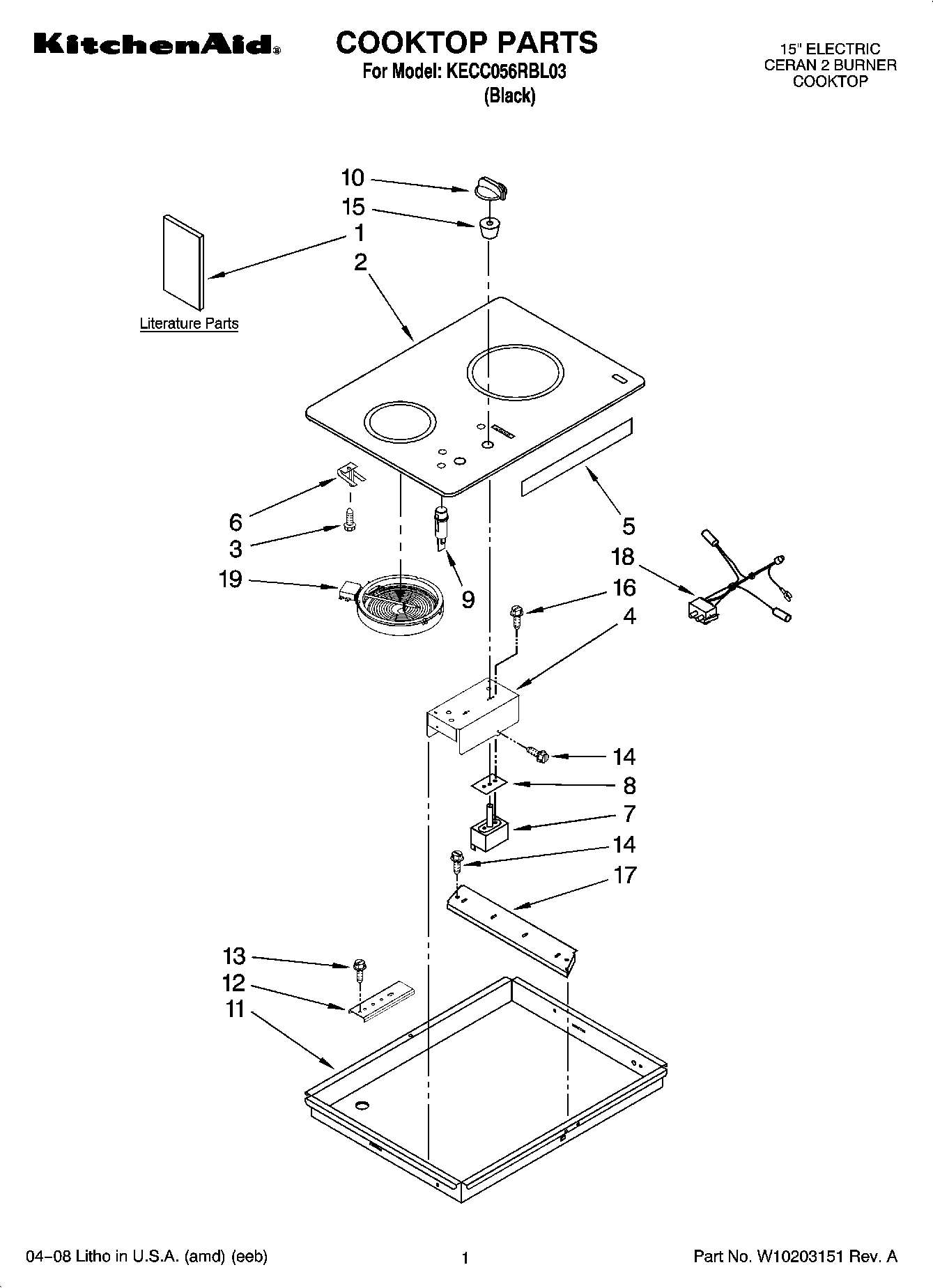

KECC056RBL03 01 – COOKTOP PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WIRING HARNESS PAR
	Following Parts Not Illustrated
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	Conduit
	Harness, Main
	4455364 Whirlpool Oven Support Bracket
	242831 Whirlpool Oven Wire
	Miscellaneous
	WP3400015 Whirlpool Screw
	W10491985 Whirlpool Screw
	SPLICING WIRES–25FT. LENGTH
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	8528351 Whirlpool Clip
	Following Parts Not Illustrated
1	INSTALLATION INSTRUCTIONS
1	Safer Cooking Tips (French)
1	Use & Care Guide
1	Wiring Diagram
1	SAFER COOKING TIPS (ENGLISH
2	W10665724 Whirlpool Cooktop
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	Foam, Seal
6	9759094 Whirlpool Spring
7	WP3191050 Whirlpool Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	W10491984 Whirlpool Switch Seal
9	3193012 Whirlpool Oven Indicator Light
10	WP9750372FW Whirlpool Knob Assembly
10	WP9750372FF Whirlpool Knob
10	WP9750372FC Whirlpool Knob
11	Box, Burner
12	8186533 Whirlpool Hardware
13	WP3400093 Whirlpool Screw
14	WP3196557 Whirlpool Screw
15	8285469 Whirlpool Oven Seal Switch
16	WP486579 Whirlpool Air Conditioner Screw
17	3192721 Whirlpool Support
18	Lamp, Hot Surface Indicator
19	3183956 Whirlpool Oven Seal Switch
19	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	W10823698 Whirlpool Surface Element Right Rear
