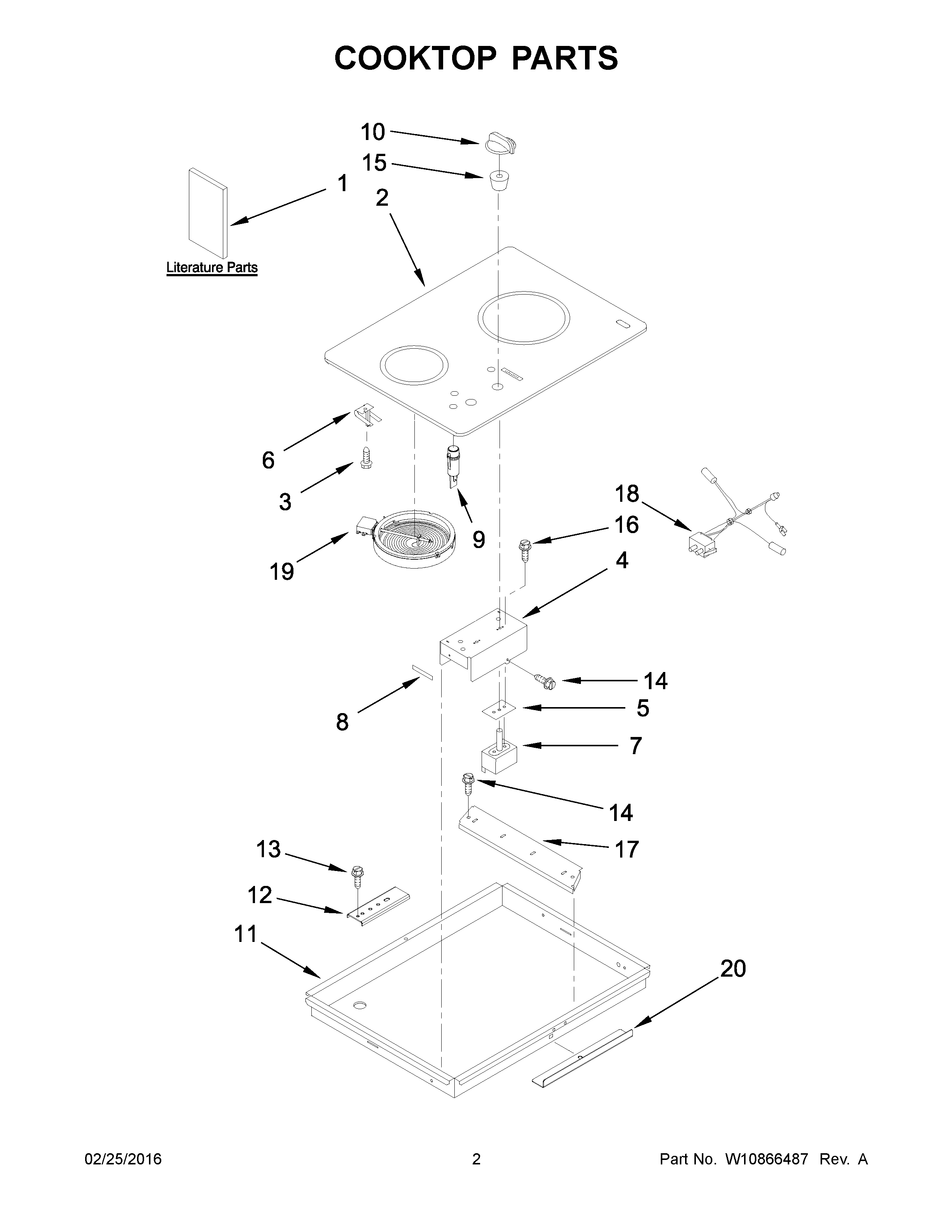

KECC056RBL05 02 – COOKTOP PARTS
Written by
in
KECC056RBL05 02 – COOKTOP PARTS
Products
Position
Product
NI
ASSEMBLY, CONDUIT
NI
8528351 Whirlpool Clip
NI
WP8286642 Whirlpool Tape
NI
HARNESS, MAIN
NI
CABINET (NOT A SERVICEABLE PART)
NI
WP3400015 Whirlpool Screw
1D
Safer Cooking Tips (French)
1B
Use & Care Guide
1E
Installation Instructions (Undercounter Oven)
1A
Wiring Diagram
1
INSTALLATION INSTRUCTIONS
1C
SAFER COOKING TIPS (ENGLISH
2
W10875085 Whirlpool Cooktop
3
WP486754 Whirlpool Compactor Screw
4
BRACKET, SWITCH MOUNTING
5
3183956 Whirlpool Oven Seal Switch
6
9759094 Whirlpool Spring
7A
WP3191050 Whirlpool Infinite Switch
7
WP3191049 Infinite Switch Left Rear Right Front
8
W10491984 Whirlpool Switch Seal
9
3193012 Whirlpool Oven Indicator Light
10
WP9750372FF Whirlpool Knob
11
Box, Burner
12
8186533 Whirlpool Hardware
13
WP3400093 Whirlpool Screw
14
WP3196557 Whirlpool Screw
15
8285469 Whirlpool Oven Seal Switch
16
WPL 7101P30960
17
3192721 Whirlpool Support
18
Lamp, Hot Surface Indicator
19
ELMNT-SURF
19A
WP8273993 Whirlpool Surface Element
20
4455364 Whirlpool Oven Support Bracket
←
