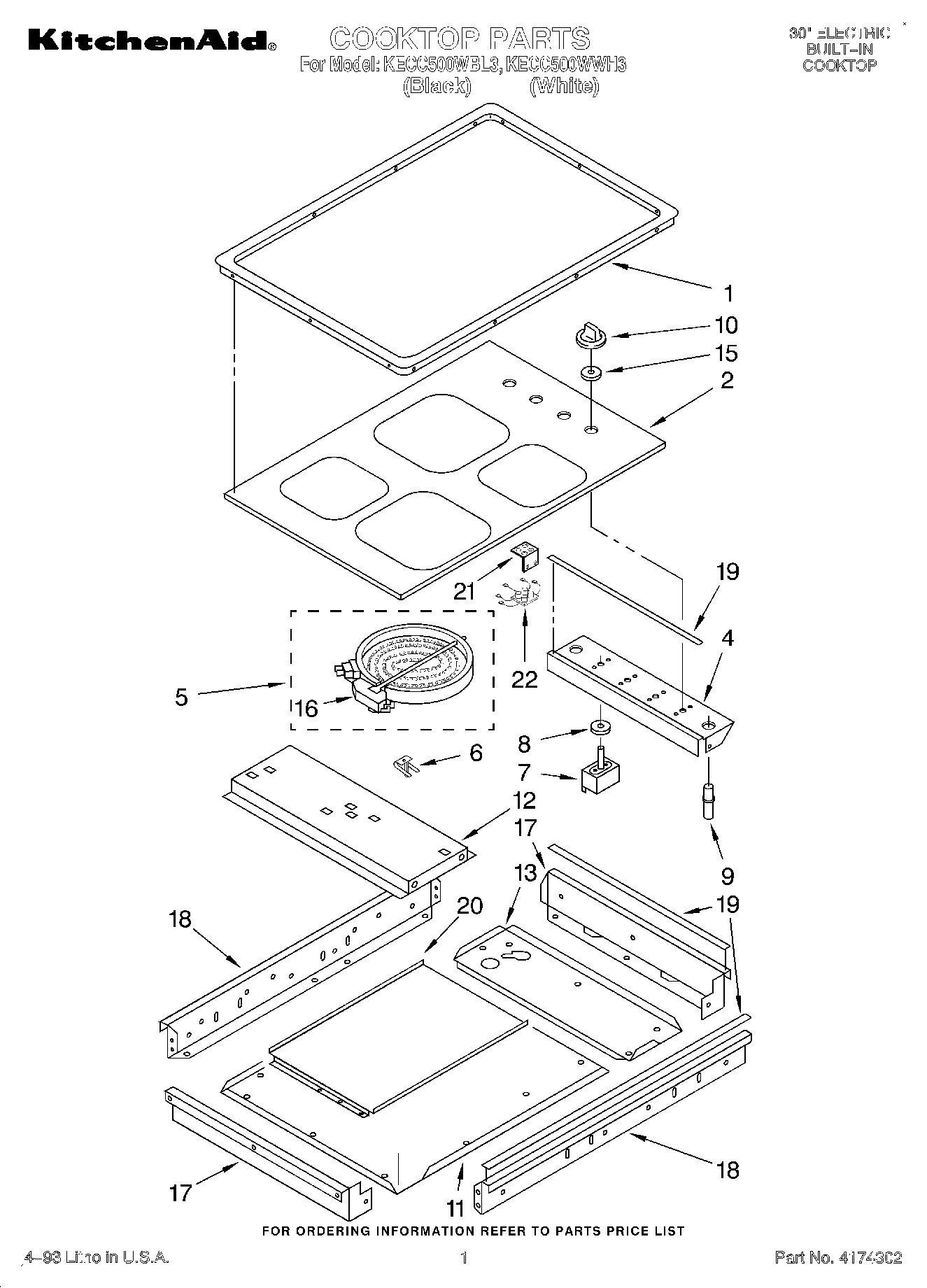

KECC500WBL3 01 – SECTION
Written by
in
KECC500WBL3 01 – SECTION
Products
Position
Product
Wire (14 Ga. 150 c Green)
WPL LIT3181198
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
1
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
WPL LIT3181199
WPL LIT3183176
Clamp (2)
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Mounting Screws (10A X 2 (2))
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL LIT4174302
Wire (14 Ga. 200 c Brown)
1
Trim Ring, Cooktop (White)
1
Trim Ring, Cooktop (Black)
1
Screw (5)
2
Cooktop, Glass (White)
2
Cooktop, Glass (Black)
4
Bracket, Switch Mounting
5
Element, Surface (1400W Left Rear)
5
WP8185663 Whirlpool Surface Element
5
Element, Surface (2100W Right Rear)
5
Element, Surface (1700W Right Front)
6
WP486754 Whirlpool Compactor Screw
6
Spring, Locator
7
WP486579 Whirlpool Air Conditioner Screw
7
Switch, Infinite (Use W/2400W Left Front Burner)
7
Switch, Infinite (Use W/1400W Left Rear Burner)
7
Switch, Inifinite (Front Burner (Green Shaft))
8
Seal, Switch Shaft (2)
9
Light, Indicator
10
Knob, Control (4) (Black)
10
Knob, Control (4) (White)
11
Cover, Bottom
12
Support, Element
13
Cover, Service
15
Seal, Inifinite Switch
16
Limiter Temp. (7“ – RF)
16
Limiter, Temp. (6“ L.R.)
16
Limiter, Temp. (9“ L.F.)
16
Limiter Temp. (8“ – RR)
17
Rail, Side (Right Hand)
17
Rail, Side (Left Hand)
18
WPL 3183380
19
Seal, Silicone (Front & Back (2))
19
Seal, Silicone (Sides (2))
20
Shield, Heat
21
WPL 3150321
22
WPL 3150304
22
WP488729 Whirlpool Refrigerator Door Screw
←
