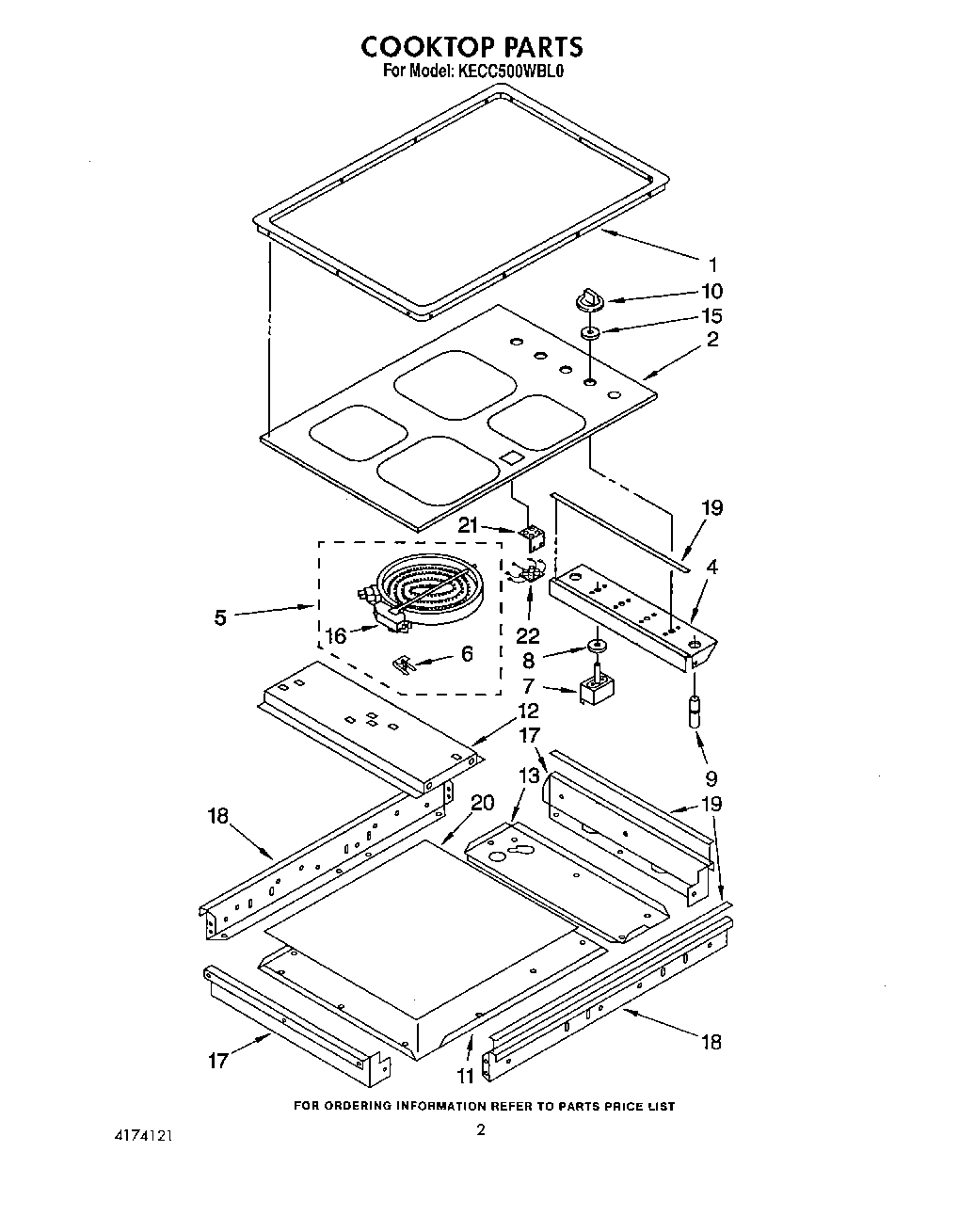

KECC500WWH0 02 – SECTION

Products

Position	Product
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	Screw, 10A x 2
	Clamp (2)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Black 14 Ga.)
	WPL LIT4174121
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL LIT3181199
	WPL LIT3181198
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Grill, Bottom (Screw (3))
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
1	WP308685 Whirlpool Microwave Screw
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
4	Bracket, Switch Mounting
5	Element, Surface (2100W Right Rear)
5	Element, Surface (1700W Right Front)
5	Element, Surface (1400W Left Rear)
5	WP8185663 Whirlpool Surface Element
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator
7	W10900107 Whirlpool Oven Surface Element Switch
7	WP486579 Whirlpool Air Conditioner Screw
7	Switch, Infinite (Use W/2200W Right Rear Burner)
8	Seal, Switch Shaft (2)
9	Light, Indicator
10	Knob, Control (4) (Black)
10	Knob, Control (4) (White)
11	Cover, Bottom
12	Support, Element
13	Cover, Service
15	Seal, Inifinite Switch
16	Limiter, Temp. (9“ L.F.)
16	Switch, Limit (use W/3148831 Element)
16	Switch, Limit (Use W/3148830 Element)
16	Switch, Limit (Use W/3148829 Element)
17	Rail, Side (Right Hand)
17	Rail, Side (Left Hand)
18	Rail, Front & Rear
19	Seal, Sili
19	WPL 3181645
20	Reflector, Heat
21	WPL 3150321
22	WP488729 Whirlpool Refrigerator Door Screw
22	WPL 3150304
