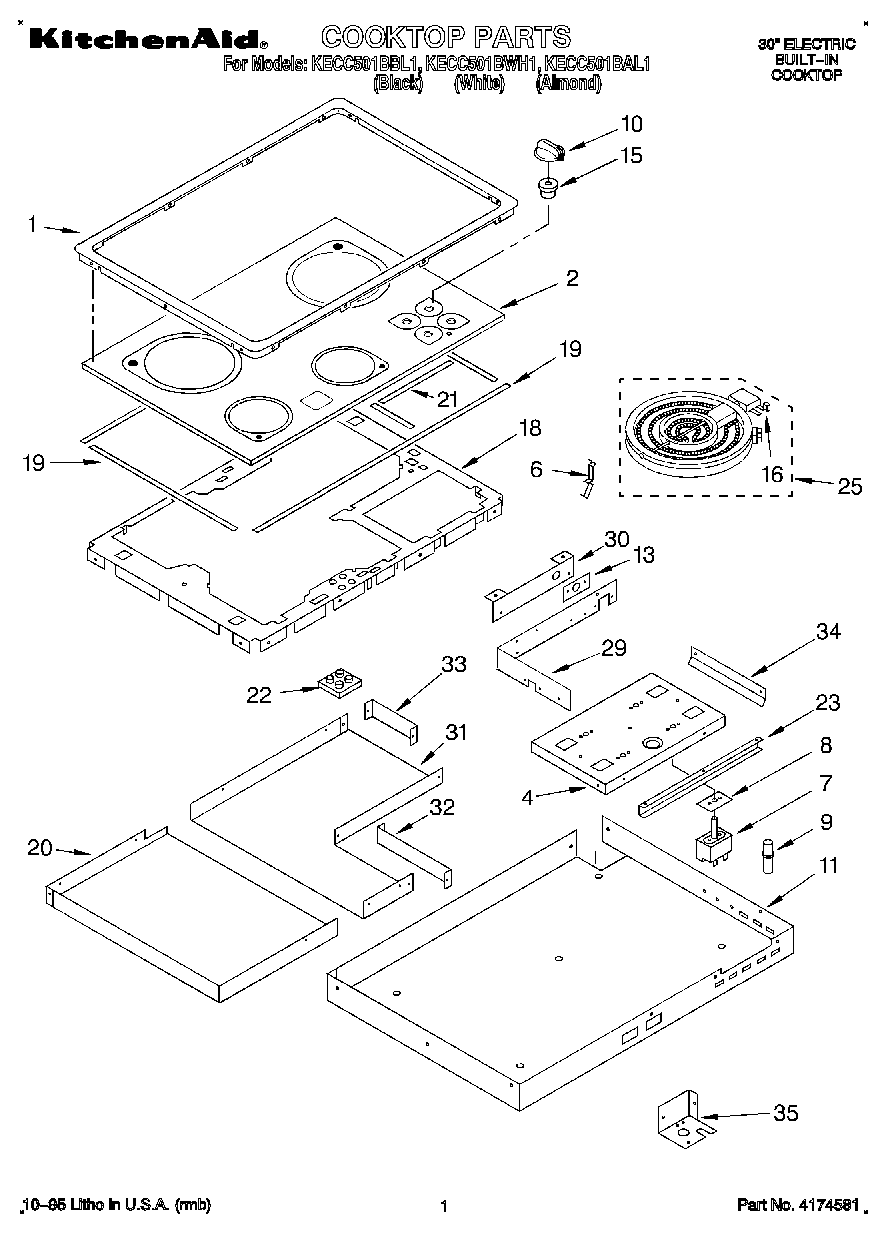

KECC501BBL1 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Almond)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Almond)
4	Bracket, Switch Mounting
6	Spring, Locator (8)
6	WP486754 Whirlpool Compactor Screw
7	Switch, Infinite (Use W/1400W Right Front Burner)
7	Switch, Infinite (Use W/2100W Right Rear Burner)
7	W10900107 Whirlpool Oven Surface Element Switch
8	3183956 Whirlpool Oven Seal Switch
8	WP486579 Whirlpool Air Conditioner Screw
9	Light, Indicator
10	WP9750372FW Whirlpool Knob Assembly
10	Knobs, Control (4) (Almond)
10	WP9750372FF Whirlpool Knob
11	Box, Burner
13	Grommet
15	Seal, Inifinite Switch
16	Limiter, Temp (2100W – RR)
16	Limiter, Temp. (1400 W – LR)
16	Switch, Limiter (Use W/3189893 Element)
16	Limiter, Temp. (2400 W – LF)
18	Plate, Backer
19	Seal, Silicone (Sides (2))
19	Seal, Silicone (Front & Back (2))
20	Shield, Heat
21	Seal, Silicone (Controls (2))
22	Vent, Lower Trim (Screw (2))
22	Lamp, Hot Surface Indicator
23	Bracket, Stiffening
25	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
25	Element, Surface (9“ L.F. 2400W)
25	Element, Surface (8“ R.R. 2100W)
25	Element, Surface (6“ L.R. 1400W)
29	WPL 3188844
30	WPL 3189174
31	WPL 3188102
32	WPL 3188158
33	WPL 3189159
34	WPL 3189036
34	Screw (6)
35	WPL 3189273
