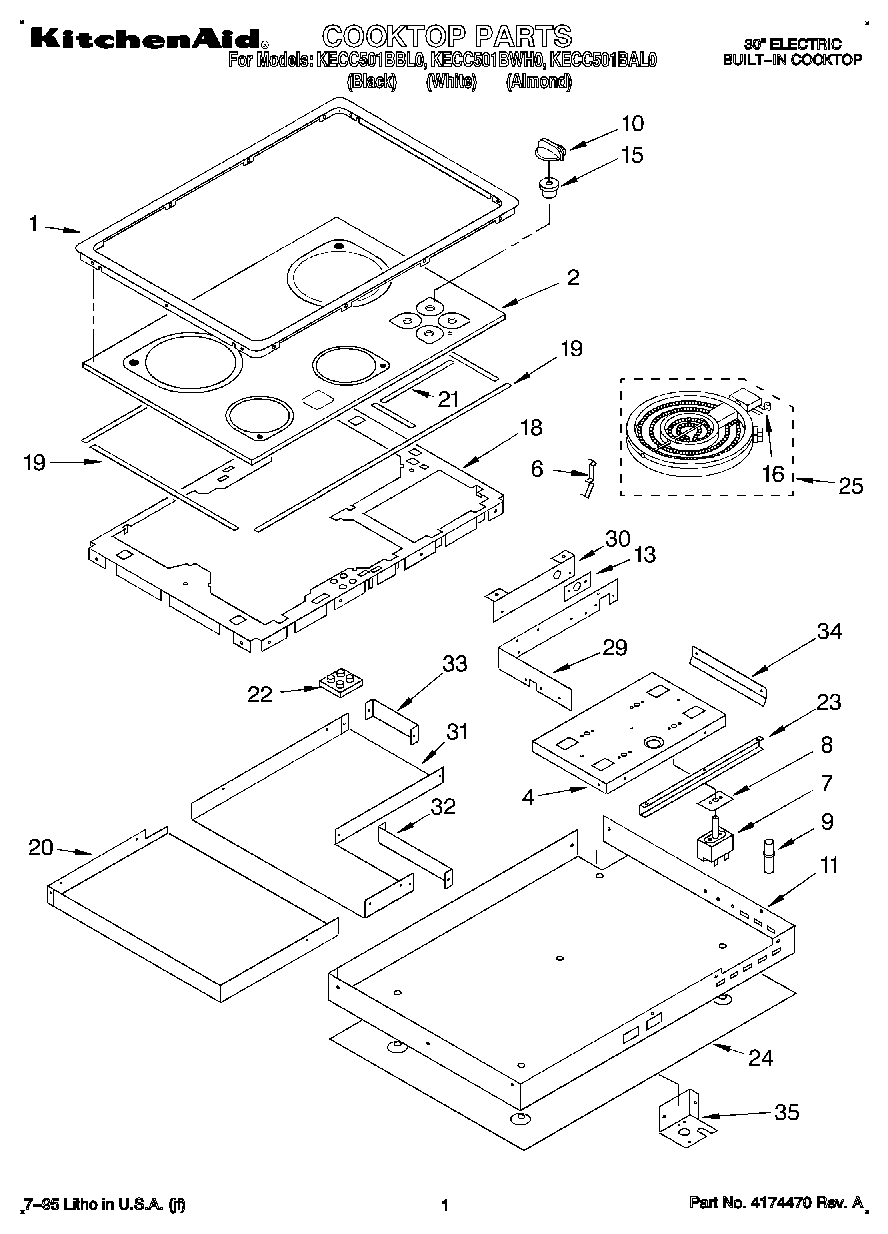

| 1 | Trim Ring, Cooktop (Black) |
| 1 | Trim Ring, Cooktop (Almond) |
| 1 | Trim Ring, Cooktop (White) |
| 2 | Cooktop, Glass (Black) |
| 2 | Cooktop, Glass (Almond) |
| 2 | Cooktop, Glass (White) |
| 4 | Bracket, Switch Mounting |
| 6 | WP486754 Whirlpool Compactor Screw |
| 6 | Spring Locator (8) |
| 7 | W10900107 Whirlpool Oven Surface Element Switch |
| 7 | Switch, Infinite (Use W/2100W Right Rear Burner) |
| 7 | Switch, Infinite (Use W/1400W Right Front Burner) |
| 8 | 3183956 Whirlpool Oven Seal Switch |
| 8 | WP486579 Whirlpool Air Conditioner Screw |
| 9 | Light, Indicator |
| 10 | Knobs, Control (4) (Almond) |
| 10 | WP9750372FF Whirlpool Knob |
| 10 | WP9750372FW Whirlpool Knob Assembly |
| 11 | Box, Burner |
| 13 | Grommet |
| 15 | Seal, Inifinite Switch |
| 16 | Switch, Limiter (Use W/4454438 Element) |
| 16 | Switch, Limiter (Use W/4454441 Element) |
| 16 | Switch, Limiter (Use W/4454440 Element) |
| 16 | Switch, Limiter (Use W/4454439 Element) |
| 18 | Plate, Backer |
| 19 | Seal, Silicone (Sides (2)) |
| 19 | Seal, Silicone (Front & Back (2)) |
| 20 | Shield, Heat |
| 21 | Seal, Silicone (Controls (2)) |
| 22 | Lamp, Hot Surface Indicator |
| 22 | Vent, Lower Trim (Screw (2)) |
| 23 | Bracket, Stiffening |
| 24 | Shield, Heat |
| 25 | Element, Surface (2100W Right Rear) |
| 25 | Element, Surface (1400W Left Rear) |
| 25 | WP8185663 Whirlpool Surface Element |
| 25 | 1200W Left Front |
| 29 | WPL 3188844 |
| 30 | WPL 3189174 |
| 31 | WPL 3188102 |
| 32 | WPL 3188158 |
| 33 | WPL 3189159 |
| 34 | WPL 3189036 |
| 34 | Screw (6) |
| 35 | WPL 3189273 |
