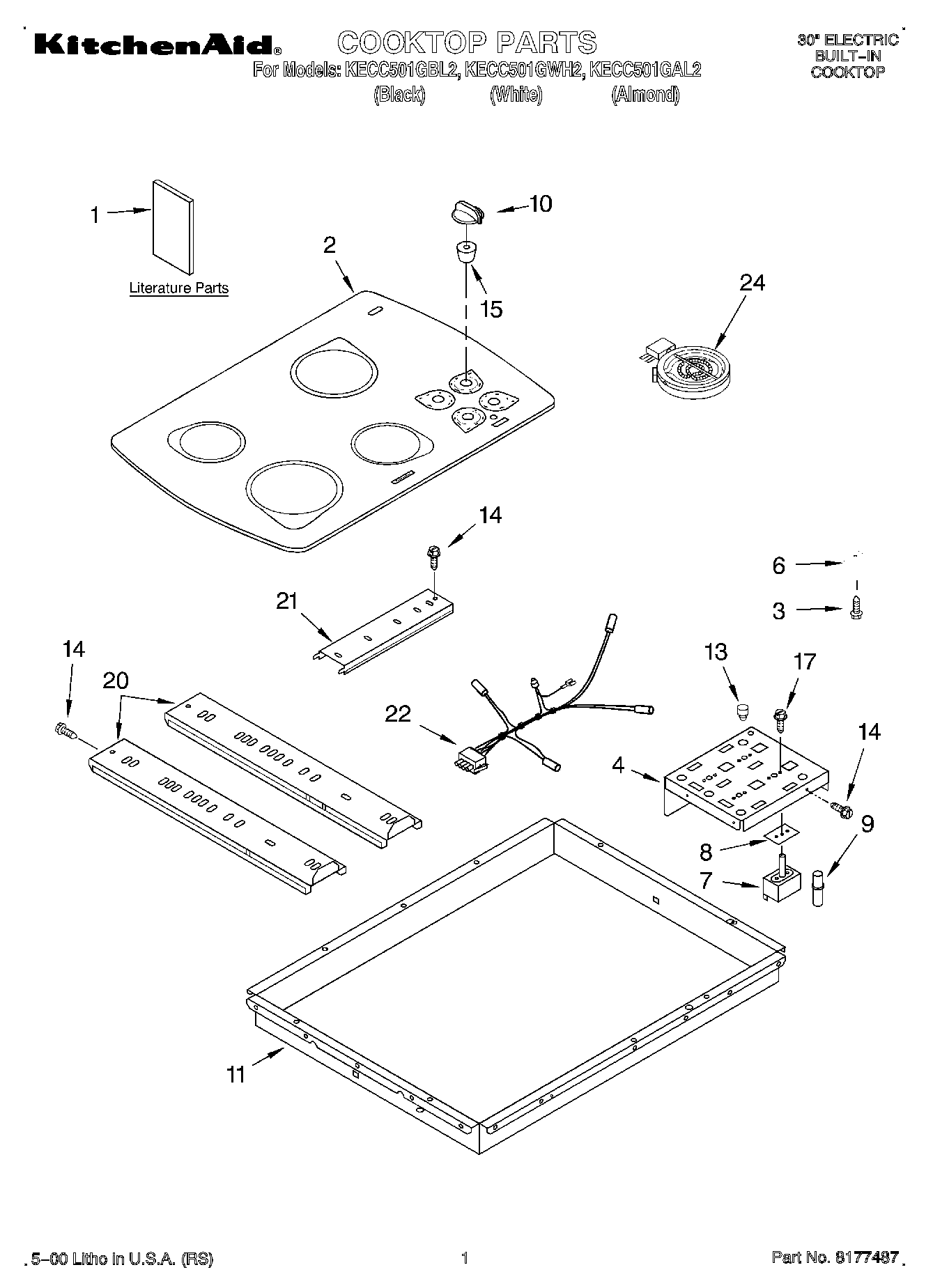

KECC501GAL2 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1WPL LIT3191793
2Cooktop, Glass (White)
2Cooktop, Glass (Almond)
2Cooktop, Glass (Black)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
6Spring, Locator
7WP3191050 Whirlpool Infinite Switch
7WP4454541 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10Knobs, Control (4) (Almond)
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FF Whirlpool Knob
11Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
244455364 Whirlpool Oven Support Bracket
24WPL 3192220
24WPL 3192737
241
24Wire, 25“ Roll (White 14 GA.)
24WPL 3191239
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24WP3400015 Whirlpool Screw
2416515 Whirlpool Clip
24242831 Whirlpool Oven Wire
243183956 Whirlpool Oven Seal Switch
24W10823699 Whirlpool Right Front Surface Element
2418 Ga. 80~c Rating (Red)
24Wire (12 Ga. 150 c Black)
24W10823698 Whirlpool Surface Element Right Rear
24Wire (14 Ga. 150 c Yellow)
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823696 Whirlpool Radiant Surface Element
24Bracket, Support (2)
24Hardware Asm.
24Wire (14 Ga. 200 c Brown)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24WPL 4455271
