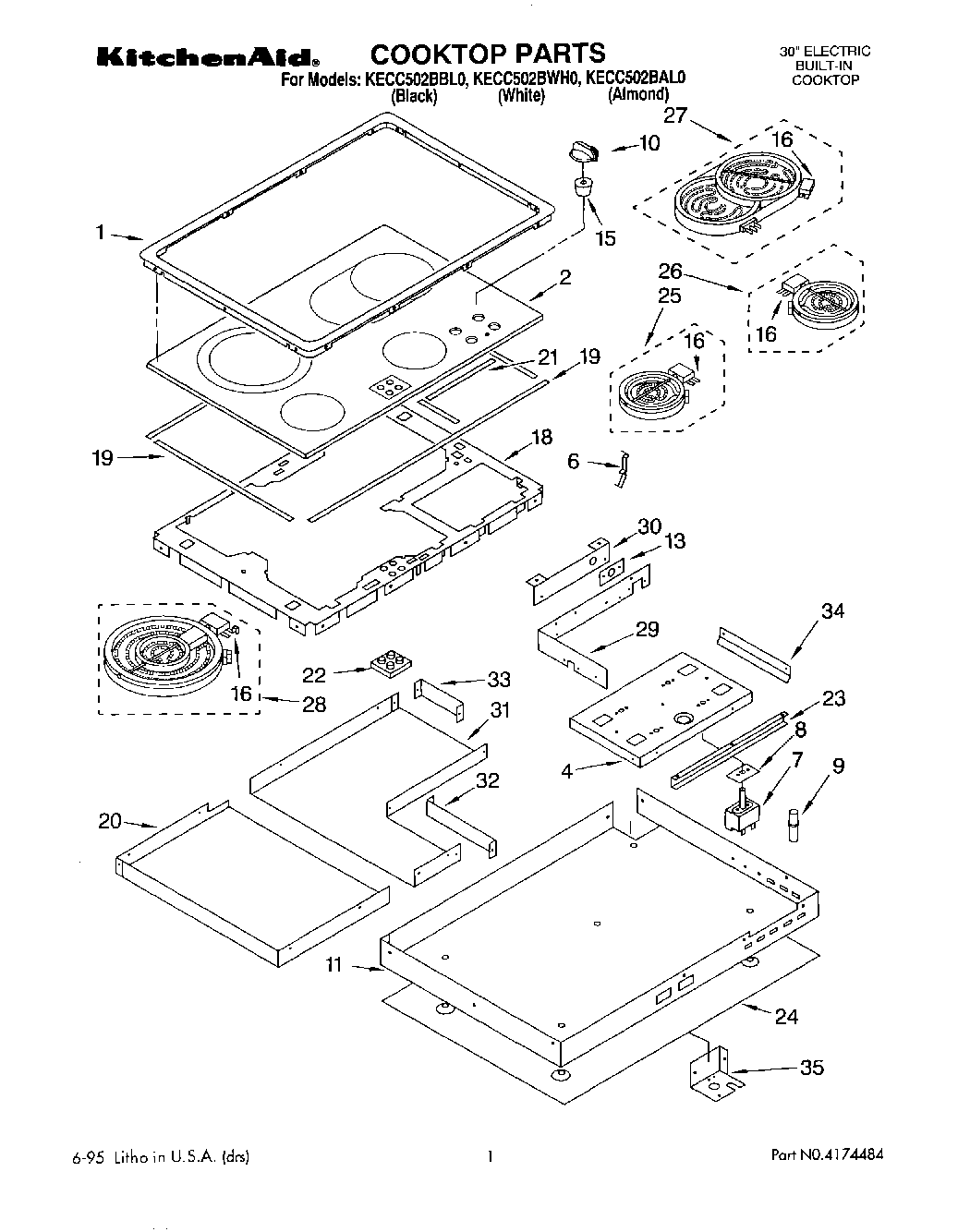

KECC502BBL0 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (Almond)
1	Trim Ring, Cooktop (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Almond)
4	Bracket, Switch Mounting
6	Spring Locator (8)
6	WP486754 Whirlpool Compactor Screw
7	Switch, Infinite (Use W/1400W Right Front Burner)
7	W10900107 Whirlpool Oven Surface Element Switch
7	8203534 Whirlpool Oven Top Burner Infinite Switch
8	WP486579 Whirlpool Air Conditioner Screw
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP9750372FF Whirlpool Knob
10	Knobs, Control (4) (Almond)
10	WP9750372FW Whirlpool Knob Assembly
11	Box, Burner
13	Grommet
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3187119 Element)
16	Switch, Limiter (Use W/3187188 Element)
16	Switch, Limiter (Use W/4454438 Element)
16	Switch, Limiter (Use W/4454439 Element)
18	Plate, Backer
19	Seal, Silicone (Front & Back (2))
19	Seal, Silicone (Sides (2))
20	Shield, Heat
21	Seal, Silicone (Controls (2))
22	Vent, Lower Trim (Screw (2))
22	Lamp, Hot Surface Indicator
23	Bracket, Stiffening
24	Shield, Heat
25	1200W Left Front
26	Element, Surface (1400W Left Rear)
27	2200/1400W Right Rear
28	W10823694 Whirlpool Surface Element
29	WPL 3188844
30	WPL 3189174
31	WPL 3188102
32	WPL 3188158
33	WPL 3189159
34	WPL 3189036
34	Screw (6)
35	WPL 3189273
