KECC502BWH2 01 – SECTION

KECC502BWH2 01 – SECTION

Written by

in

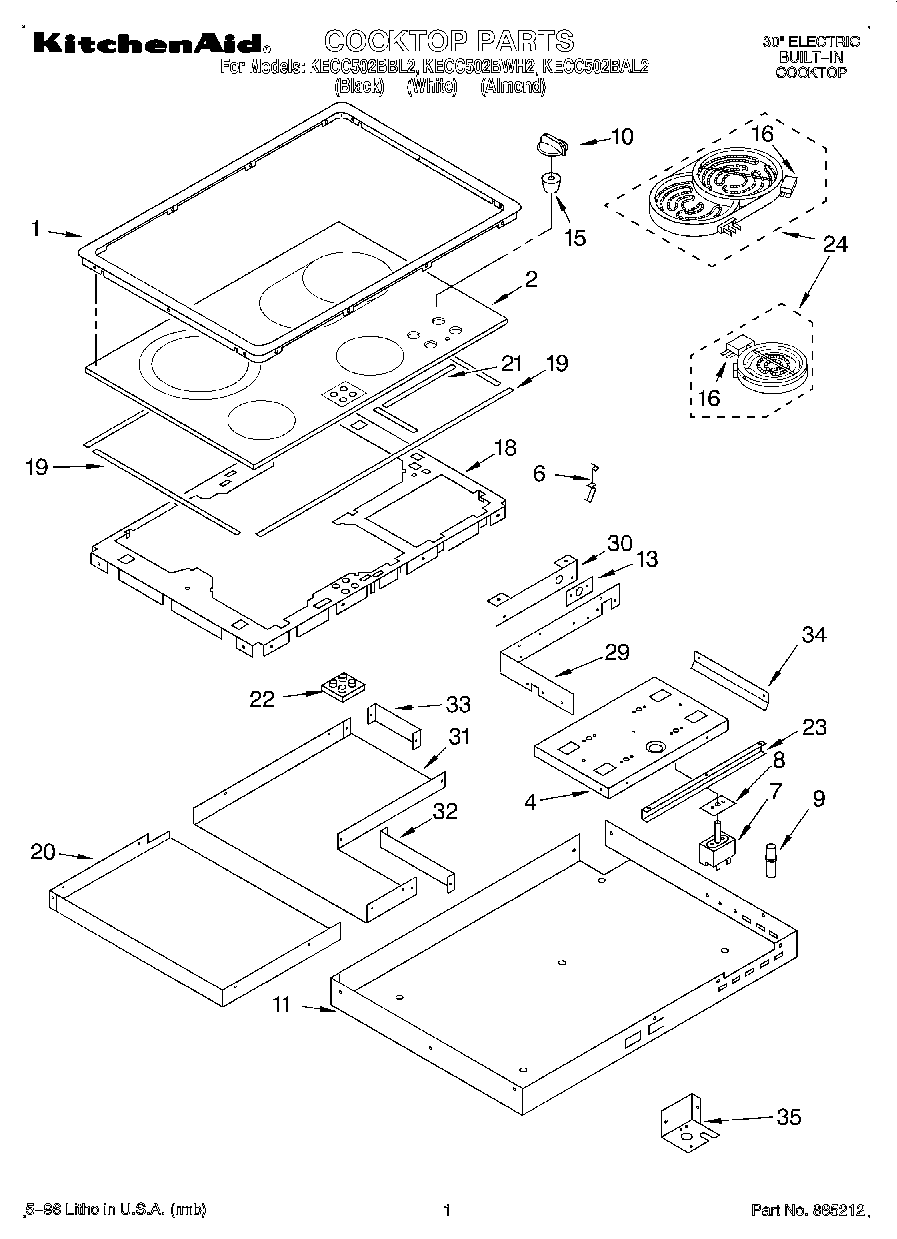

KECC502BWH2 01 – SECTION

Products

PositionProduct
WPL ARI83794A1
1Trim Ring, Cooktop (White)
1Trim Ring, Cooktop (Black)
1Trim Ring, Cooktop (Almond)
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Almond)
4Bracket, Switch Mounting
6WP486754 Whirlpool Compactor Screw
6Spring, Locator (8)
78203534 Whirlpool Oven Top Burner Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
8WP486579 Whirlpool Air Conditioner Screw
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10Knobs, Control (4) (Almond)
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FF Whirlpool Knob
11Box, Burner
13Grommet
15Seal, Inifinite Switch
16Switch, Limiter (Use W/3189901 Element)
16Limiter, Temp. (1400 W – LR)
16Limiter, Temp (2400W – LF)
16Switch, Limiter (Use W/3189893 Element)
18Plate, Backer
19Seal, Silicone (Sides (2))
19Seal, Silicone (Front & Back (2))
20Shield, Heat
21Seal, Silicone (Controls (2))
22Lamp, Hot Surface Indicator
22Vent, Lower Trim (Screw (2))
23Bracket, Stiffening
24Element, Surface (6“ L.R. 1400W)
24W10823694 Whirlpool Surface Element
24W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
24WPL 3189901
29WPL 3188844
30WPL 3189174
31WPL 3188102
32WPL 3188158
33WPL 3189159
34WPL 3189036
34Screw (6)
35WPL 3189273
