KECC502GAL0 01 – SECTION

KECC502GAL0 01 – SECTION

Written by

in

KECC502GAL0 01 – SECTION

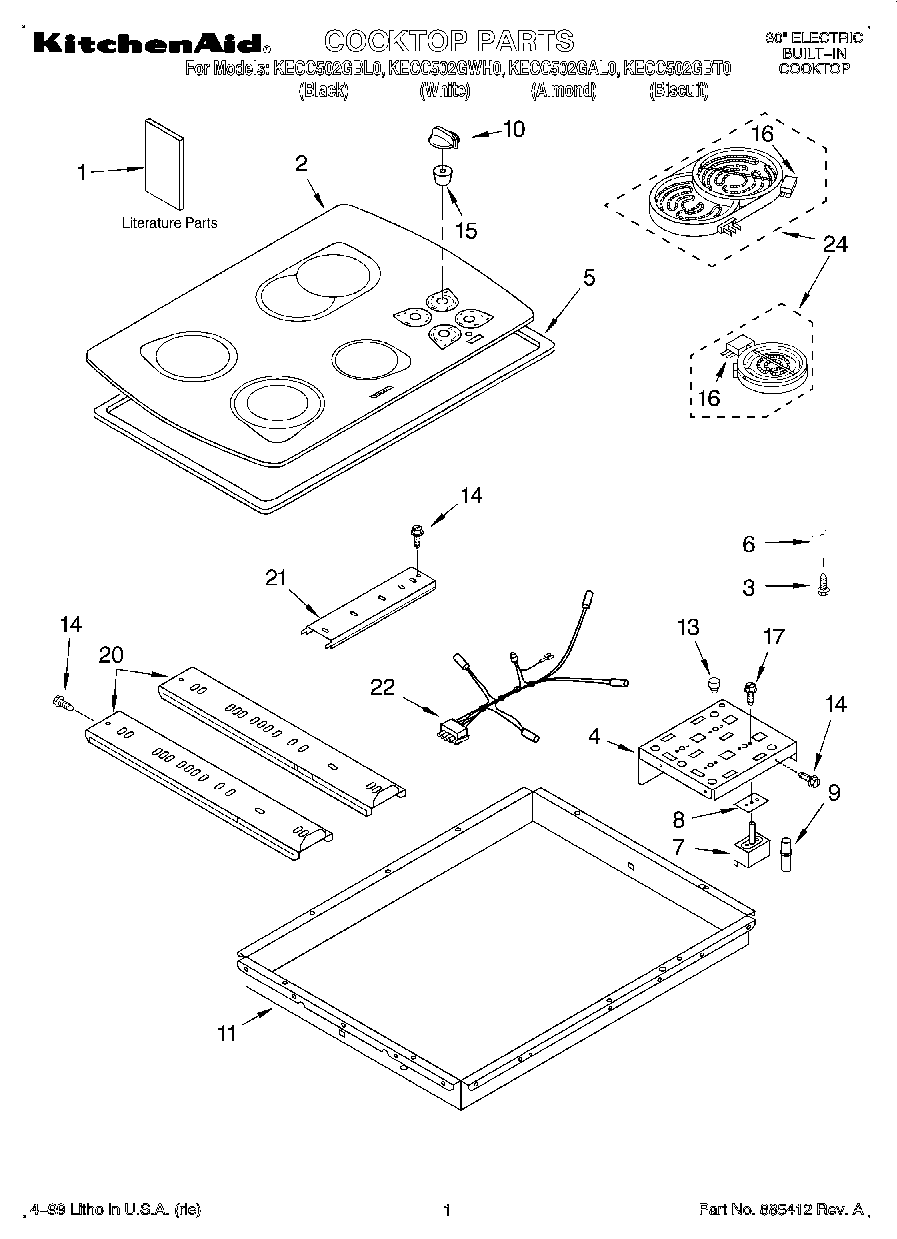

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Almond)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5Seal, Burner Box
6Spring, Locator
78203534 Whirlpool Oven Top Burner Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP9750372FF Whirlpool Knob
10WP9750372FC Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
10Knobs, Control (4) (Almond)
11Box, Burner
13Bumper, Rubber (Black (2.75 Dia.))
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
16Switch, Limiter (Use W/3191981 Element)
16Switch, Limiter (Use W/3191984 Element)
16Limiter, Temp. (LF)
16Switch, Limiter (Use W/3191720 Element)
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24Element, Surface (Includes No. 16) (1500W Left Rear)
24WPL 3191720
24WPL 3192264
24Wire, 25` Roll (Black 14 Ga.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25“ Roll (White 14 GA.)
24WA906B Whirlpool Cooktop Glass Scraper
24Element, Surface (Includes No. 16) (1200W Right Front)
241
24Wire (14 Ga. 200 c Brown)
2418 Ga. 80~c Rating (Red)
24W10823692 Whirlpool Dual Radiant Element
24Wire (12 Ga. 150 c Black)
24Hardware Asm.
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24242831 Whirlpool Oven Wire
24W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
24WPL 3192220
