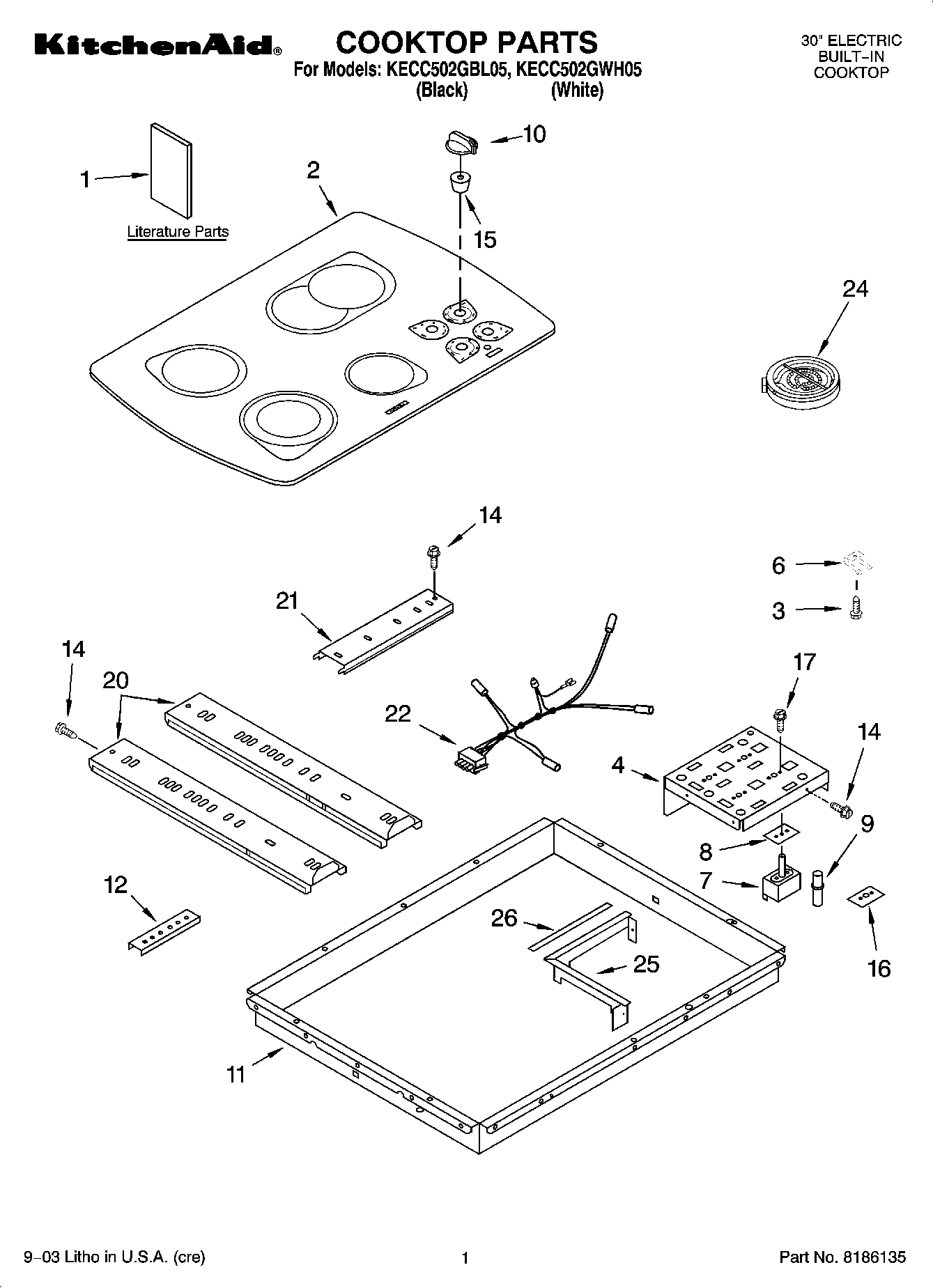

KECC502GBL05 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

KECC502GBL05 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Written by

in

KECC502GBL05 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI83797A5
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Bracket, Support (2)
Hardware Asm.
WPL 4456028
WPL 4456512
WPL 4456763
WPL ARI83798A1
WPL ARI83795A4
WPL ARI83796A3
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire, 25“ Roll (White 14 GA.)
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
1Literature Parts (Energuide Label)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1Safer Cooking Tips
2Cooktop, Glass (White)
2Cooktop, Glass (Black)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
6Spring, Locator
7WP3191049 Infinite Switch Left Rear Right Front
7WP4456027 Whirlpool Infinite Switch Right Rear
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP9750372FF Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
11Box, Burner
12WP3400093 Whirlpool Screw
128186533 Whirlpool Hardware
14WP3196557 Whirlpool Screw
168285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823699 Whirlpool Right Front Surface Element
24W10823692 Whirlpool Dual Radiant Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823730 Whirlpool Surface Element
25Shield-Heat, Control
26WPL 3191839
26W10491984 Whirlpool Switch Seal
26WPL 3192737
