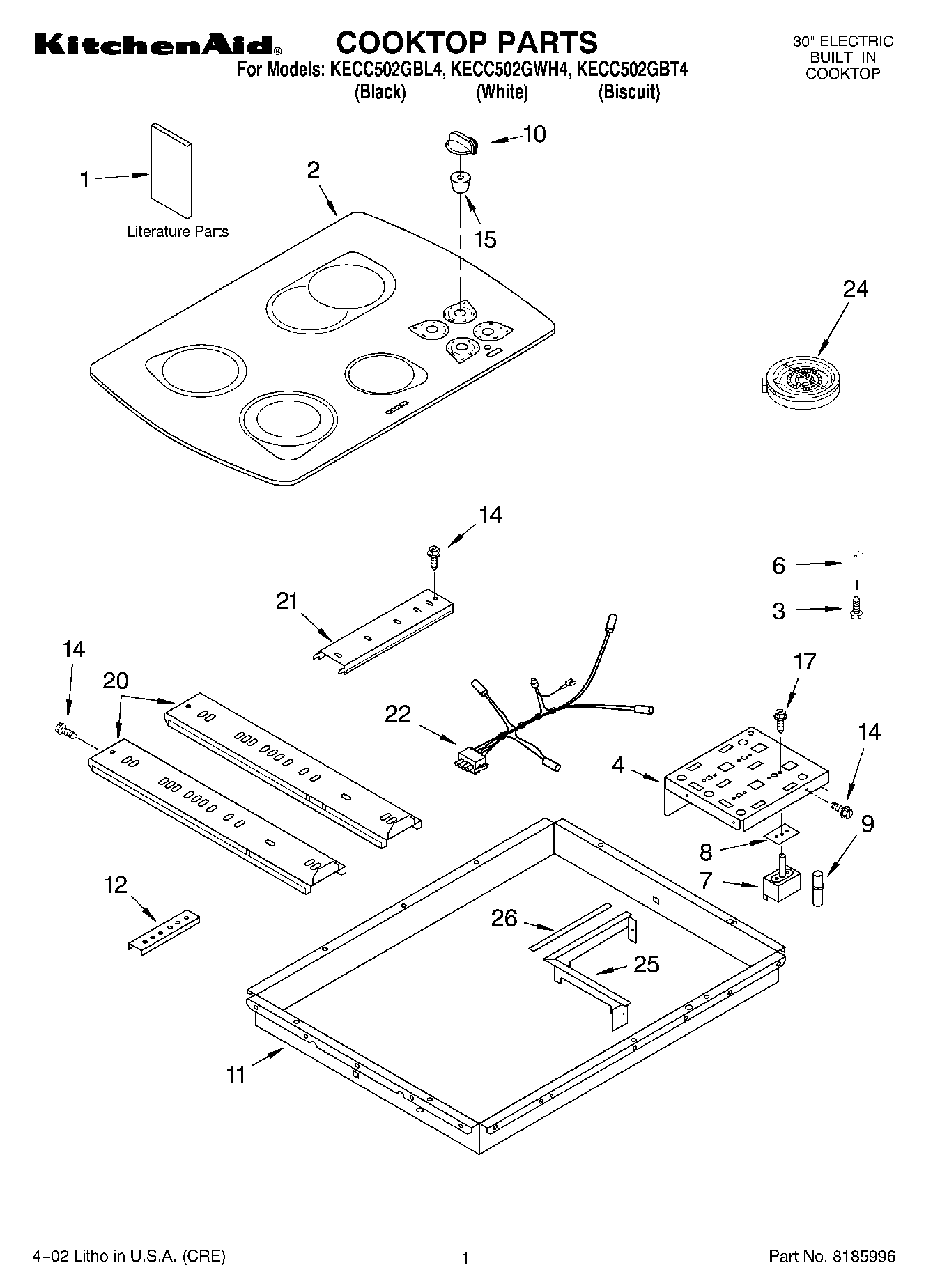

KECC502GBL4 01 – SECTION

KECC502GBL4 01 – SECTION

Written by

in

KECC502GBL4 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Energuide Label)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (White)
2Cooktop, Glass (Honeycomb)
2Cooktop, Glass (Black)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
6Spring, Locator
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP9750372FF Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FC Whirlpool Knob
11Box, Burner
128186533 Whirlpool Hardware
12WP3400093 Whirlpool Screw
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823699 Whirlpool Right Front Surface Element
24Element, Surface (1000/1800W – RR)
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823692 Whirlpool Dual Radiant Element
25Shield-Heat, Control
26WPL 3192737
26WPL 4456019
26WPL 4456064
26WPL 4456028
264455364 Whirlpool Oven Support Bracket
26WPL 3191839
261
26Wire, 25` Roll (Black 14 Ga.)
26Wire, 25“ Roll (White 14 GA.)
26W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
26W10491984 Whirlpool Switch Seal
26242831 Whirlpool Oven Wire
26Wire (14 Ga. 150 c Brown)
26Wire (14 Ga. 150 c Green)
26Wire (14 Ga. 150 c Orange)
26Wire (14 Ga. 150 c Yellow)
26Wire (12 Ga. 150 c Black)
2618 Ga. 80~c Rating (Red)
26Wire (14 Ga. 200 c Brown)
26Wire, 25` Roll (Red 14 Ga.)
26Bracket, Support (2)
26Hardware Asm.
26WP3400015 Whirlpool Screw
