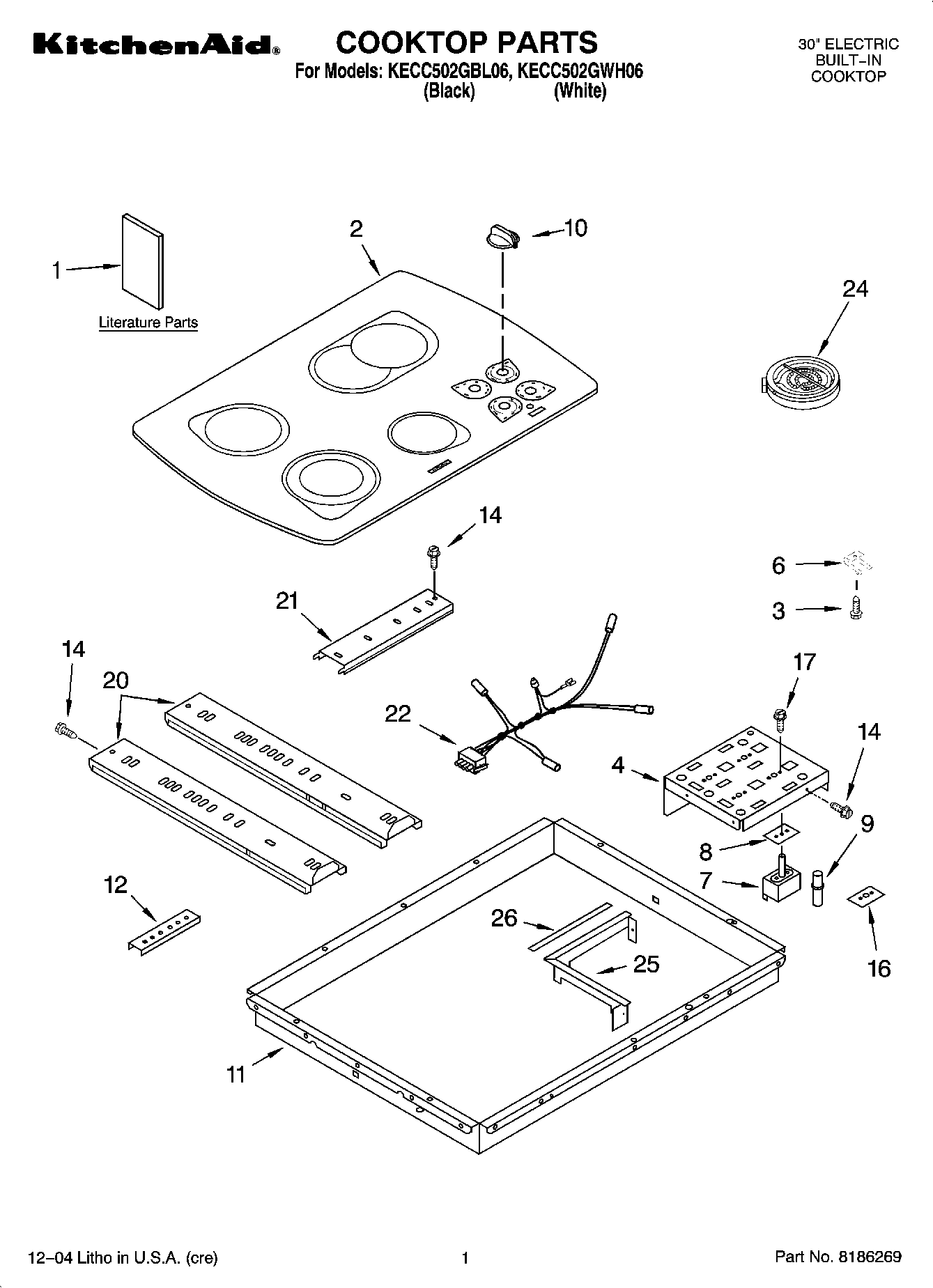

KECC502GWH06 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI83809A4
	WPL ARI83807A8
	WPL 4456763
	WPL 4456512
	Bracket, Support (2)
	Hardware Asm.
	WPL 4456028
	Wire (14 Ga. 150 c Orange)
	WPL ARI83810A1
	Wire (14 Ga. 150 c Brown)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	WPL ARI83808A7
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
1	Safe Cooking Tips
1	Wiring Diagram
1	Energuide Label
1	Installation Instructions
1	Use & Care Guide
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
6	9759094 Whirlpool Spring
7	WP3191049 Infinite Switch Left Rear Right Front
7	WP4456027 Whirlpool Infinite Switch Right Rear
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP9750372FF Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
11	Box, Burner
12	8186533 Whirlpool Hardware
12	WP3400093 Whirlpool Screw
14	WP3196557 Whirlpool Screw
16	8285469 Whirlpool Oven Seal Switch
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	W10823692 Whirlpool Dual Radiant Element
24	W10823730 Whirlpool Surface Element
24	W10823699 Whirlpool Right Front Surface Element
24	W10823711 Whirlpool Surface Element Left Front and Right Rear
25	Shield-Heat, Control
26	W10491984 Whirlpool Switch Seal
26	WPL 3191839
26	WPL 3192737
