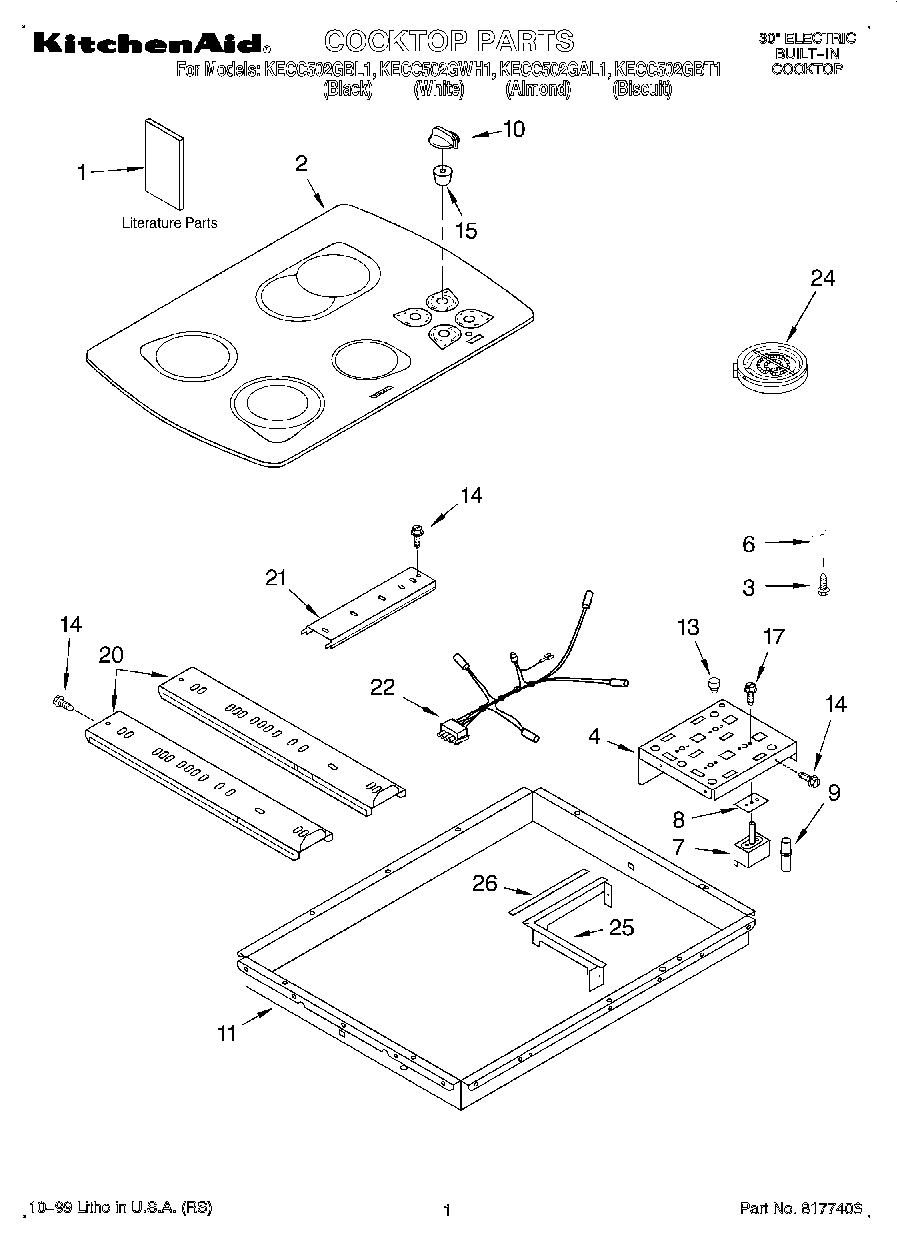

KECC502GWH1 01 – SECTION

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
2Cooktop, Glass (White)
2Cooktop, Glass (Honeycomb)
2Cooktop, Glass (Black)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
6Spring, Locator
7WP3191049 Infinite Switch Left Rear Right Front
78203534 Whirlpool Oven Top Burner Infinite Switch
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10Knobs, Control (4) (Almond)
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
11Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823699 Whirlpool Right Front Surface Element
24Element, Surface (1000/1800W – RR)
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24W10823692 Whirlpool Dual Radiant Element
25Shield-Heat, Control
26WPL 3191839
26WPL 3192220
26WA906B Whirlpool Cooktop Glass Scraper
26WPL 4454692
26Wire, 25` Roll (Black 14 Ga.)
26Wire, 25` Roll (Red 14 Ga.)
26Wire, 25“ Roll (White 14 GA.)
26Wire (14 Ga. 200 c Brown)
2618 Ga. 80~c Rating (Red)
26Wire (12 Ga. 150 c Black)
26Hardware Asm.
26Wire (14 Ga. 150 c Yellow)
26Wire (14 Ga. 150 c Orange)
261
26Wire (14 Ga. 150 c Green)
26Wire (14 Ga. 150 c Brown)
26242831 Whirlpool Oven Wire
26W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
26WPL 4455272
