KECC505KSS02 01 – COOKTOP PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 4456761
WPL 3191239
WPL 4456512
WPL 4456028
Hardware Asm.
WPL ARI83812A9
WPL ARI83813A4
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
Bracket, Support (2)
WPL ARI83815A7
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI83814A7
242831 Whirlpool Oven Wire
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Energuide Label)
1Literature Parts (Wiring Diagram)

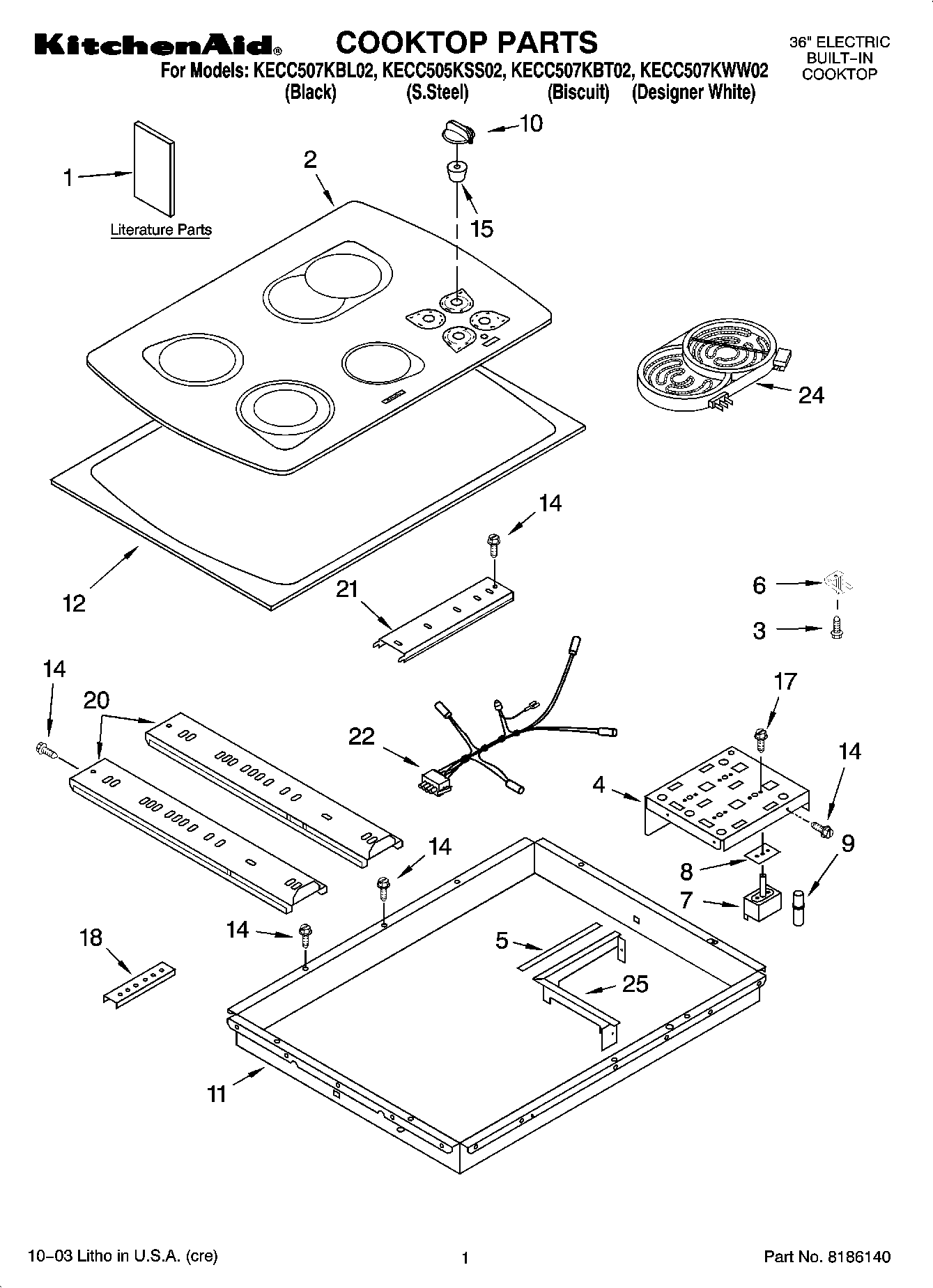

1COOKTOP PARTS
1Safer Cooking Tips
2Cooktop, Glass (S.Steel)
2Cooktop, Glass (Black)
2Cooktop, Glass (Biscuit)
2Cooktop, Glass (Designer White)
4Bracket, Switch Mounting
5WPL 3191839
6Spring, Locator
6WP486754 Whirlpool Compactor Screw
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
9Light, Indicator
10WP9750372FC Whirlpool Knob
10WP9750372FF Whirlpool Knob
10WP9750372FW Whirlpool Knob Assembly
11Box, Burner
12Frame, Cooktop (S.Steel model only)
14WP3196557 Whirlpool Screw
158285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
18WP3400093 Whirlpool Screw
188186533 Whirlpool Hardware
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
24W10823730 Whirlpool Surface Element
24W10823692 Whirlpool Dual Radiant Element
24W10823699 Whirlpool Right Front Surface Element
24WPL 3192737
24W10491984 Whirlpool Switch Seal
24Element, Surface (1200W – RF)
25Shield-Heat, Control
