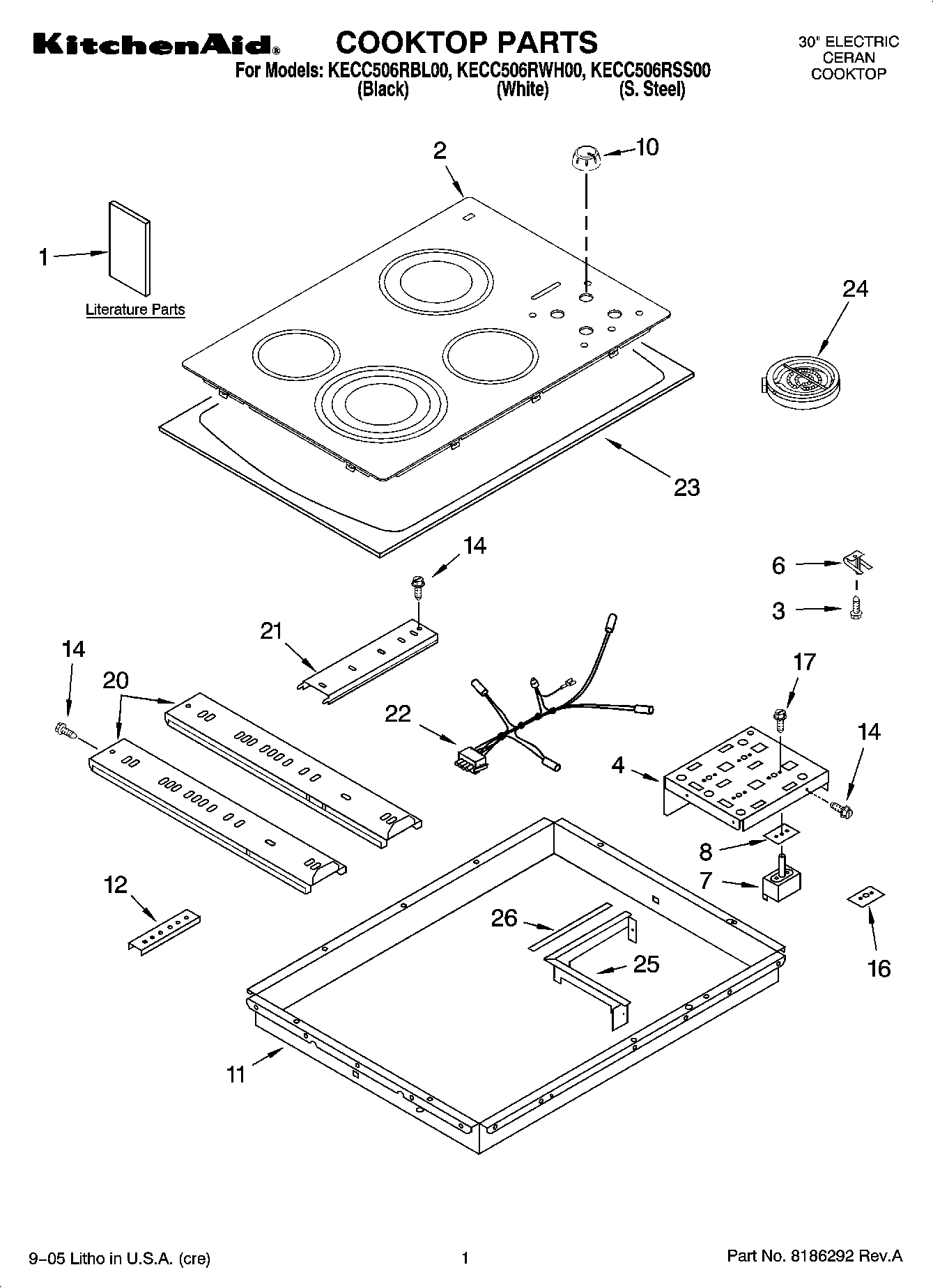

KECC506RBL00 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC506RBL00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC506RBL00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
Hardware Asm.
WPL ARI83820A2
WPL ARI83819A1
Bracket, Support (2)
WPL ARI83818A1
WPL ARI83817A8
WPL ARI83816A7
WPL 8285985
WPL 8285798
Wire (14 Ga. 150 c Yellow)
WPL 4456028
Wire, 25“ Roll (White 14 GA.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Wiring Diagram
1Safe Cooking Tips (French)
1Energy Guide Lbl
2W10322778 Whirlpool Cooktop
2W10140987 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
69759094 Whirlpool Spring
7WP3191049 Infinite Switch Left Rear Right Front
7WP8286070 Whirlpool Infinite Switch Left Front
7WP4456027 Whirlpool Infinite Switch Right Rear
83183956 Whirlpool Oven Seal Switch
10Knob, Control (4) (Cashmere Metal)
10WP8286096BL Whirlpool Knob
108286096WH Whirlpool Knob
11Box, Burner
12WP3400093 Whirlpool Screw
128186533 Whirlpool Hardware
14WP3196557 Whirlpool Screw
168285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Frame, Cooktop (S.Steel Mdl Only)
24W10823699 Whirlpool Right Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24Element, Surface (2500/1800/900W LF)
24ELEMENT, SURFACE 2000/1000W RR
25Shield-Heat, Control
26W10491984 Whirlpool Switch Seal
26WPL 3191839
