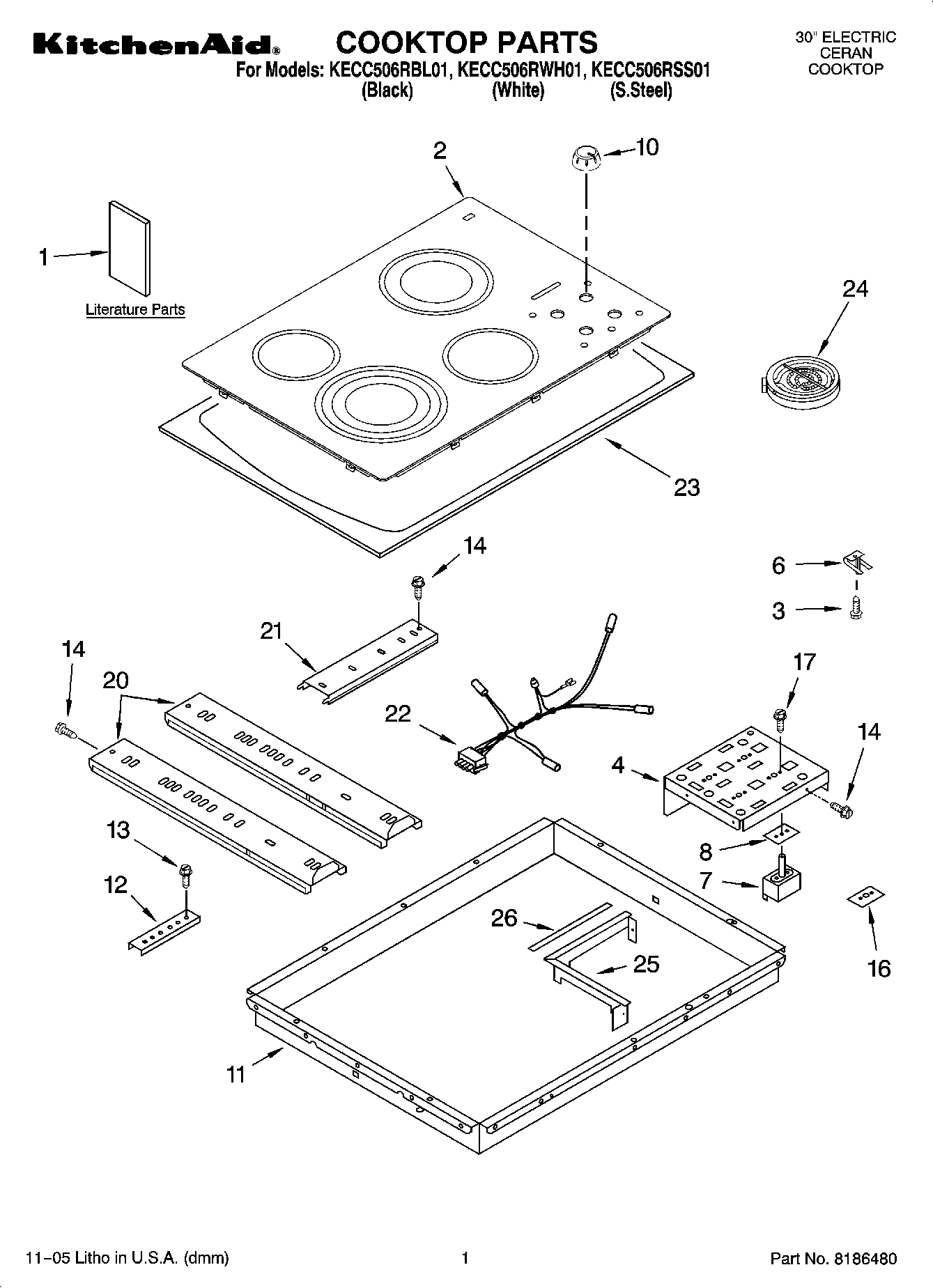

KECC506RBL01 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
WPL ARI83821A9
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 8286421
WPL 8286417
Hardware Asm.
WPL 4456028
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WP3400015 Whirlpool Screw
WPL ARI83825A6
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WPL ARI83824A3
WPL ARI83823A2
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI83822A9
Bracket, Support (2)
1Use & Care Guide
1Energy Guide Lbl
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Wiring Diagram
2W10140987 Whirlpool Cooktop
2W10322778 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
69759094 Whirlpool Spring
7WP8286070 Whirlpool Infinite Switch Left Front
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
108286096WH Whirlpool Knob
10WP8286096BL Whirlpool Knob
10Knob, Control (4) (Cashmere Metal)
11Box, Burner
128186533 Whirlpool Hardware
13WP3400093 Whirlpool Screw
14WP3196557 Whirlpool Screw
168285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Frame, Cooktop (S.Steel Mdl Only)
24ELEMENT, SURFACE 2000/1000W RR
24W10823699 Whirlpool Right Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24Element, Surface (2500/1800/900W LF)
25Shield-Heat, Control
26WPL 3191839
26W10491984 Whirlpool Switch Seal
