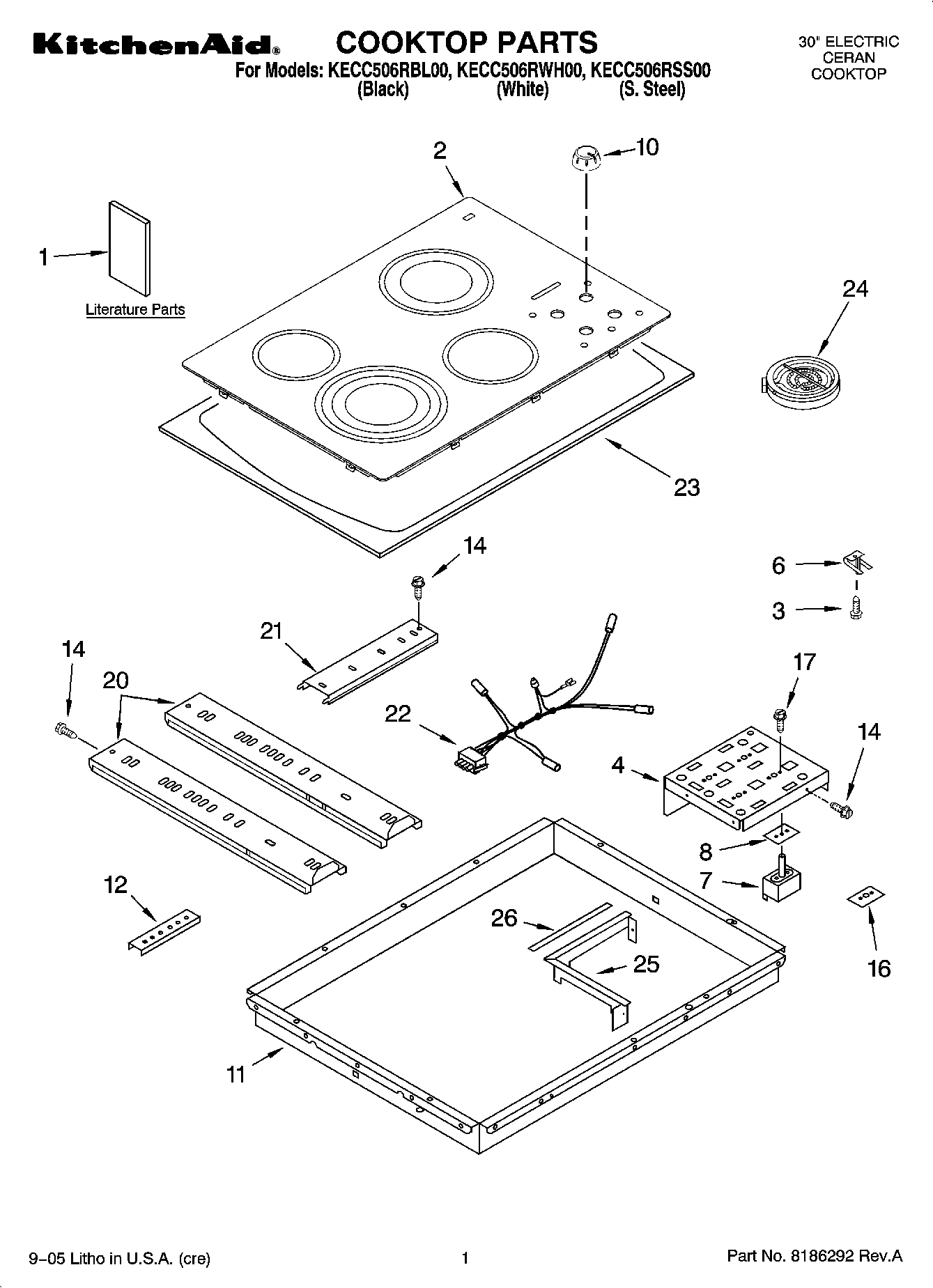

KECC506RSS00 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC506RSS00 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC506RSS00 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 8285798
Hardware Asm.
Bracket, Support (2)
WPL ARI83843A1
WPL 4456028
WPL 8285985
WPL ARI83839A5
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WPL ARI83841A1
Wire, 25“ Roll (White 14 GA.)
WPL ARI83842A8
WP3400015 Whirlpool Screw
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL ARI83840A5
242831 Whirlpool Oven Wire
1Energy Guide Lbl
1Wiring Diagram
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1Safe Cooking Tips (French)
2W10140987 Whirlpool Cooktop
2W10322778 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
69759094 Whirlpool Spring
7WP8286070 Whirlpool Infinite Switch Left Front
7WP4456027 Whirlpool Infinite Switch Right Rear
7WP3191049 Infinite Switch Left Rear Right Front
83183956 Whirlpool Oven Seal Switch
10Knob, Control (4) (Cashmere Metal)
10WP8286096BL Whirlpool Knob
108286096WH Whirlpool Knob
11Box, Burner
128186533 Whirlpool Hardware
12WP3400093 Whirlpool Screw
14WP3196557 Whirlpool Screw
168285469 Whirlpool Oven Seal Switch
17WP486579 Whirlpool Air Conditioner Screw
20Rail, Element (2)
21Rail, Element (1)
22Lamp, Hot Surface Indicator
23Frame, Cooktop (S.Steel Mdl Only)
24W10823699 Whirlpool Right Front Surface Element
24W10823711 Whirlpool Surface Element Left Front and Right Rear
24ELEMENT, SURFACE 2000/1000W RR
24Element, Surface (2500/1800/900W LF)
25Shield-Heat, Control
26W10491984 Whirlpool Switch Seal
26WPL 3191839
