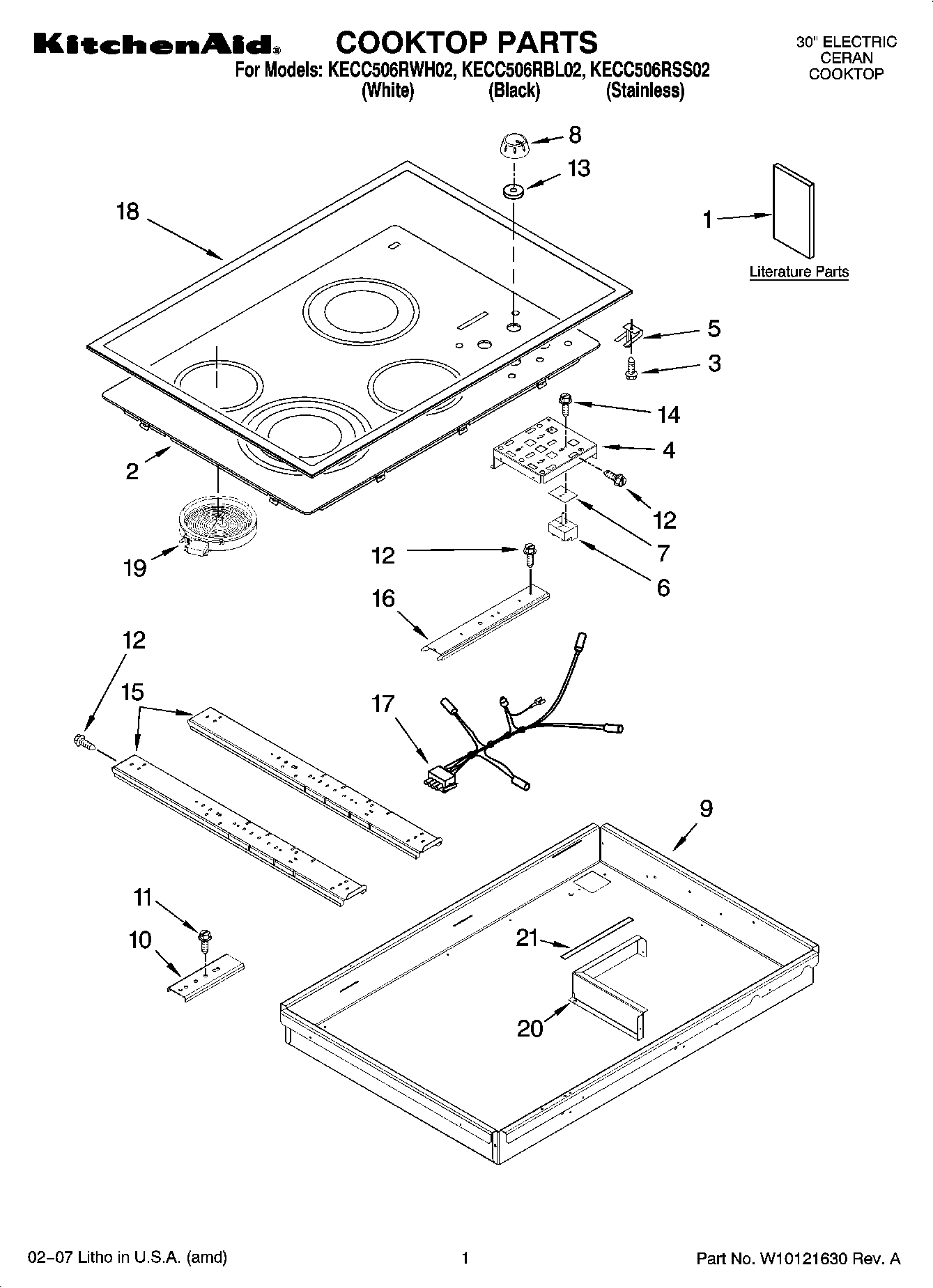

KECC506RSS02 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC506RSS02 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC506RSS02 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 4456028
Bracket, Support (2)
Hardware Asm.
WPL 8286421
WPL 8286417
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
WPL ARI83850A2
WPL ARI83851A8
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
WPL ARI83853A8
WPL ARI83852A3
WP3400015 Whirlpool Screw
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Wire, 25` Roll (Black 14 Ga.)
1Energy Guide Lbl
1Wiring Diagram
1Installation Instructions (Undercounter Oven)
1Use & Care Guide
1INSTALLATION INSTRUCTIONS
1LITERATURE PARTS
1Safe Cooking Tips (French)
1Safe Cooking Tips
2W10322778 Whirlpool Cooktop
2W10140987 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
59759094 Whirlpool Spring
6WP4456027 Whirlpool Infinite Switch Right Rear
6WP8286070 Whirlpool Infinite Switch Left Front
6WP3191049 Infinite Switch Left Rear Right Front
73183956 Whirlpool Oven Seal Switch
8Knob, Control (4) (Cashmere Metal)
8WP8286096BL Whirlpool Knob
88286096WH Whirlpool Knob
9Box, Burner
108186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12WP3196557 Whirlpool Screw
138285469 Whirlpool Oven Seal Switch
14WP486579 Whirlpool Air Conditioner Screw
15Rail, Element (3)
16Rail, Element (1)
17Lamp, Hot Surface Indicator
18Frame, Cooktop (S.Steel Mdl Only)
19Element, Surface (2500/1800/900W LF)
19W10823699 Whirlpool Right Front Surface Element
19W10823711 Whirlpool Surface Element Left Front and Right Rear
19ELEMENT, SURFACE 2000/1000W RR
20Shield-Heat, Control
21W10491984 Whirlpool Switch Seal
21WPL 3191839
