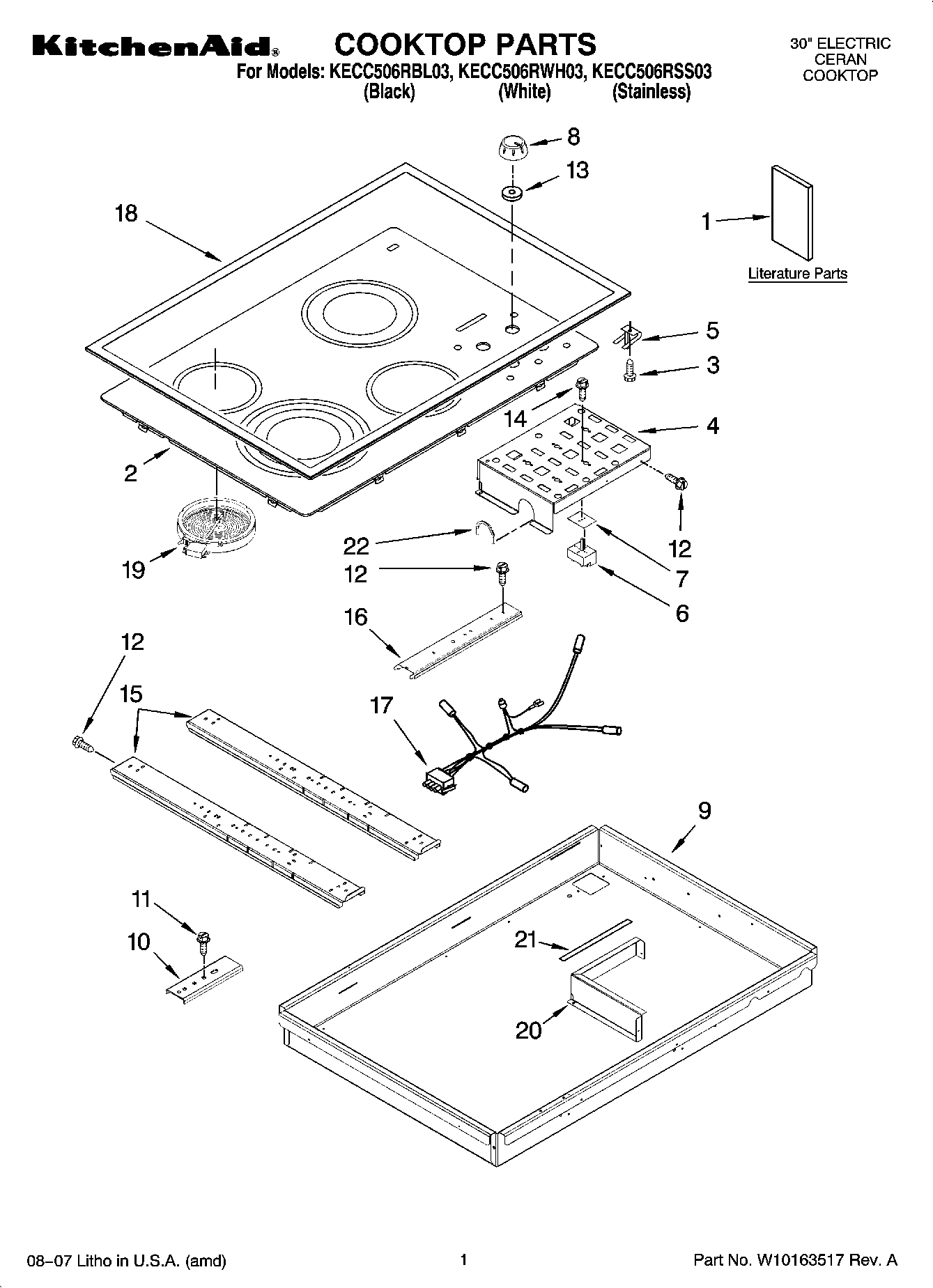

KECC506RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC506RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC506RSS03 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 8286421
WPL 8286417
WPL 4456028
242831 Whirlpool Oven Wire
WPL ARI83857A2
WPL ARI83856A5
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
WPL ARI83854A1
WPL ARI83855A9
1INSTALLATION INSTRUCTIONS
1Installation Instructions (Undercounter Oven)
1Use & Care Guide
1Energy Guide Lbl
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Wiring Diagram
2W10322778 Whirlpool Cooktop
2W10140987 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
59759094 Whirlpool Spring
6WP8286070 Whirlpool Infinite Switch Left Front
6WP3191049 Infinite Switch Left Rear Right Front
6WP4456027 Whirlpool Infinite Switch Right Rear
73183956 Whirlpool Oven Seal Switch
88286096WH Whirlpool Knob
8WP8286096BL Whirlpool Knob
8Knob, Control (4) (Cashmere Metal)
9Box, Burner
108186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12WP3196557 Whirlpool Screw
138285469 Whirlpool Oven Seal Switch
14WP486579 Whirlpool Air Conditioner Screw
15Rail, Element (3)
16Rail, Element (1)
17Lamp, Hot Surface Indicator
18Frame, Cooktop
19ELEMENT, SURFACE 2000/1000W RR
19Element, Surface (2500/1800/900W LF)
19W10823699 Whirlpool Right Front Surface Element
19W10823711 Whirlpool Surface Element Left Front and Right Rear
20Shield-Heat, Control
21WPL 3191839
21W10491984 Whirlpool Switch Seal
22GROMMET, FLEXIBLE
