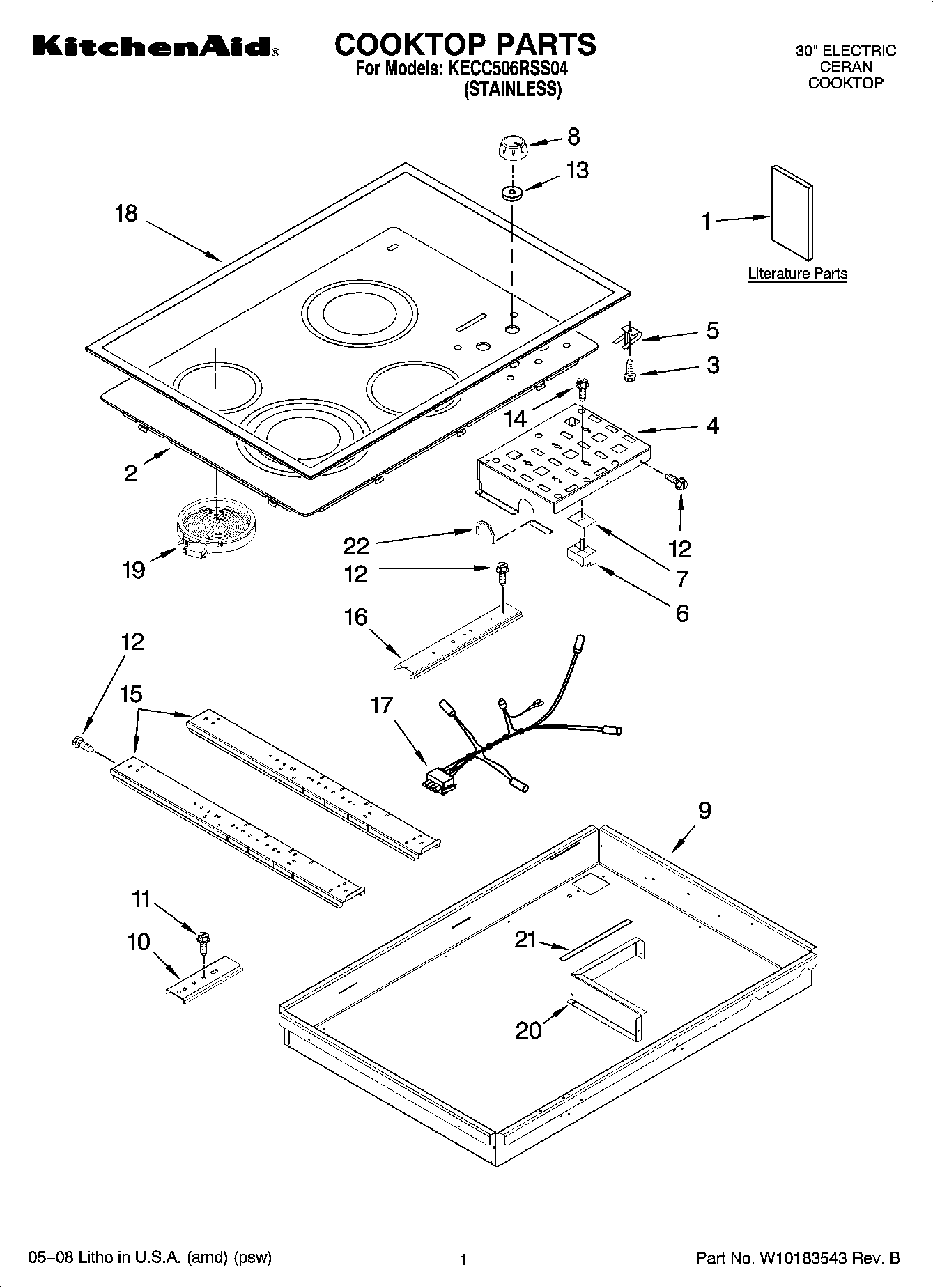

KECC506RSS04 01 – COOKTOP PARTS, OPTIONAL PARTS

KECC506RSS04 01 – COOKTOP PARTS, OPTIONAL PARTS

Written by

in

KECC506RSS04 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

PositionProduct
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 8286421
WPL 8286417
WPL ARI83860A6
WPL 4456028
242831 Whirlpool Oven Wire
Miscellaneous
WP3400015 Whirlpool Screw
WP8286642 Whirlpool Tape
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
SPLICING WIRES
1INSTALLATION INSTRUCTIONS
1Safer Cooking Tips (French)
1Use & Care Guide
1Wiring Diagram
1Installation Instructions (Undercounter Oven)
1SAFER COOKING TIPS (ENGLISH
2W10140987 Whirlpool Cooktop
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
59759094 Whirlpool Spring
6WP8286070 Whirlpool Infinite Switch Left Front
6WP3191049 Infinite Switch Left Rear Right Front
6WP4456027 Whirlpool Infinite Switch Right Rear
73183956 Whirlpool Oven Seal Switch
8WP8286096BL Whirlpool Knob
9Box, Burner
108186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12WP3196557 Whirlpool Screw
138285469 Whirlpool Oven Seal Switch
14WP486579 Whirlpool Air Conditioner Screw
15Rail, Element (3)
16Rail, Element (1)
17Lamp, Hot Surface Indicator
18Frame, Cooktop
19ELEMENT, SURFACE 2000/1000W RR
19W10823699 Whirlpool Right Front Surface Element
19W10823711 Whirlpool Surface Element Left Front and Right Rear
19Element, Surface (2500/1800/900W LF)
20Shield-Heat, Control
21WPL 3191839
21Seal
22GROMMET, FLEXIBLE
