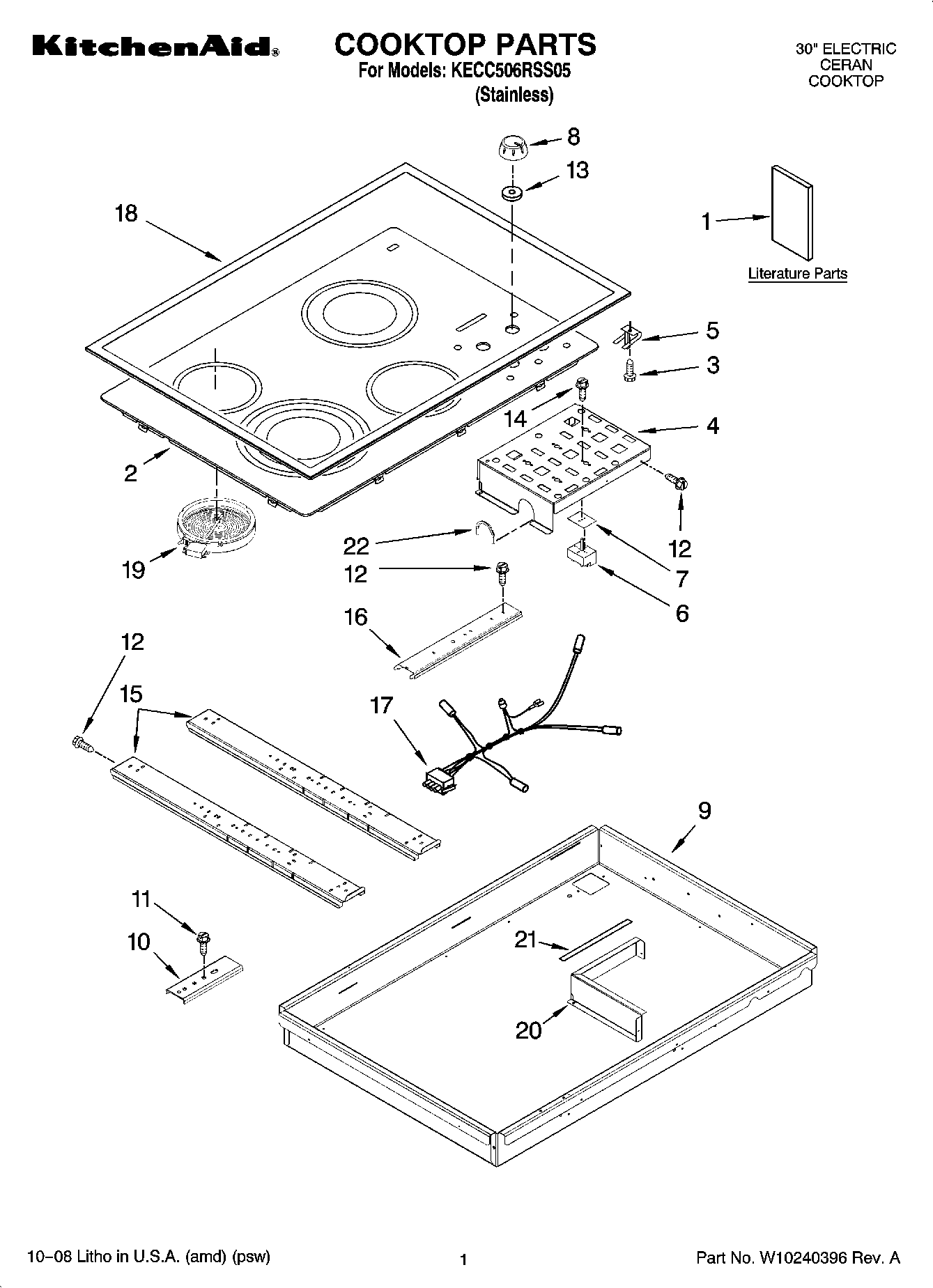

KECC506RSS05 01 – COOKTOP PARTS, OPTIONAL PARTS

Products

Position	Product
	WP8286642 Whirlpool Tape
	WP3400015 Whirlpool Screw
	WPL 8286421
	WIRING HARNESS PARTS
	Miscellaneous
	WPL 8286417
1	INSTALLATION INSTRUCTIONS
1	Installation Instructions (Undercounter Oven)
1	Use & Care Guide
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
1	Wiring Diagram
2	W10140987 Whirlpool Cooktop
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
5	9759094 Whirlpool Spring
6	WP4456027 Whirlpool Infinite Switch Right Rear
6	WP3191049 Infinite Switch Left Rear Right Front
6	WP8286070 Whirlpool Infinite Switch Left Front
7	3183956 Whirlpool Oven Seal Switch
8	WP8286096BL Whirlpool Knob
9	Box, Burner
10	8186533 Whirlpool Hardware
11	WP3400093 Whirlpool Screw
12	WP3196557 Whirlpool Screw
13	8285469 Whirlpool Oven Seal Switch
14	WP486579 Whirlpool Air Conditioner Screw
15	Rail, Element (3)
16	Rail, Element (1)
17	Lamp, Hot Surface Indicator
18	Frame, Cooktop
19	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	Element, Surface (2500/1800/900W LF)
19	W10823699 Whirlpool Right Front Surface Element
19	ELEMENT, SURFACE 2000/1000W RR
20	Shield-Heat, Control
21	WPL 3191839
21	Seal
22	GROMMET, FLEXIBLE
