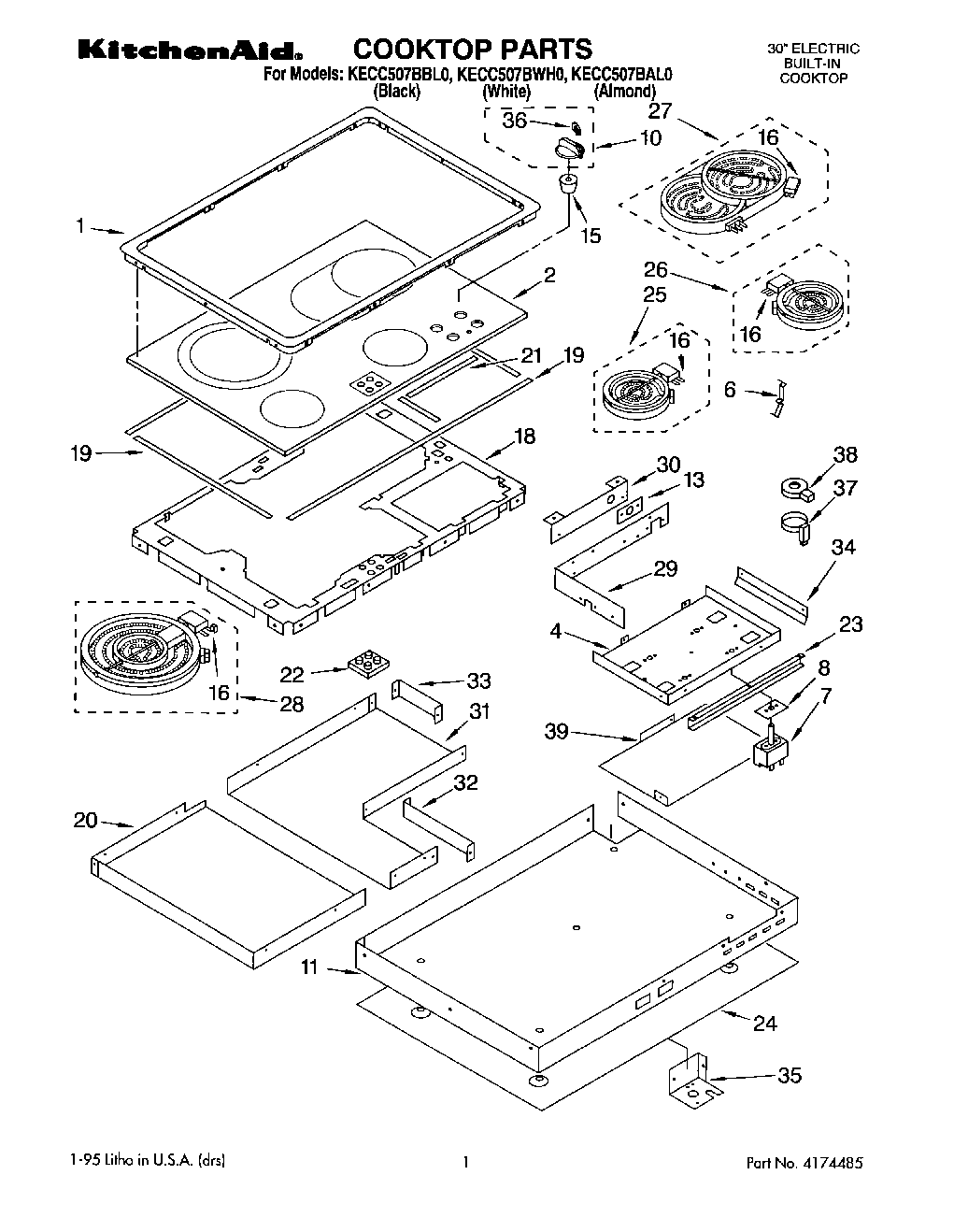

KECC507BAL0 01 – SECTION

KECC507BAL0 01 – SECTION

Written by

in

KECC507BAL0 01 – SECTION

Products

PositionProduct
1Trim Ring, Cooktop (Black)
1Trim Ring, Cooktop (Almond)
1Trim Ring, Cooktop (White)
2Cooktop, Glass (Black)
2Cooktop, Glass (Almond)
2Cooktop, Glass (White)
4Bracket, Switch Mounting
6Spring Locator (8)
6WP486754 Whirlpool Compactor Screw
7WP8203529 Whirlpool Infinite Switch
7W10900107 Whirlpool Oven Surface Element Switch
83183956 Whirlpool Oven Seal Switch
8WP486579 Whirlpool Air Conditioner Screw
10Knobs, Control (4) (Almond)
10WP9750372FW Whirlpool Knob Assembly
10WP9750372FF Whirlpool Knob
11Box, Burner
13Grommet
15Seal, Inifinite Switch
16Switch, Limiter (Use W/3188157 Element)
16Switch, Limiter (Use W/3187119 Element)
16Switch, Limiter (Use W/3187188 Element)
16Switch, Limiter (Use W/3188781 Element)
18Plate, Backer
19Seal, Silicone (Front & Back (2))
19Seal, Silicone (Sides (2))
20Shield, Heat
21Seal, Silicone (Controls (2))
22Lamp, Hot Surface Indicator
22Vent, Lower Trim (Screw (2))
23Bracket, Stiffening
24Shield, Heat
251200W Left Front
26Element 1500W Right Front
272200/1400W Right Rear
28W10823694 Whirlpool Surface Element
29WPL 3188844
30WPL 3189174
31WPL 3188102
32WPL 3188158
33WPL 3189159
34WPL 3189036
35WPL 3189273
36WPL 9751376
36WPL 9751377
37WPL 3188760
38WPL 3188761
39Screw (6)
39WPL 3188785
