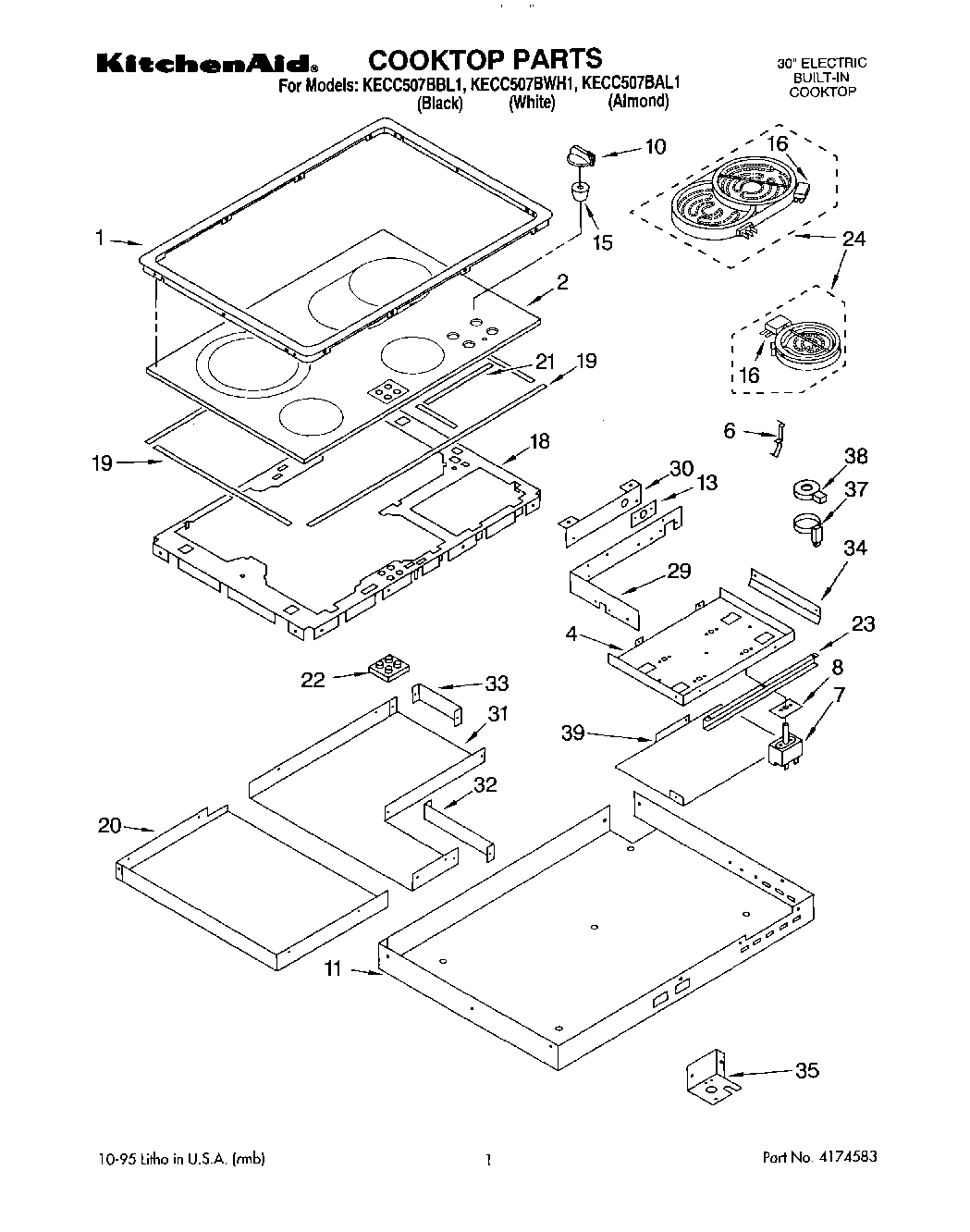

KECC507BAL1 01 – SECTION

Products

Position	Product
1	Trim Ring, Cooktop (White)
1	Trim Ring, Cooktop (Black)
1	Trim Ring, Cooktop (Almond)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
2	Cooktop, Glass (Almond)
4	Bracket, Switch Mounting
6	WP486754 Whirlpool Compactor Screw
6	Spring, Locator (8)
7	W10900107 Whirlpool Oven Surface Element Switch
7	WP8203529 Whirlpool Infinite Switch
8	3183956 Whirlpool Oven Seal Switch
8	WP486579 Whirlpool Air Conditioner Screw
10	WP9750372FF Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
10	Knobs, Control (4) (Almond)
11	Box, Burner
13	Grommet
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3189655 L.F. Element)
16	Switch, Limiter (Use W/3189901 Element)
16	Switch, Limiter (Use W/3189656 R.F. Element)
16	Limiter, Temp (2400W – LF)
18	Plate, Backer
19	Seal, Silicone (Front & Back (2))
19	Seal, Silicone (Sides (2))
20	Shield, Heat
21	Seal, Silicone (Controls (2))
22	Vent, Lower Trim (Screw (2))
22	Lamp, Hot Surface Indicator
23	Bracket, Stiffening
24	W10823694 Whirlpool Surface Element
24	Element, Surface (Includes No. 16) (1500W Right Front)
24	WPL 3189901
24	Element, Surface (Includes No. 16) (1200W Left Front)
29	WPL 3188844
30	WPL 3189174
31	WPL 3188102
32	WPL 3188158
33	WPL 3189159
34	WPL 3189036
35	WPL 3189273
37	WPL 3188760
38	WPL 3188761
39	Screw (6)
39	WPL 3188785
