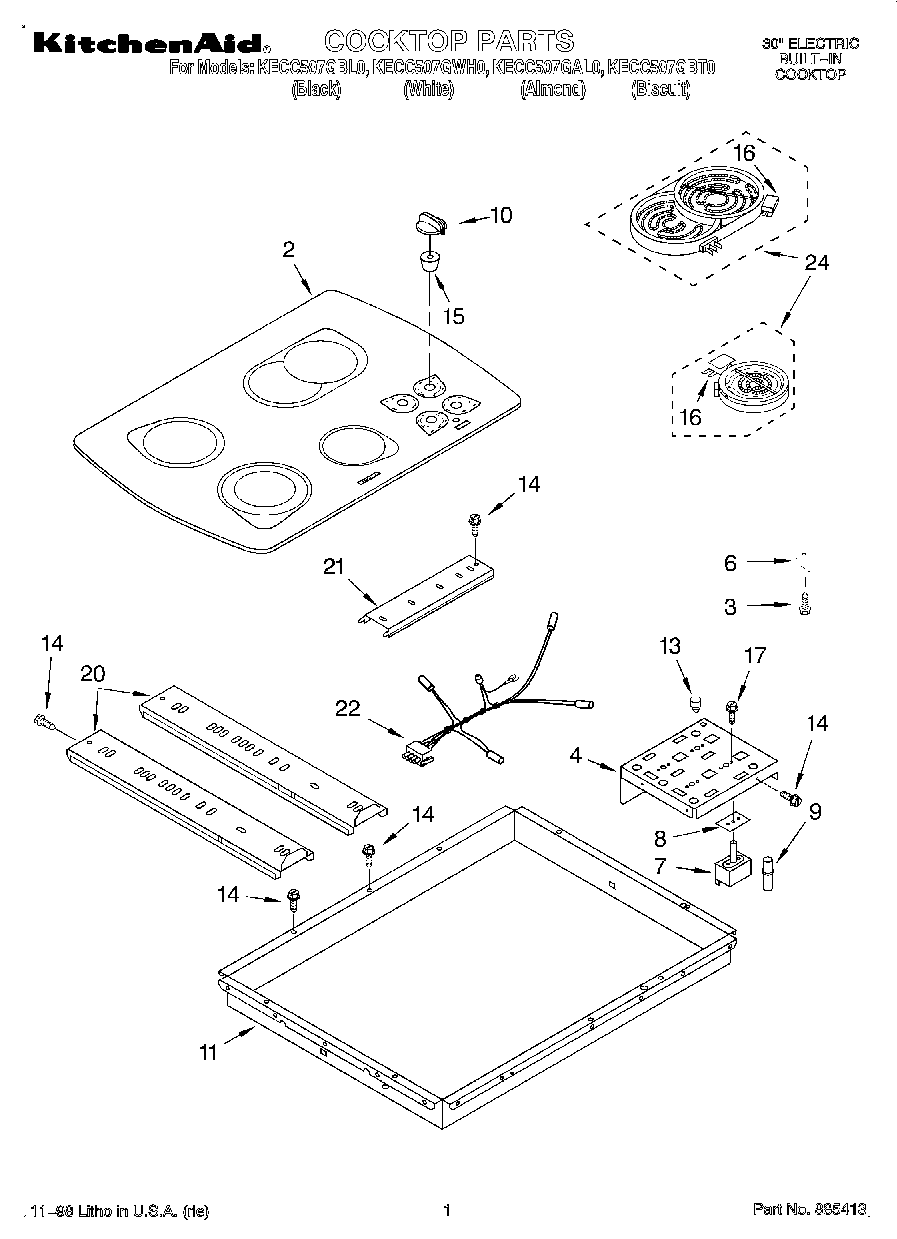

KECC507GBL0 01 – SECTION

Products

Position	Product
	WPL 3192265
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL LIT3191795
	Hardware Asm.
	Literature Parts (Use & Care Guide)
	Literature Parts (Installation Instructions)
	WPL 3192220
	Wire (14 Ga. 150 c Orange)
	WP3400015 Whirlpool Screw
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	Wire (14 Ga. 150 c Green)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
2	Cooktop, Glass (Almond/Biscuit)
2	Cooktop, Glass (White)
2	Cooktop, Glass (Black)
3	WP486754 Whirlpool Compactor Screw
4	Bracket, Switch Mounting
6	Spring, Locator
7	8203534 Whirlpool Oven Top Burner Infinite Switch
7	WP3191049 Infinite Switch Left Rear Right Front
8	3183956 Whirlpool Oven Seal Switch
9	Light, Indicator
10	WP9750372FF Whirlpool Knob
10	WP9750372FC Whirlpool Knob
10	WP9750372FW Whirlpool Knob Assembly
10	Knobs, Control (4) (Almond)
11	Box, Burner
13	Bumper, Rubber (Black (2.75 Dia.))
14	WP3196557 Whirlpool Screw
15	Seal, Inifinite Switch
16	Switch, Limiter (Use W/3192171 R.F. Element)
16	Switch, Limiter (Use W/3192172 L.R. Element)
16	Switch, Limiter (Use W/3191720 Element)
16	Limiter, Temp. (LF)
17	WP486579 Whirlpool Air Conditioner Screw
20	Rail, Element (2)
21	Rail, Element (1)
22	Lamp, Hot Surface Indicator
24	Element, Surface (Includes No. 16) (1200W Right Front)
24	W10823692 Whirlpool Dual Radiant Element
24	WPL 3191720
24	Element, Surface (Includes No. 16) (1500W Left Rear)
